Lösung:
Differenzkurs

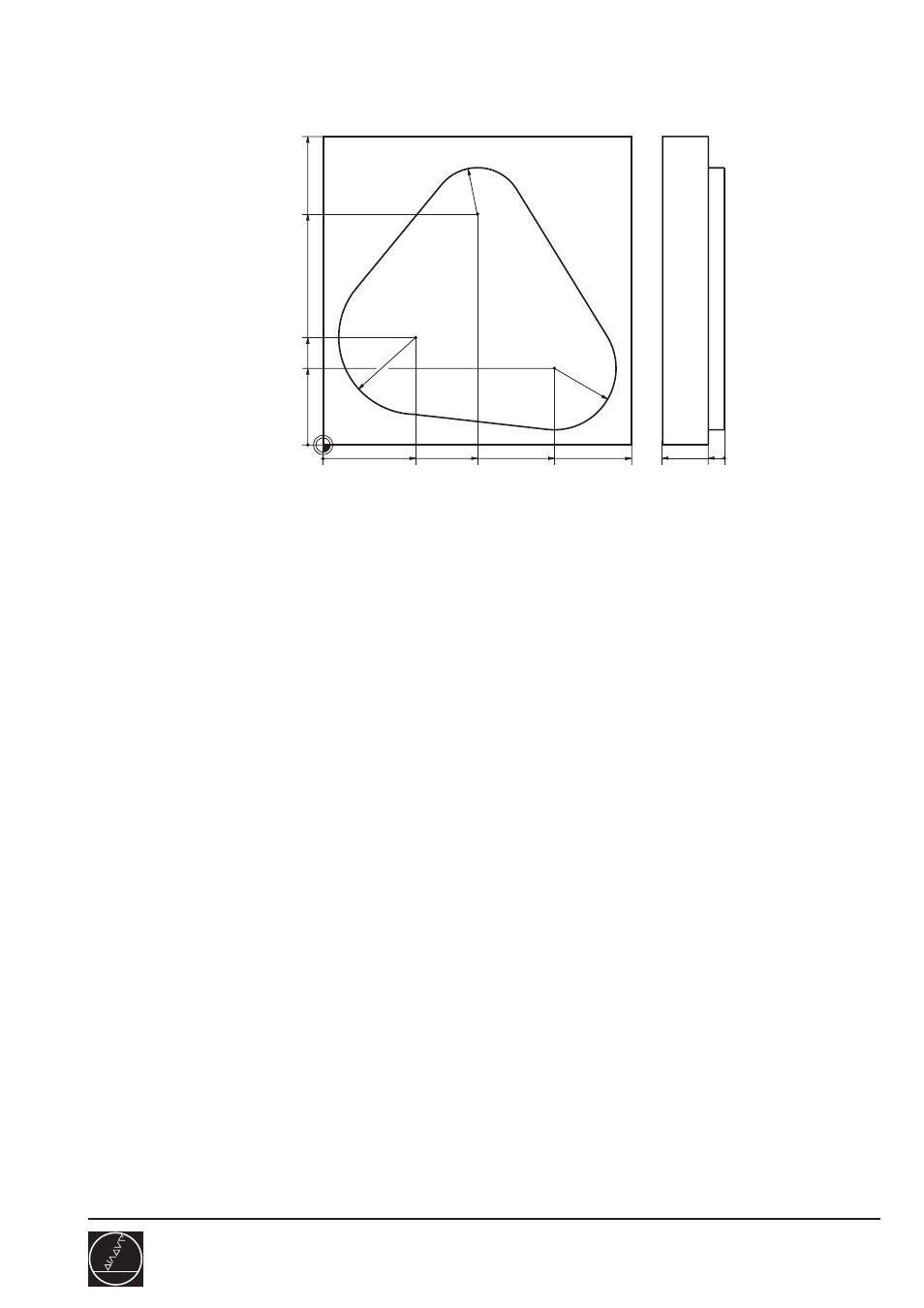

FK Nocke
288/2
D02
Gesamtprogramm
0 BEGIN PGM 288 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 10 Z S4000 ........................................... R7,5
4 L Z+100 R0 F MAX
5 L X-15 Y+35 R0 F MAX M3
6 L Z-5 R0 F MAX
7 APPR LCT X+5 Y+35 R5 RL F400
8 FC DR- R25 CCX+30 CCY+35
9 FLT
10 FCT DR- R15 CCX+50 CCY+75
11 FLT
12 FCT DR- R20 CCX+75 CCY+25
13 FLT
14 FCT X+5 Y+35 DR- R25 CCX+30 CCY+35
15 DEP LCT X-15 Y+35 R5
16 L Z+100 R0 F MAX M2
17 END PGM 288 MM
100
100
0
50
0
35
20
0 5
25
30 75
75
R25
R20
R15
