Lösung:
Differenzkurs

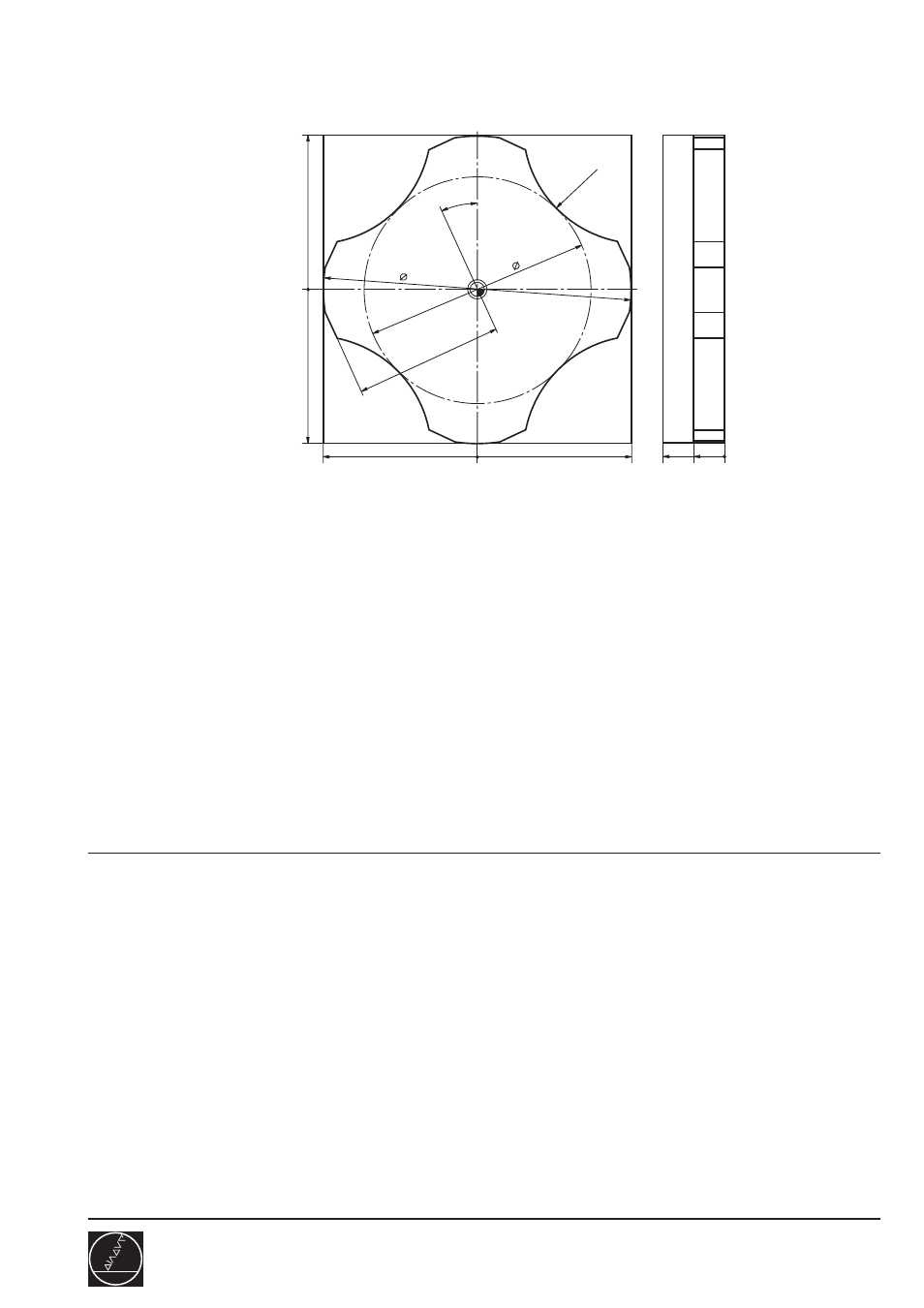

Malteserkreuz
275/2
D02
HAUPTPROGRAMM 0 BEGIN PGM 275 MM
1 BLK FORM 0.1 Z X-50 Y-50 Z-20
2 BLK FORM 0.2 X+50 Y+50 Z+0
3 TOOL CALL 8 Z S250074 ......................................... R5
4 L Z+100 R0 F MAX
5 L Z+2 R0 F MAX M3
6 CALL LBL 10
7 LBL 5
8 CYCL DEF 10.0 DREHUNG
9 CYCL DEF 10.1 IROT-90
10 CALL LBL 10
11 CALL LBL 5 REP 2/2
12 CYCL DEF 10.0 DREHUNG
13 CYCL DEF 10.1 ROT+0
14 L Z+100 R0 F MAX M2
15 LBL 10
16 CC X+0 Y+0
17 LP PR+70 PA+180 R0 F1000
18 L Z-10
19 APPR PLCT PR+50 PA+180 R2 RL F500
20 FPOL X+0 Y+0
21 FC DR- R50 CCX+0 CCY+0
22 FL AN+65 PDX+0 PDY+0 D48
23 FSELECT 4
24 FC DR+ R38 CCPR+75 CCPA+135
25 FSELECT 2
26 FL AN+25 PDX+0 PDY+0 D48
27 FSELECT 1
28 FC PR+50 PA+90 DR- R50 CCA+90
29 DEP PLCT PR+70 PA+90 R2
30 LBL 0
31 END PGM 275 MM
UP
50
50
0
0
-50
20
0
-50
74
48
25°
R38
10
100
