Lösung:
Fortgeschrittenen-Kurs TNC 4xx

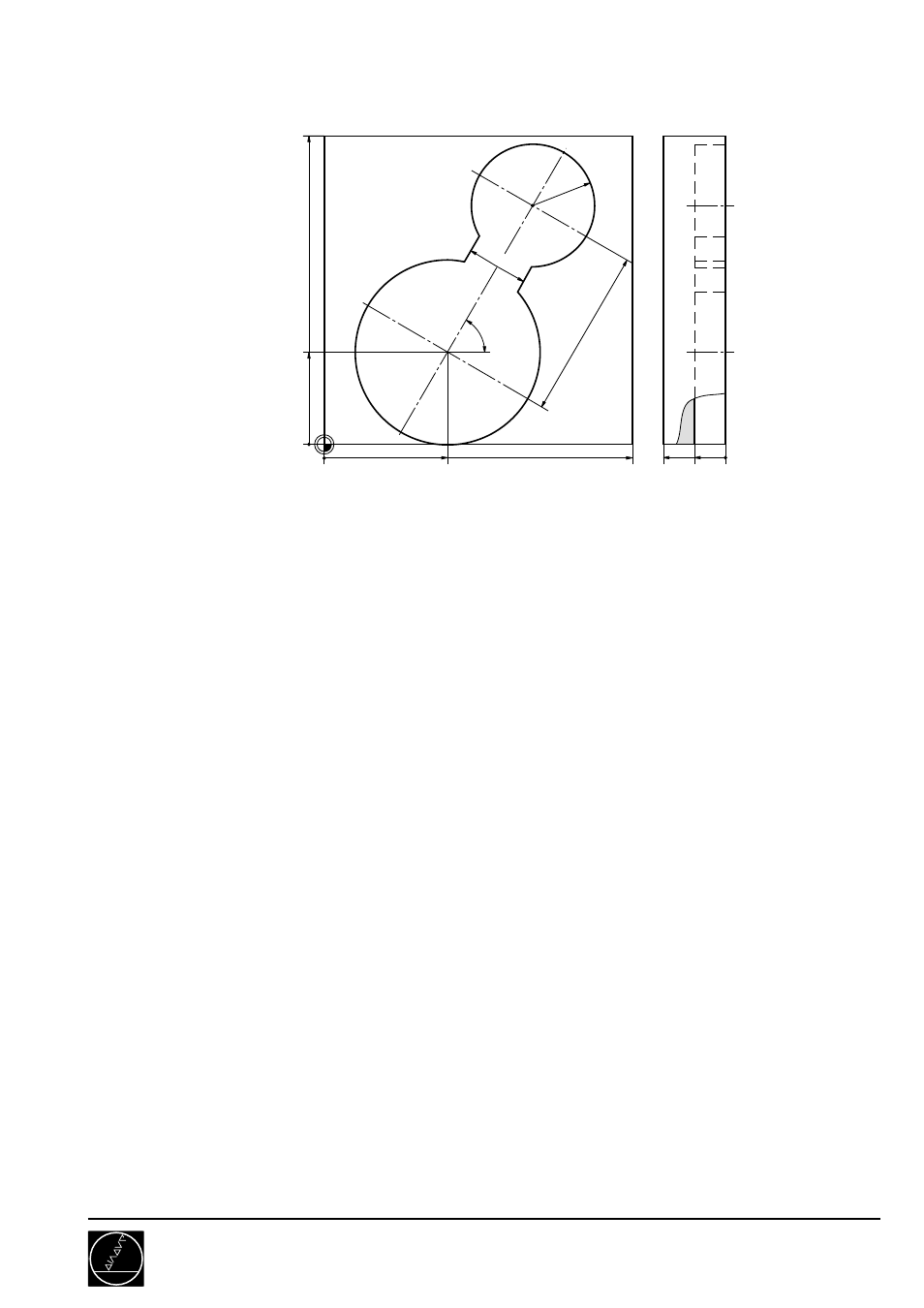

FK Hantel
75116/2
C01
100
100
0
40
0
30
20
0
10
60°
55
R20
20
0 BEGIN PGM 75116 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+4
4 TOOL CALL 1 Z S4000
5 L Z+2 R0 F MAX M3
6 L X+40 Y+30 R0 F2000
7 L Z-10 F100
8 L X+10 Y+30 RR F200
9 FPOL X+40 Y+30
10 FC DR- R30 CCX+40 CCY+30 F500
11 FL AN+60 PDX+40 PDY+30 D10
12 FSELECT 3
13 FC DR- R20 CCPR+55 CCPA+60
14 FSELECT 2
15 FL AN-120 PDX+40 PDY+30 D10
16 FSELECT 3
17 FC X+10 Y+30 DR- R30 CCX+40 CCY+30
18 FSELECT 2
19 L X+40 Y+30 R0
20 L Z+50 R0 F MAX M2
21 END PGM 75116 MM
