Lösung:
Fortgeschrittenen-Kurs TNC 4xx

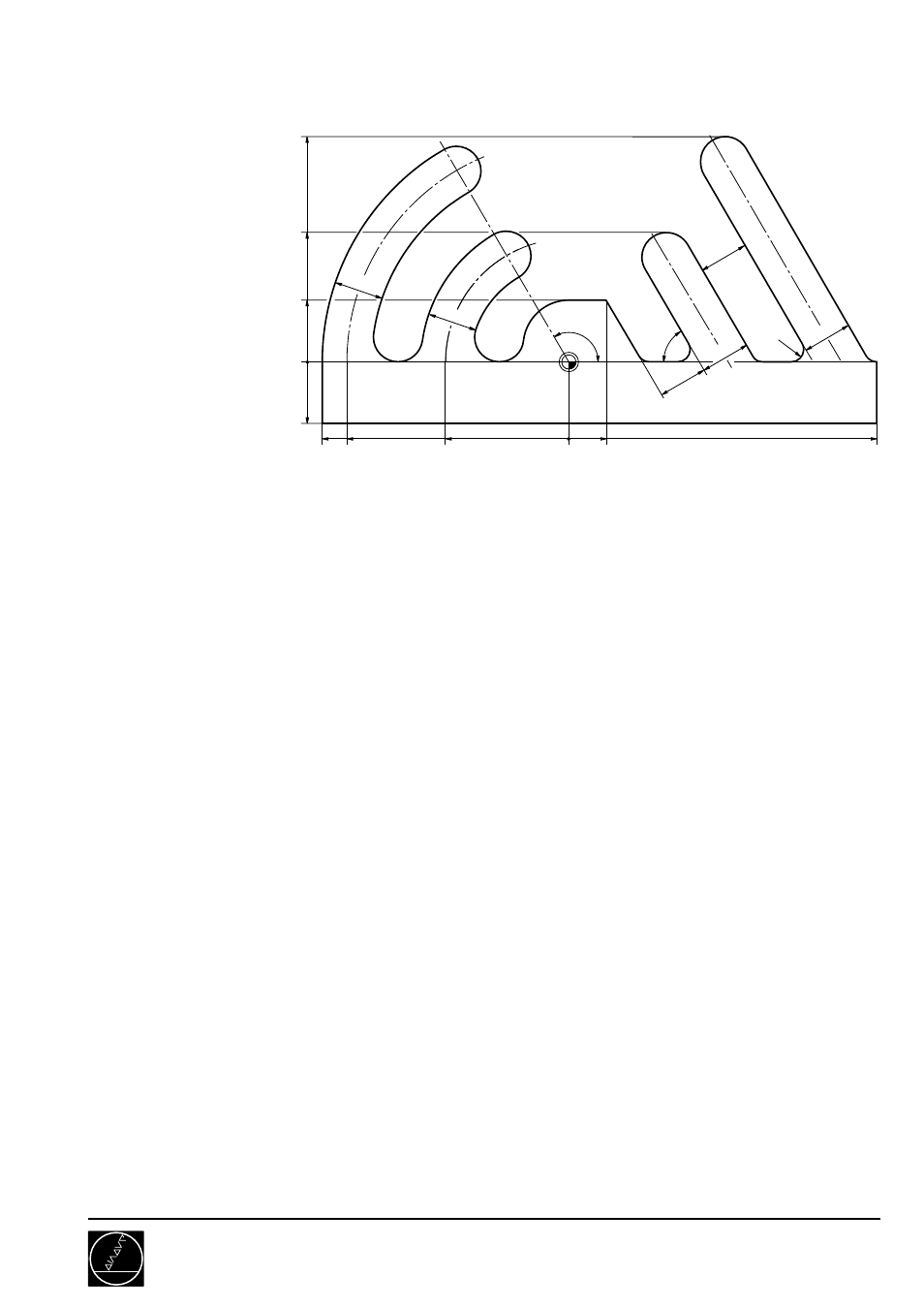

FK Kamm
75108/2
C05
0 BEGIN PGM 75108 MM
1 BLK FORM 0.1 Z X-80 Y-10 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+3,5
4 TOOL CALL 1 Z S1000
5 L X-100 Y+0 R0 F MAX M3
6 L Z-20 F MAX
7 L X-80 Y+0 RL F600
8 FPOL X+0 Y+0
9 FC DR- R80 CCX+0 CCY+0
10 FCT DR- R8 CCPR+72 CCPA+120
11 FCT DR+ R64 CCX+0 CCY+0
12 FCT DR+ R8 CCY+8
13 FSELECT 2
14 FCT DR- R48 CCX+0 CCY+0
15 FCT DR- R8 CCPR+40 CCPA+120
16 FCT DR+ R32 CCX+0 CCY+0
17 FCT DR+ R6 CCY+6
18 FSELECT 2
19 FCT X+0 Y+20 DR- R20 CCX+0 CCY+0
20 FLT X+12 Y+20
21 FL AN-60
22 FCT Y+0 DR+ R4
23 FLT AN+0
24 FCT DR+ R4
25 FLT AN+120 PAR21 DP16
26 FCT DR- R8 CCY+34
27 FLT AN-60 PAR25 DP16
28 FCT Y+0 DR+ R4
29 FLT Y+0 AN+0
30 FCT DR+ R4
31 FLT AN+120 PAR27 DP16
32 FCT DR- R8 CCY+64
33 FLT AN-60 PAR31 DP16
34 FCT X+100 Y+0 DR+ R4
35 FSELECT 2
36 FL X+100 Y-20
37 FL X-80 Y-20
38 FL X-80 Y+0
39 END PGM 75108 MM
0
-72
0
-40
12
-20
R4
-80
72
100
42
20
16
16
16
16
60°
16
16
120°
