Lösung:
Fortgeschrittenen-Kurs TNC 4xx

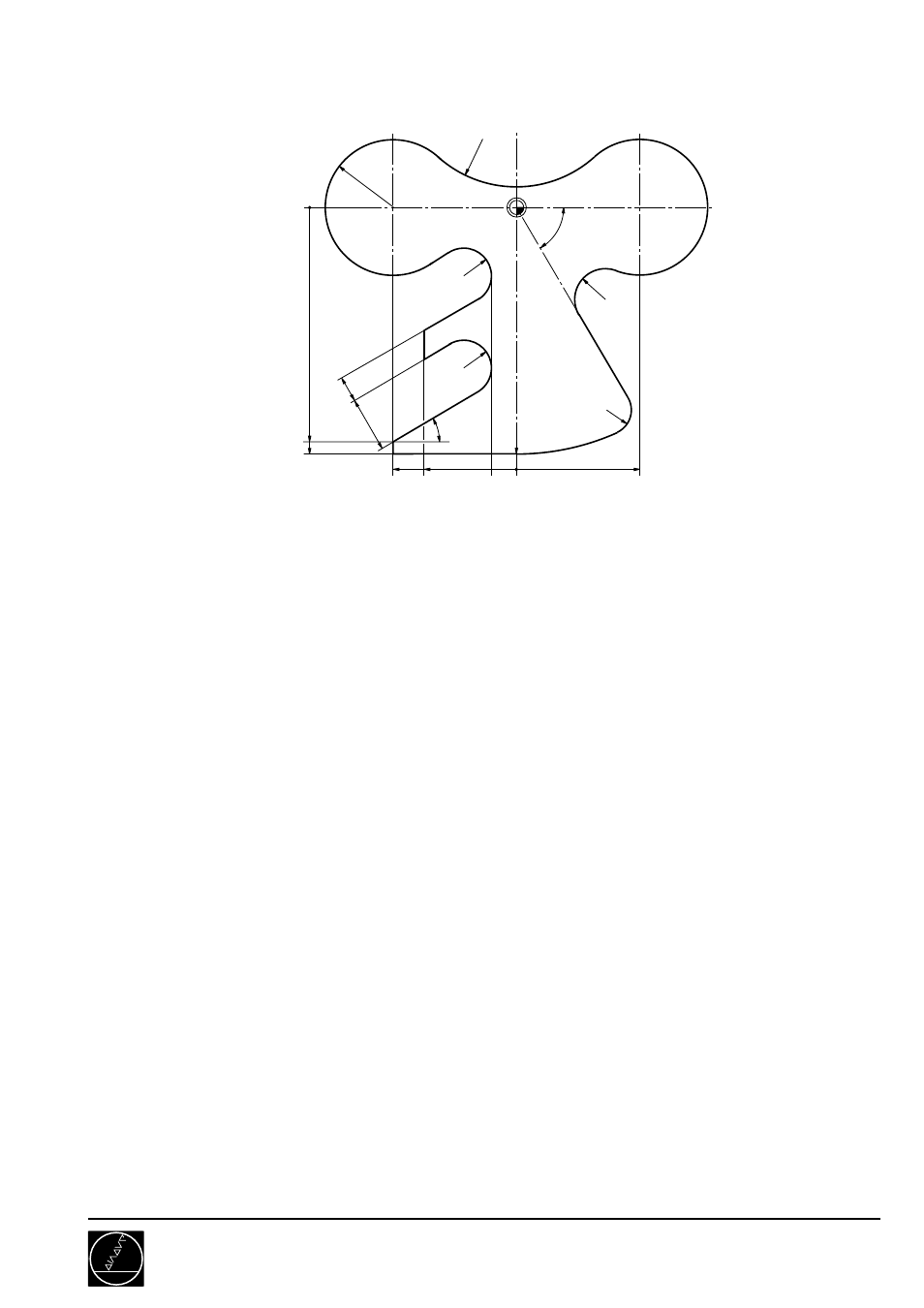

FK Micky Maus
71750/2
C05
80
0
-30
0
-8
-40
40
R80
76
30°
R9
R8
R10
60°
R38
R22
R9
18
8
0 BEGIN PGM 71750 MM
1 ................................................................................. MICKY
2 BLK FORM 0.1 Z X-70 Y-90 Z-12
3 BLK FORM 0.2 X+70 Y+30 Z+0
4 TOOL DEF 1 L+0 R+5
5 TOOL CALL 1 Z S2500
6 L Z+10 R0 F9999 M3
7 L X-62 Y+0 RL
8 L Z-10 F150
9 FC DR- R22 CLSD+ CCX-40 CCY+0
10 FCT DR+ R38 CCX+0
11 FSELECT 1
12 FCT DR- R22 CCX+40 CCY+0
13 FCT DR+ R10
14 FLT AN-60 PDX+0 PDY+0 D0
15 FSELECT 3
16 FCT DR- R8
17 FCT X+0 Y-80 DR- R80 CCX+0 CCY+0
18 FLT X-40 AN+180
19 FL AN+90
20 FL AN+30
21 FCT DR+ R9 CCX-17
22 FLT X-30 PAR21 DP18
23 FSELECT 2
24 FL AN+90
25 FL PAR23 DP8
26 FSELECT 2
27 FCT DR+ R9 CCX-17
28 FCT X-62 Y+0 DR- R22 CLSD- CCX-40 CCY+0
29 FSELECT 2
30 L Z+10 F9999 M2
31 END PGM 71750 MM
