Lösung:
Fortgeschrittenen-Kurs TNC 4xx

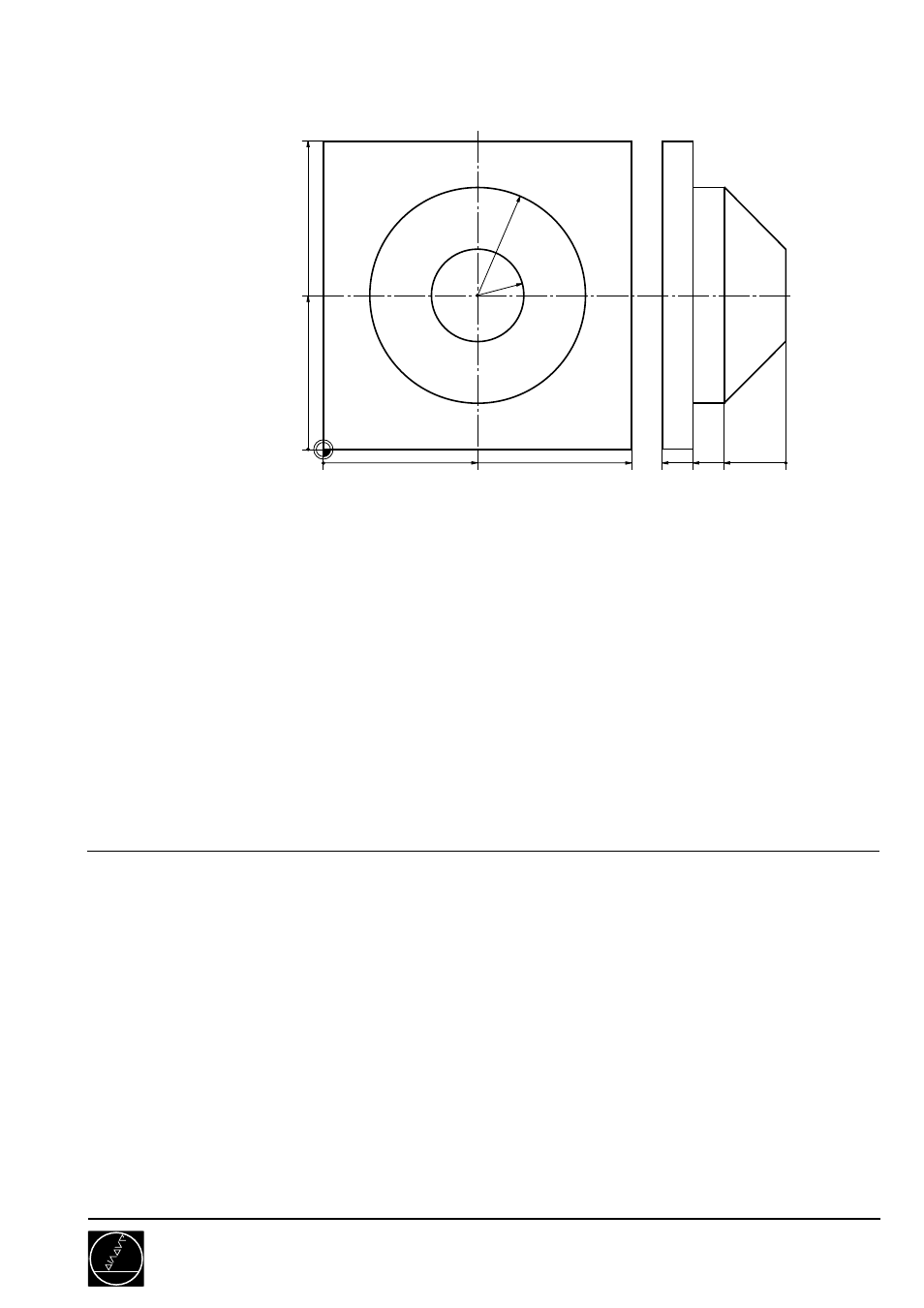

Kegelstumpf stehend, 3D vertikal,
Außenform mit Schaftfräser, wiederholbar
7282/4
C05
100
20
0
100
0
50
0
50
R35
40 30
R15
0 BEGIN PGM 7282 MM
1 ................................................................................. STEHENDER KEGELSTUMPF 3D
2 ................................................................................. VERTIKAL, SCHAFTFRAESER
3 ................................................................................. FERTIGSCHNITT
4 BLK FORM 0.1 Z X+10 Y+10 Z-32
5 BLK FORM 0.2 X+90 Y+90 Z+0
6 TOOL DEF 1 L+0 R+10
7 TOOL CALL 1 Z S4000
8 L Z+20 R0 F9999 M3
9 CYCL DEF 7.0 NULLPUNKT
10 CYCL DEF 7.1 X+50
11 CYCL DEF 7.2 Y+50
12 FN 1: Q3 = +15 + +Q108 .......................................... X OBEN
13 FN 1: Q4 = +35 + +Q108 .......................................... X UNTEN
14 CALL LBL 1 .............................................................. 1. SCHNITT
15 L Z+50 R0 F9999 M2
16 LBL 1
17 L X+Q3 Y+0 R0 F9999 M3 ....................................... ANFAHREN OBEN
18 L Z+2
19 L Z+0 F100
20 LBL 2
21 L X+Q4 Y+0 Z-20 ..................................................... SCHNITT ABWAERTS
22 L Z+0 F9999 ............................................................. Z FREI
23 L X+Q3 Y+0 F2000
24 CYCL DEF 10.0 DREHUNG
25 CYCL DEF 10.1 IROT-5 ............................................. FEINHEIT DER ROTATION
26 L Y+0 F500 ............................................................... OBEN QUER
27 L F500
28 CALL LBL 2 REP 71/71 ............................................. ANZAHL DER ROTAT.-SCHRITTE
29 CYCL DEF 10.0 DREHUNG
30 CYCL DEF 10.1 ROT+0
31 LBL 0
32 END PGM 7282 MM
UP
HAUPTPROGRAMM
