1. Fitting
RO
i
855
D / 865 D
1. Fitting
The coupling is supplied in a ready-to-use condition.
– Observe the relevant regulations for installation
– The instructions of the vehicle manufacturer
– Clearance for axial twisting of the coupling head
x

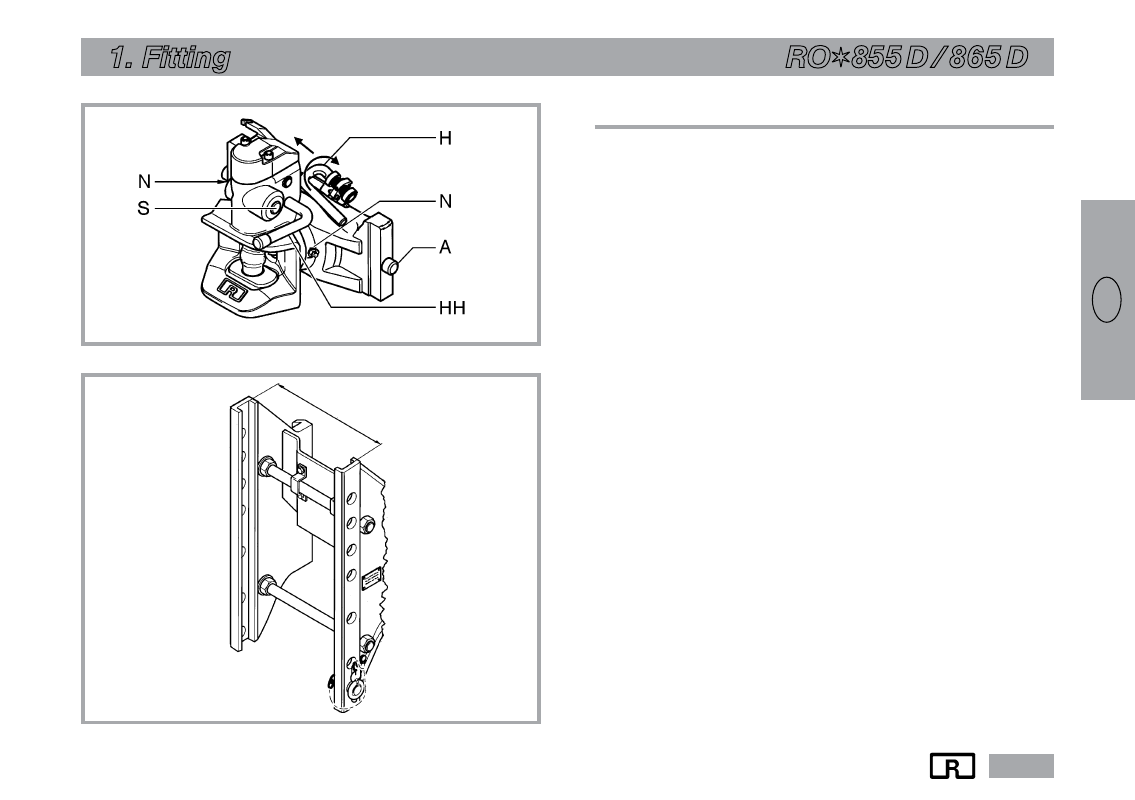

Inspection of the anti-slip device in the trailer block
(s. Abb. 2)
x Insert the coupling from above into the guide rails
x Attention: Keep a good grip on the coupling!
x Turn hand grip (H) of the cam plate upwards and press to the
left: the arresting bolts (A) move inwards (see Fig. 1)
x Place the coupling at the desired height in the trailer block
x Hold the coupling in place and at the same time turn the hand
grip (H)
x back to the right to allow It to engage
x Release the hand grip in the resting position (see Fig. 1)
Inspection: In the secured position it should only be possible to
move the hand grip (H) about 4 mm to the left
Attention: Do not use any aids to operate the height adjustment
and avoid impact on the cam plate: Risk of damage!
Sw
1
2
G
B
