Cybex 12140 VR3 Prone Leg Curl - Handbuch (Seite 6)

6
Bedienungsanleitung für Cybex
Warnhinweise und Vorsichtsmaßnahmen
Warnaufkleber weisen auf Situationen mit Gefahrenpotenzial hin, das zum Tode oder zu schweren
Verletzungen führen kann, wenn die Vorsichtsmaßnahmen nicht eingehalten werden.
Sicherheitsaufkleber weisen auf Situationen mit Gefahrenpotenzial hin, das zum Tode oder zu
schweren Verletzungen führen kann, wenn die Vorsichtsmaßnahmen nicht eingehalten werden.

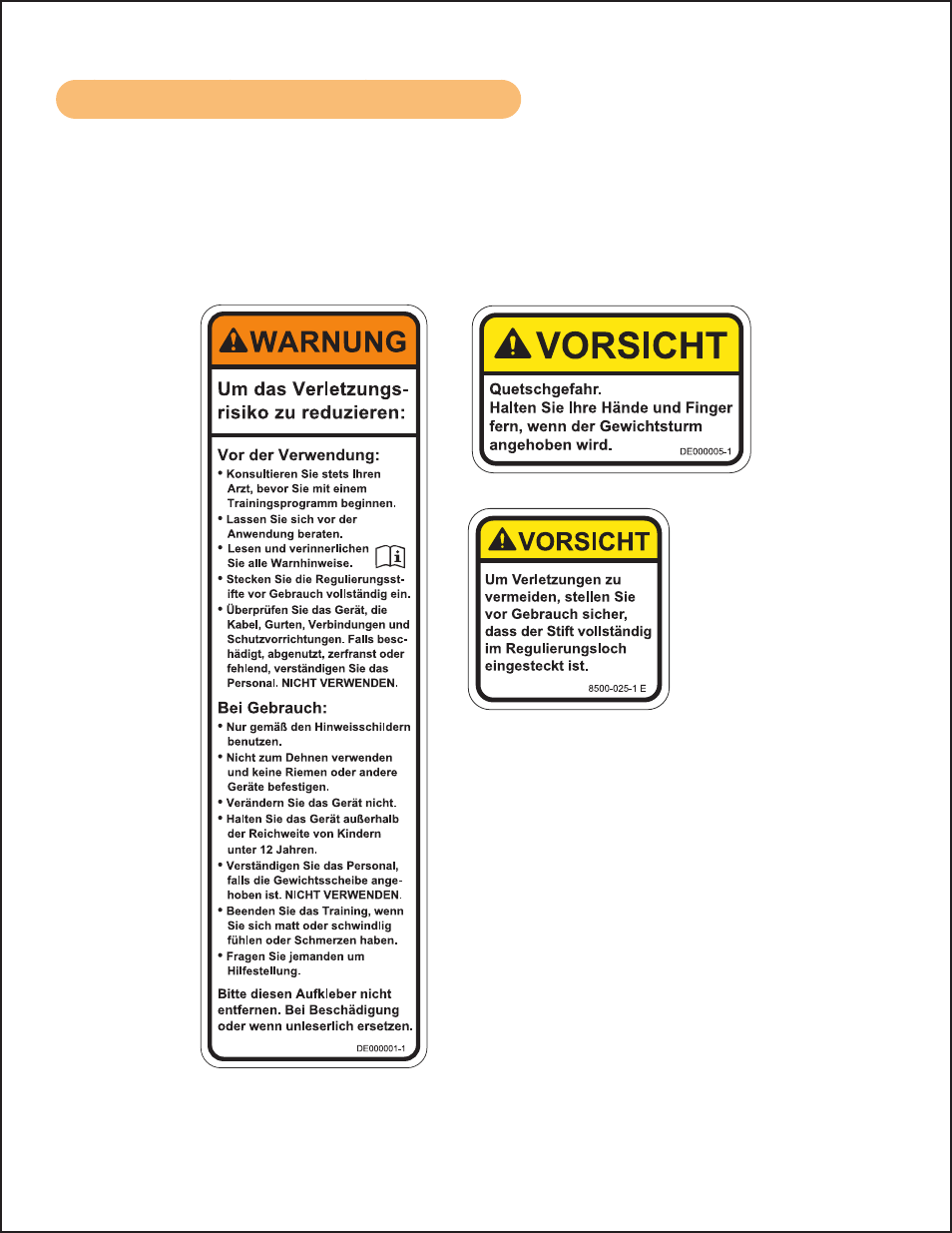

Die den Aufklebern folgenden Abbildungen zeigen, wo sie am Gerät angebracht sind.
DECAL, WARNING GERMAN
DE000001-1 -
