Bezeichnung und Funktionen der Teile
Lesen Sie hinsichtlich der hier nicht erklärten Tasten die in Klammern ( ) angegeben Seiten.
q INPUT SELECTOR-Regler ·················· (11)
w Lautsprecherauswahltaste
(SPEAKERS A, SPEAKERS B) ············ (11)
e TONE-Taste ········································ (12)
r Kopfhörerbuchse (PHONES) ············· (13)
t Display
y Statusanzeige des Bereitschaftsmodus
Gibt den Status des Geräts wie folgt an:
• Netz “Ein” .........................................Aus
• Bereitschaftsmodus ........................... Rot
• Netz “Aus” ........................................Aus
u Netzschalter ( X ON/OFF) ·················· (11)
i Fernbedienungssensor ························ (2)
o PRE OUT-Taste ··································· (19)
q PHONO GND-Anschluss (Erde) ··········· (9)
HINWEIS
Dieser Anschluss ist keine
Sicherheitserdung.
w Eingangsanschlüsse (INPUT) ·············· (9)
e Eingangs-/Ausgangsanschlüsse
(Aufnahme)(RECORDER1, RECORDER2)
····························································· (10)
r PRE OUT-Anschlüsse ························ (19)
t Lautsprechersystem-Anschlüsse
(SPEAKER SYSTEMS) ······················ (7, 8)
Q0 Taste für den Leistungsverstärker-
Direktmodus (P.DIRECT IN) ··············· (19)
Q1 Schalter für den Phono-Equalizer
(PHONO MC) ········································· (9)
Q2 VOLUME-Regler ································· (11)
Q3 Dämpfungstaste (ATT.) ····················· (13)
Q4 Beleuchtung ······································· (13)
Q5 Netzanzeige ········································ (11)
Gibt den Status des Geräts wie folgt an:
• Netz “Ein” ........................................ Blau
• Bereitschaftsmodus ...........................Aus
• Netz “Aus” ........................................Aus
Q6 DISPLAY-Taste ·································· (13)

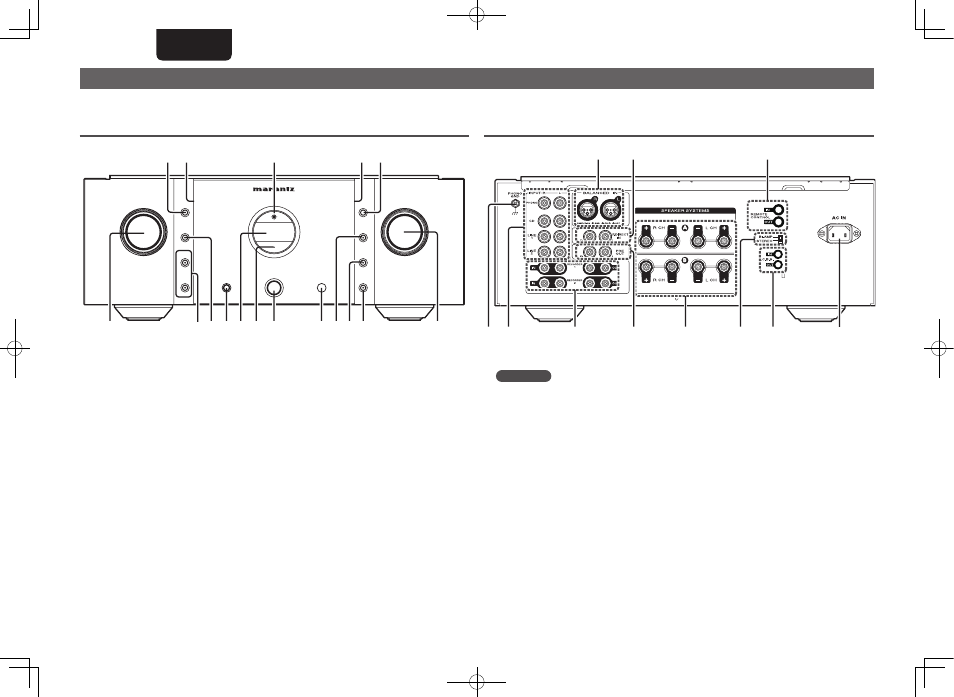

Vorderseite
X ON/OFF
PHONES
VOLUME
A
TONE
SPEAKERS
B SPEAKERS
PRE OUT
ATT.
MC PHONO
IN P.DIRECT
DISPLAY
SELECTOR INPUT
INTEGRATED AMPLIFIER PM-11S3
STANDBY
q y u i Q11 Q22
Q3 Q4 Q4 Q5 Q6
w e r t o Q0
Rückseite
3 1 2 3 1 2
w e r
Q0
y t u i q
o Q1
y Schalter für den Verstärkermodus
····························································· (16)
u F.C.B.S.-Anschlüsse ··························· (14)
i Wechselstromeingang (AC IN) ········· (10)
o REMOTE CONTROL-Anschlüsse ······· (20)
Q0 Leistungsverstärker-Direktanschlüsse
(P. DIRECT IN) ····································· (19)
Q1 Symmetrische Eingangsanschlüsse
(BALANCED IN) ···································· (9)
