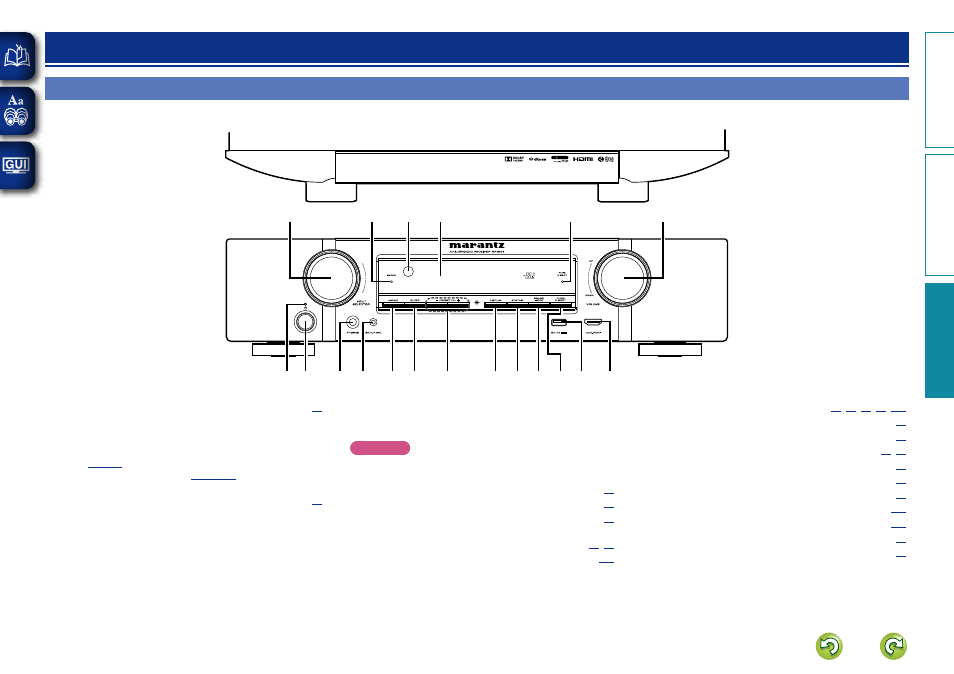

Vorderseite
Lesen Sie hinsichtlich der hier nicht erklärten Tasten die in Klammern ( ) angegeben Seiten.
q
e r
y
u
t
Q4
w
Q8
Q7
Q5
Q9
Q6
o
i
Q2
Q0 Q1
Q3
q
Netzanzeige ············································································· (
GNetzanzeigestatusH
• Eingeschaltet: Aus
• Normales Standby: Rot
• Wenn “HDMI PassThrough” oder “HDMI Steuerung”
) auf “Ein” eingestellt ist: Orange
• Wenn “IP-Steuerung” (
) auf “Immer ein”
eingestellt ist: Orange
w
Netzschalter (X) ······································································ (
Schaltet das Gerät ein und aus (Standby).
o
STATUS-Taste ··············································· (
)
Q0
SOUND MODE-Taste ······························································ (
)
Q1
PURE DIRECT-Taste ································································ (
)
Q2
USB-Anschluss ·································································· (
)
Q3
AUX-HDMI-Anschluss ····························································· (
)
Q4
VOLUME-Knopf ······································································· (
)
Q5
PURE DIRECT-Anzeige ···························································· (
)
Q6
Anzeige ··················································································· (
)
Q7
Fernbedienungssensor ························································· (
)
Q8
M-DAX-Anzeige ······································································· (
)
Q9
INPUT SELECTOR-Knopf ························································ (
)
e
Kopfhörerbuchse (PHONES)
Wenn an dieser Buchse Kopfhörer angeschlossen werden, wird
über die angeschlossenen Lautsprecher kein Ton ausgegeben.
HINWEIS
Zur Vermeidung von Gehörschäden sollte die Lautstärke nicht
übermäßig hoch eingestellt werden.
r
SETUP MIC-Buchse ································································· (
)
t
M-DAX-Taste ··········································································· (
)
y
SLEEP-Taste ············································································· (
)
u
Tasten für gespeicherte Radiosender
(PRESET CH +, –) ································································ (
)
i
DISPLAY-Taste ······································································· (
)
