Vorderseite

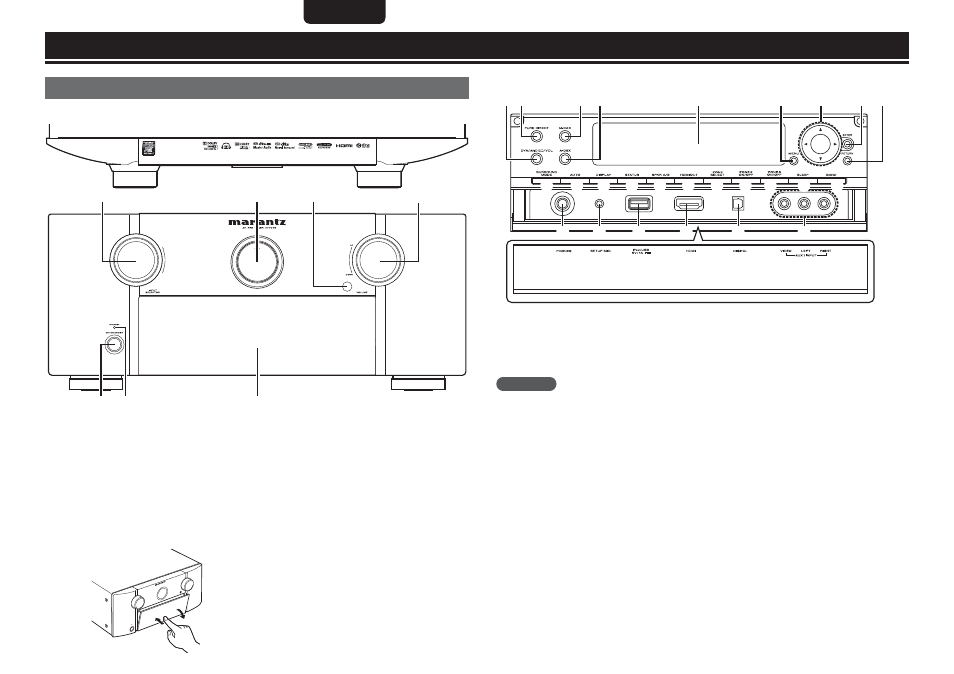

Lesen Sie hinsichtlich der hier nicht erklärten Tasten die in Klammern ( ) angegeben Seiten.
q w e
r u t y
q
Netzschalter
(ON/STANDBY) ······································ (7, 12)
Schaltet das Gerät ein und aus (Standby).
w
Netzanzeige ················································ (12)
e
Klappe
Wenn Sie Tasten und/oder Anschlüsse hinter
der Tür verwenden, drücken Sie auf den unteren
Teil der Tür, um diese zu öffnen. Schließen Sie
die Tür, wenn Sie die dahinterliegenden Tasten
und/oder Anschlüsse nicht verwenden. Seien
Sie beim Schließen der Tür bitte vorsichtig, um
sich nicht Ihre Finger einzuklemmen.
r
VOLUME-Knopf ·········································· (26)
t
Fernbedienungssensor ······························ (98)
y
Hauptdisplay ··············································· (95)
u
INPUT SELECTOR-Knopf ··························· (25)
Bezeichnung und Funktionen der Teile
GMit offener KlappeH
W3
i o Q0 Q1 Q2 Q3
E3 W5 W6 W7 W8 W9 E0 E1 W4 E2
Q5 W0 W1 Q9 W2 Q4 Q7 Q6 Q8
i
Kopfhörerbuchse
Wenn der Kopfhörer an diese Buchse
angeschlossen ist, ist kein Ton mehr aus den
angeschlossenen Lautsprechern zu hören, auch
nicht über die PRE OUT-Anschlüsse.
HINWEIS
Zur Vermeidung von Gehörschäden sollte die
Lautstärke nicht übermäßig hoch eingestellt
werden.
o
SETUP MIC-Buchse ································ (9, 49)
Q0
iPod/USB-Anschluss ·································· (20)
Q1
HDMI-Anschluss ········································· (16)
Q2
DIGITAL-Anschluss ····································· (19)
Q3
AUX1 INPUT-Anschlüsse ··························· (19)
Q4
RETURN-Taste ···································· (61 – 63)
Q5
ENTER-Taste ······································· (61 – 63)
Q6
Pfeiltasten (uio p) ························· (61 – 63)
Q7
MENU-Taste ················································ (95)
Q8
Nebendisplay ·············································· (63)
Q9
Audyssey DSX™-Taste (A-DSX) ··············· (71)
W0
M-DAX-Taste /M-DAX -Anzeige ··············· (73)
W1
PURE DIRECT-Taste / M-DAX-Anzeige ···· (43)
W2
Dynamic EQ®/Dynamic Volume®-Taste
(DYNAMIC EQ/VOL) ··································· (71)
W3
SURROUND MODE-Taste ·························· (41)
W4
AUTO-Taste ········································ (57, 110)
W5
DISPLAY-Taste ······································ (57, 82)
W6
STATUS-Taste ············································ (84)
W7
Lautsprecher-Umschalttaste A/B
(SPKR A/B) ·················································· (26)
W8
HDMI OUT-Taste ········································ (16)
W9
ZONE SELECT-Taste ·································· (59)
E0
ZONE2 ON/OFF-Taste ································ (59)
E1
ZONE3 ON/OFF-Taste ································ (59)
E2
SLEEP-Taste ················································ (53)
E3
BAND-Taste ················································ (30)
