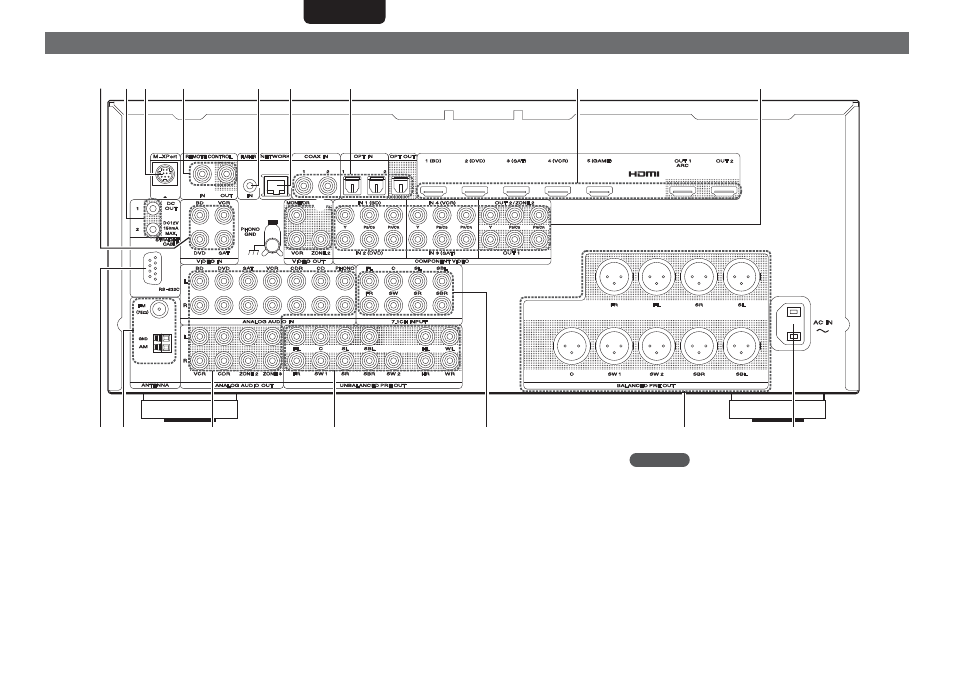

Rückseite
Lesen Sie die Erläuterungen auf der Seite, die in Klammern angegeben ist ( ).
Q7
q w
u
y
r
t
e
Q5 Q4
Q6
i
Q3
Q2
Q1
Q0
o
Q6
q
RS-232C-Anschluss ································································· (51)
w
UKW/MW-Antennenanschlüsse ············································ (22)
e
Analoge Audioanschlüsse ·········································(17 – 21, 23)
r
UNBALANCED PRE OUT-Buchsen ··········································· (6)
t
7.1CH INPUT-Anschlüsse ························································ (23)
y
BALANCED PRE OUT-Buchsen ················································ (6)
u
Wechselstromeingang (AC IN) ················································· (7)
i
COMPONENT VIDEO-Anschlüsse ···································(17 – 19)
o
HDMI-Anschlüsse ···································································· (16)
Q0
Digitale Audioanschlüsse ················································(17 – 21)
Q1
NETWORK-Anschluss ····························································· (24)
Q2
FLASHER IN-Buchse
Bei Verwendung einer Control Box oder anderer Steuergeräte, mit
der dieses Gerät bedient werden kann.
Q3
REMOTE CONTROL-Buchsen ················································· (50)
Q4
M-XPort-Buchse ······································································ (22)
Q5
DC OUT-Buchsen ····································································· (51)
Q6
VIDEO-Anschlüsse ····························································(17 – 19)
Q7
SIGNAL GND-Anschluss ························································· (21)
HINWEIS
Berühren Sie nicht die inneren Anschlusskontakte auf der Rückseite.
Elektrostatische Entladung könnte das Gerät beschädigen.
