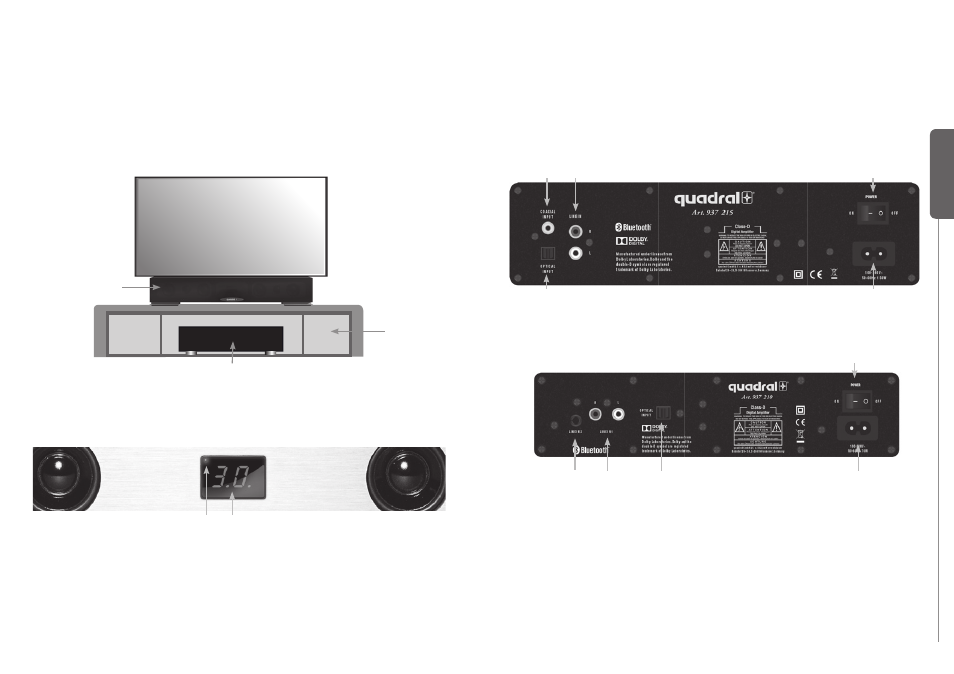

Positioning
Your MAGIQUE TV speaker is suitable for positioning directly underneath your
flatscreen TV, which, ideally, should be aligned to match your seating arrangements.
Your MAGIQUE TV speaker should be free-standing without any obstructions being in
the way so that optimum sound radiation can be realised and the low frequencies are
guaranteed as the bass reproduction speaker is fitted at the bottom of the unit and it
radiates downwards. A suitably large compartment in the TV rack or sideboard will
easily satisfy these conditions.
Front of the unit
All of the operating statuses and settings will be shown on the display.
1. These are displayed in the bottom right corner in the picture, standby mode.
2. If other settings are illuminated in this position on the display, then the Dolby Digital
Decoder is active.
3. Infrared receiver : This sensor receives the infrared signal transmitted by your remote
control. Always point the remote control in this direction and ensure that the sensor is
never concealed.
Connections on the back of the unit
1 OPTICAL INPUT – Digital optical input
2 Mains power supply socket
3 Mains switch : Disconnects the unit from the mains power supply.
4 LINE IN 1 – Analog stereo RCA-inputs
5 LINE IN 2 – Analog stereo mini-jack
2 COAXIAL INPUT – Digital coax input
