– Voltage
2
+ Voltage
Connection
no.
Power
supply
Switch settings
According to TD-23 AC
Connections
According to TD-23 AC, except power supply
TD-23 DC
Specifications
Power supply
12-36, 36-55V DC
Power consumption
<2W
Isolations voltage
1000V
Fuse F1
1.6 mA fast
All other specifications according to TD-23 AC

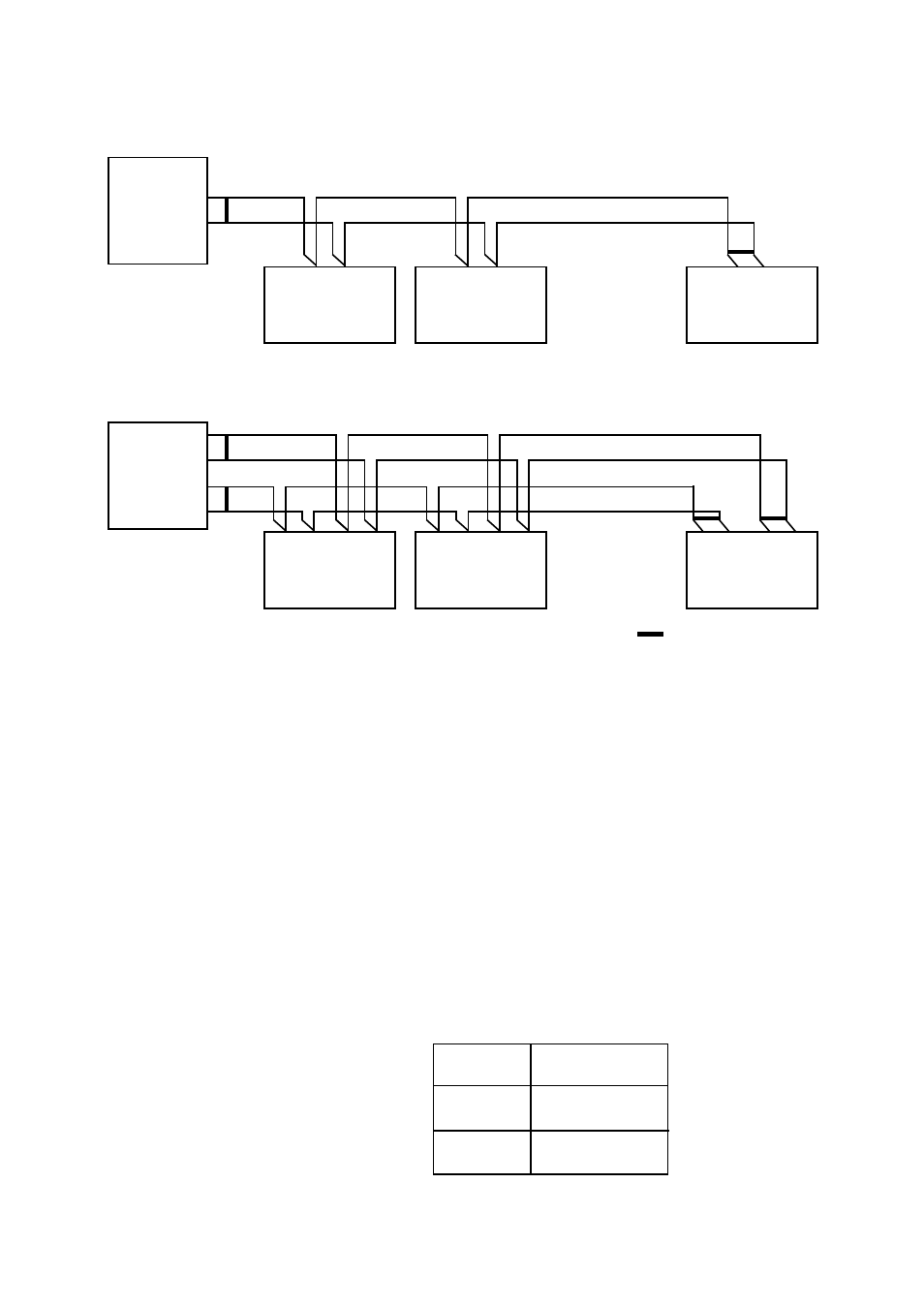

Line connection
4-pole
detachable screw terminal
Multidrop V.23 half duplex with TD-23
TX/RX
TX/RX
1
2
1
2
TX/RX
1
2
TX/RX
1
2
4-pole
detachable screw terminal
Multidrop V.23 full duplex with TD-23
TX
TX
1
2
RX
3
4
1
2
RX
3
4
TX
1
2
RX
3
4
TX
1
2
RX
3
4
Termination to be
set with DIP-switches
