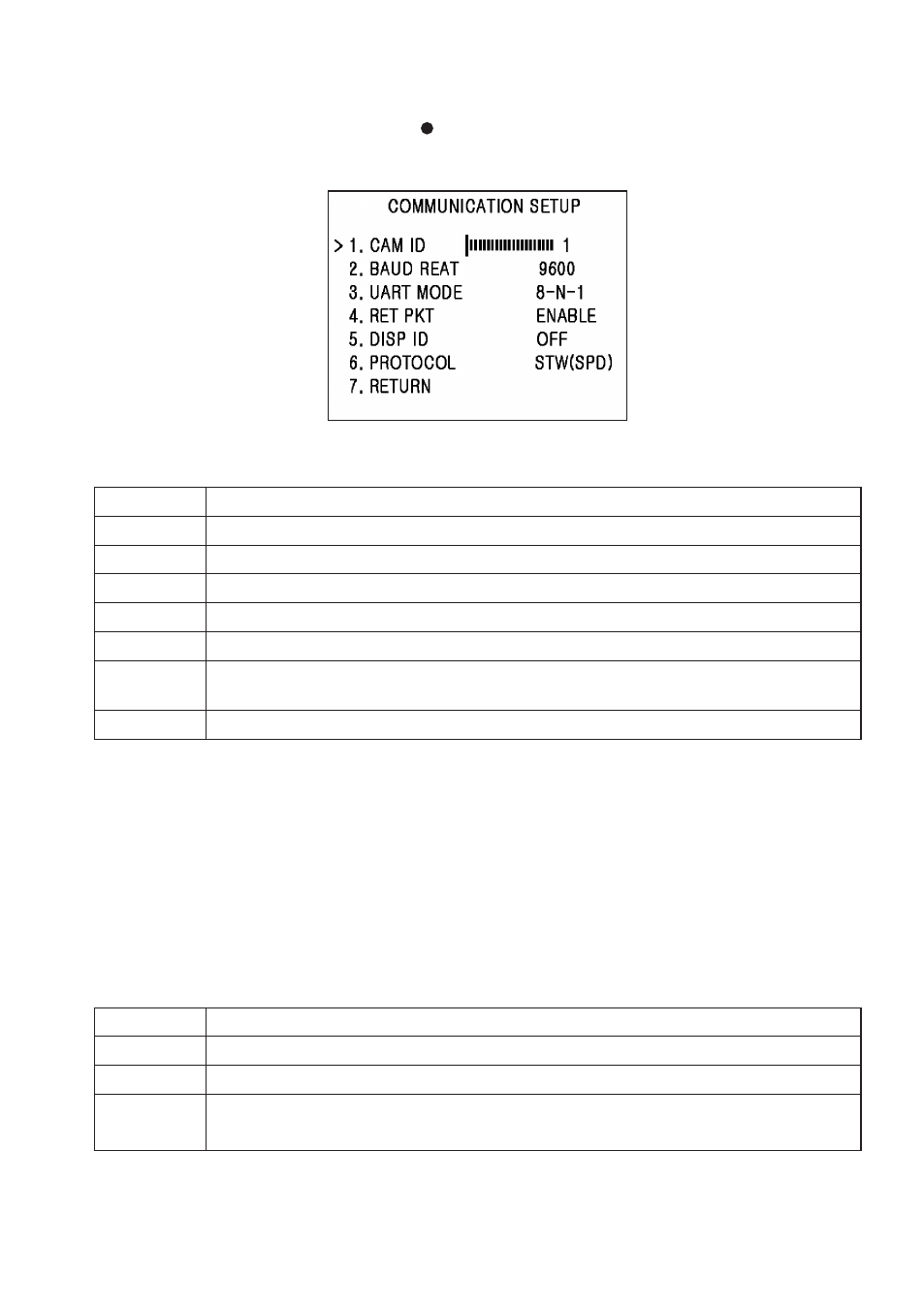

5.9.3 COMMUNICATION SETUP
To enter
COMMUNICATION SETUP menu, press at MAIN > SPECIAL > COMM ADJ.
Function
Description
CAM ID
Sets the camera’s identification number between 0 ~ 55.
BAUD RATE
Set the communication speed from 400, 4800, 9600, 900, 38400, 57600bps
UART MODE
Sets the data bit length, parity bit and stop bit.
RET PKT
If set to ENABLE, camera repeats back the command to the controller.
DISP CAM ID
ON displays CAM ID.
PROTOCOL
Selects the communication protocol from STW(SPD), Pelco-D, Pelco-P, SEC, Bosch, Honeywell,
Vicon, Pana.
RETURN
Saves the settings of COMMUNICATION SETUP and returns to SPECIAL SETUP
IMPORTANT !!!
COMMUNICATION SETUP must match with the controller.
5.10 EXIT
Function
Description
SAVE
Saves the current settings and exits MAIN SETUP.
NOT SAVE
Discards the changes and exits MAIN SETUP.
RESET
Resets the camera settings to the factory defaults.
LANGUAGE and MONITOR settings are not initialized.
