9
Connection for external functions
For external functions, a 4-pin female connection is available through which the recording of measured
values can be externally controlled. The required connector can be ordered from HEIDENHAIN under the
part number 282 168-01.

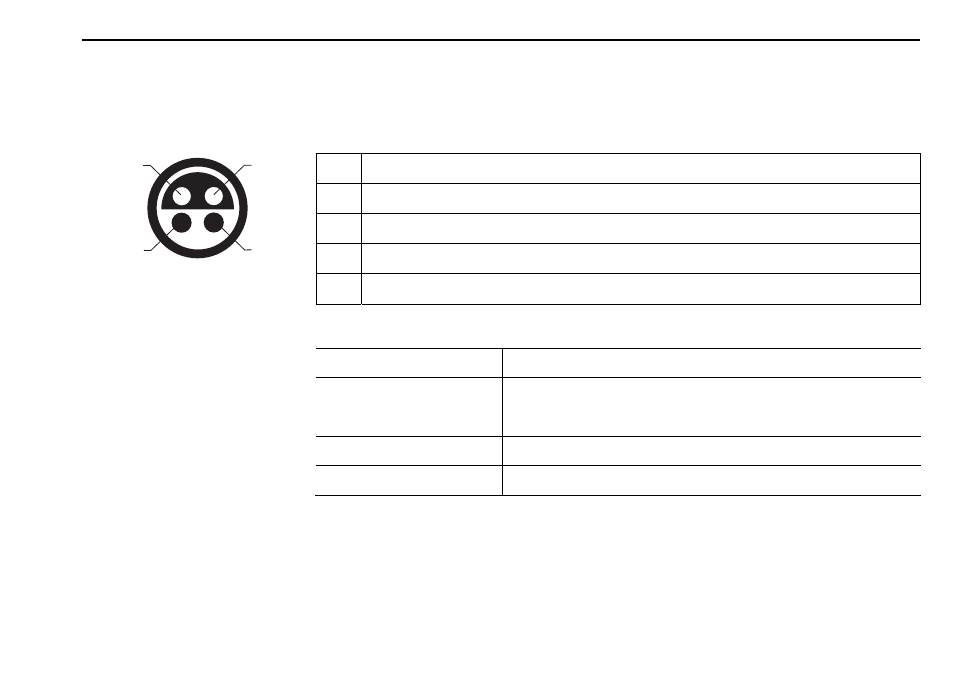

The signals are arranged as follows (view of the connection from outside):
1
4
3
2
Pin
Assignment
1
Input: Latch pulse
2
Output: Synchronization pulse
3
Output: MSB of the position value (singleturn) (only with EnDat)
4
GND
Specification of the PCI bus
Specification PCI
local bus Spec. Rev. 2.1
Power supply
+5 V ± 5%
+12 V ± 5%
–12 V ± 5%
Power consumption
Approx. 4 watts, without encoders
Dimensions
Approx. 100 x 190 mm
English
IK 215
