11
CY IE GB
- All hoods and protective devices
must be assembled properly be-
fore commissioning.
- Disconnect the mains plug be-
fore changing the setting on the
device.
Setting up
Place the bench drill on a solid surface.
Ideally, bolt the drill to the surface. Use the
two holes in the baseplate (17) for this.
Selecting the speed
1. Release the locking bolt (11) on the
gear cover (8).
2. Open the gear cover (8).
3. Release the retaining bolt (13) on the
motor unit (14).
4. Slide the motor unit (14) forward a little
to release the load on the V-belt (26).

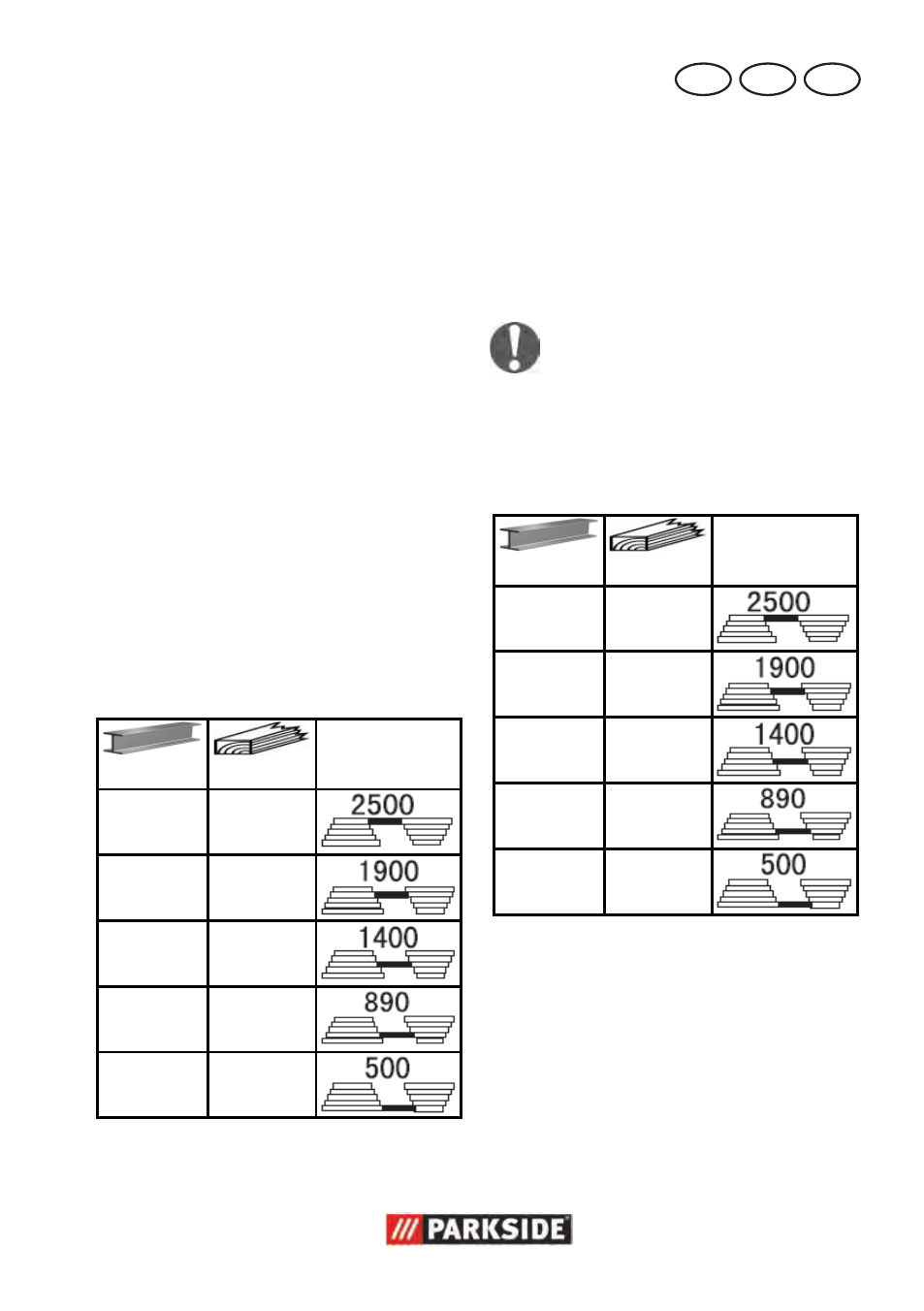

5. Place the V-belt (26) on the desired as-
sembly to reach the specified speed:
Ø [mm]: Ø [mm]: [1/min]:
6 - 8 9 - 10
> 8 > 10
< 3 < 4
3 - 4 5 - 6
5 7 - 8
6. Slide the motor unit (14) back to tensi-
on the V-belt (26) again.
7. The V-belt (26) is correctly tensioned
when it gives way slightly when
pressed.
8. Tighten the retaining bolt (13) on the
motor unit (14) again.
9. Close the gear cover (8). Fasten the
locking bolt (11) on the gear cover .
The gear cover (8) is equipped with
a safety switch (27). If the gear
cover (8) is not closed correctly, the
device cannot be switched on.
Recommended speeds for
different drill sizes and materials:
Ø [mm]: Ø [mm]: [1/min]:
6 - 8 9 - 10
> 8 > 10
< 3 < 4
3 - 4 5 - 6
5 7 - 8
Checking the V-belt
1. Release the locking bolt (11) on the
gear cover (8).
2. Open the gear cover (8).
3. Check the tension of the V-belt (26).
4. The V-belt (26) is correctly tensioned
when it gives way slightly when
pressed.
5. Check the V-belt (26) for tears, cuts or
other damage.
