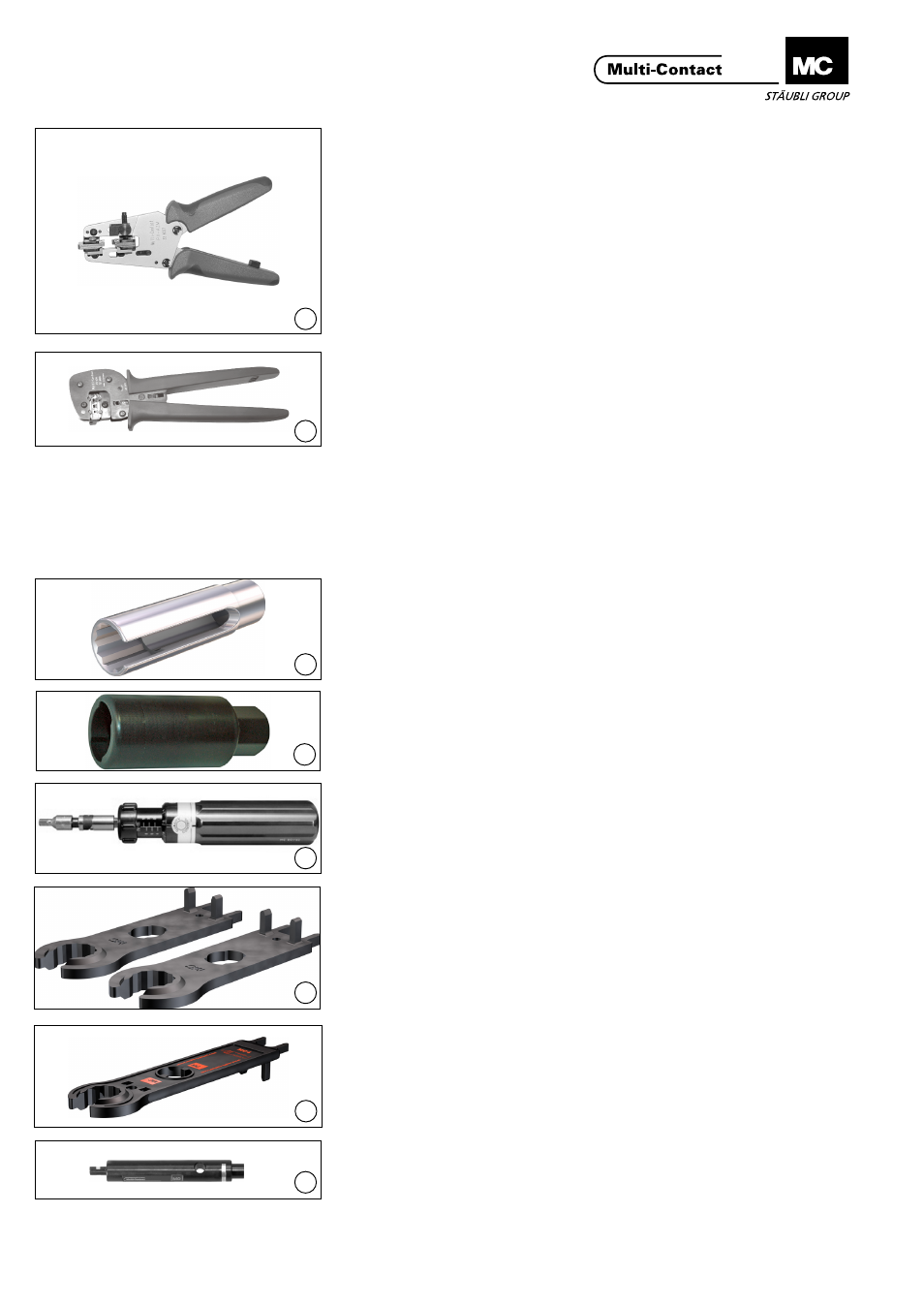

Erforderliches Werkzeug
Tools required
(ill. 1)
Abisolierzange
PV-AZM... inkl. einge-
baute Abisolier-Messer sowie Sechs-
kantschlüssel SW 2,5.
(ill. 1)
Stripping pliers
PV-AZM... incl. built-in
wire stripping blade as well as hex key
A/F 2,5mm.
Leiterquerschnitt: 1,5 / 2,5 / 4 / 6 mm²
Typ:
PV-AZM-1.5/6
Bestell-Nr.
32.6027-156
Cable cross section: 1,5 / 2,5 / 4 / 6 mm²
Type:
PV-AZM-1.5/6
Order No.:
32.6027-156
(ill. 2)
Crimpzange
PV-CZM... inkl. Locator
und eingebautem Crimpeinsatz
(ill. 2)
Crimping pliers
PV-CZM... incl. Locator
and crimping die
Crimpbereich:
1,5 / 2,5 / 4 mm² (14 / 12 AWG)
Typ:
PV-CZM-18100
Bestell-Nr.
32.6020-18100
Crimping ranges:
1,5 / 2,5 / 4 mm² (14 / 12 AWG)
Type:
PV-CZM-18100
Order No.
32.6020-18100
Crimpbereich:
2,5 / 4 / 6 mm² (14 / 12 / 10 AWG)
Typ:
PV-CZM-19100
Bestell-Nr.
32.6020-19100
Crimping ranges:
2,5 / 4 / 6 mm² (14 / 12 / 10 AWG)
Type:
PV-CZM-19100
Order No.
32.6020-19100
(ill. 3)
Steckschlüsseleinsatz
Typ:
PV-WZ-AD/GWD
Bestell-Nr.
32.6006
(ill. 3)
Socket wrench insert
Typ:
PV-WZ-AD/GWD
Order No.
32.6006
(ill. 4)
Steckschlüssel zum Kontern
Typ:
PV-SSE-AD4
Bestell-Nr.
32.6026
(ill. 4)
Socket wrench insert
Type:
PV-SSE-AD4
Order No.
32.6026
(ill. 5)
Drehmomentschlüssel ½“
Max. 6 Nm (Genauigkeit ± 6 %)
(ill. 5)
Torque wrench ½“
Max. 6 Nm (precision ± 6 %)
(ill. 6)
PV-MS Montageschlüssel
1 Set = 2 Stück
Bestell-Nr.:
32.6024
(ill. 6)
Open-end spanner
PV-MS
1 Order No. = 2 pieces
Order No.:
32.6024
(ill. 7)
PV-MS-PLS Montageschlüssel
Bestell-Nr.:
32.6058
(ill. 7)
Open-end spanner
PV-MS-PLS
Order No.:
32.6058
(ill. 8)
PV-PST Prüfstift
Bestell-Nr.:
32.6028
(ill. 8)
Test plug
PV-PST
Order No.:
32.6028
