EYEPIECE FOCUSING
The eyepiece can be focused so that the reticle appears sharp and
black to your eyes. Adjusting the focus is quick and easy to do. Just
follow this procedure:
1 Point the scope at the sky or a plain wall and take a quick glance
through the scope. If the reticle appears sharp and black, no
further adjustment is necessary.
2 If not, use quick glances through the scope while rotating the
eyepiece focus ring until the reticle pattern is sharp and clear.
NOTE: Do not look through the eyepiece as you turn the focus ring.
Your eyes will adjust to the out-of-focus condition.

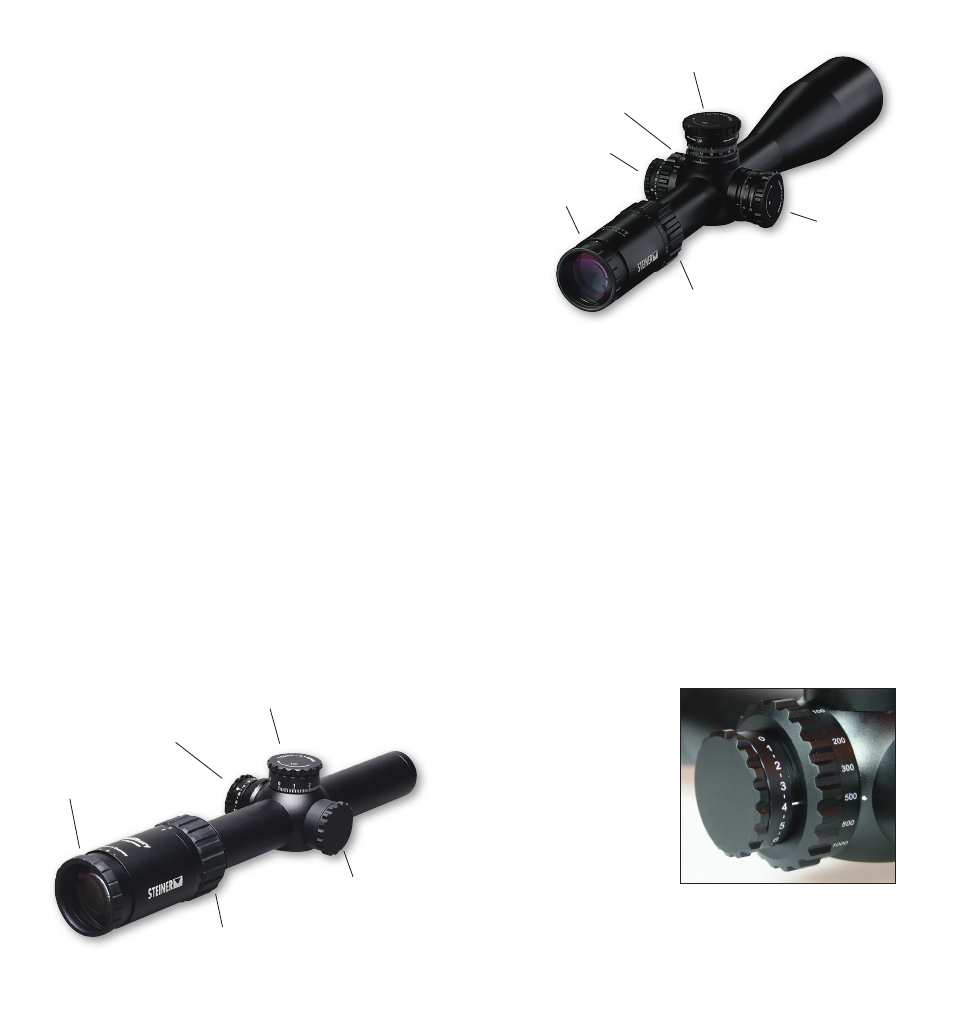

ILLUMINATED RETICLE ADJUSTMENT
The STEINER M5Xi
Riflescope features
an illuminated reticle
that makes it easier
to see the reticle in
low light conditions.
The intensity of the
illumination is con-
trolled by the rotary
illumination switch
located on the left
side of the adjustment turret. The switch has 11 intensity levels
and a “battery saver” position in between each level that turns
off the illumination..
INTRODUCTION
STEINER is one of the largest manufacturers of high-quality optics in
the world. STEINER products represent the highest level of precision
and technology. STEINER M5Xi Riflescopes were especially developed in
close cooperation with international weaponry experts for the tough re-
quirements of military missions around the world. They are field-tested
and combat proven by special forces and successfully withstand the
harshest conditions. STEINER M5Xi Riflescopes represent a new class in
terms of performance, quality and reliability. They are ideally suited for
tactical, military and law enforcement operations. This manual outlines
the basic operation and maintenance of the scope.
