The “Off” positions at the minimum and maximum ranges turn the
circuit off completely and should be used when the scope is not in
use. Each level also has a detent to prevent unintended changes
during use.
Positions 8-11 are for daylight operations. Positions 1-7 are used
during night-time operations. Positions 1-4 are suitable when util-
izing night vision devices.
The reticle is powered by a 3-volt lithium cell battery #CR2450.
To install a new battery, simply unscrew the battery cap on the
rotary switch and install the new battery flat side (+) up. It is
advisable to remove the battery for long term storage (over a
month).

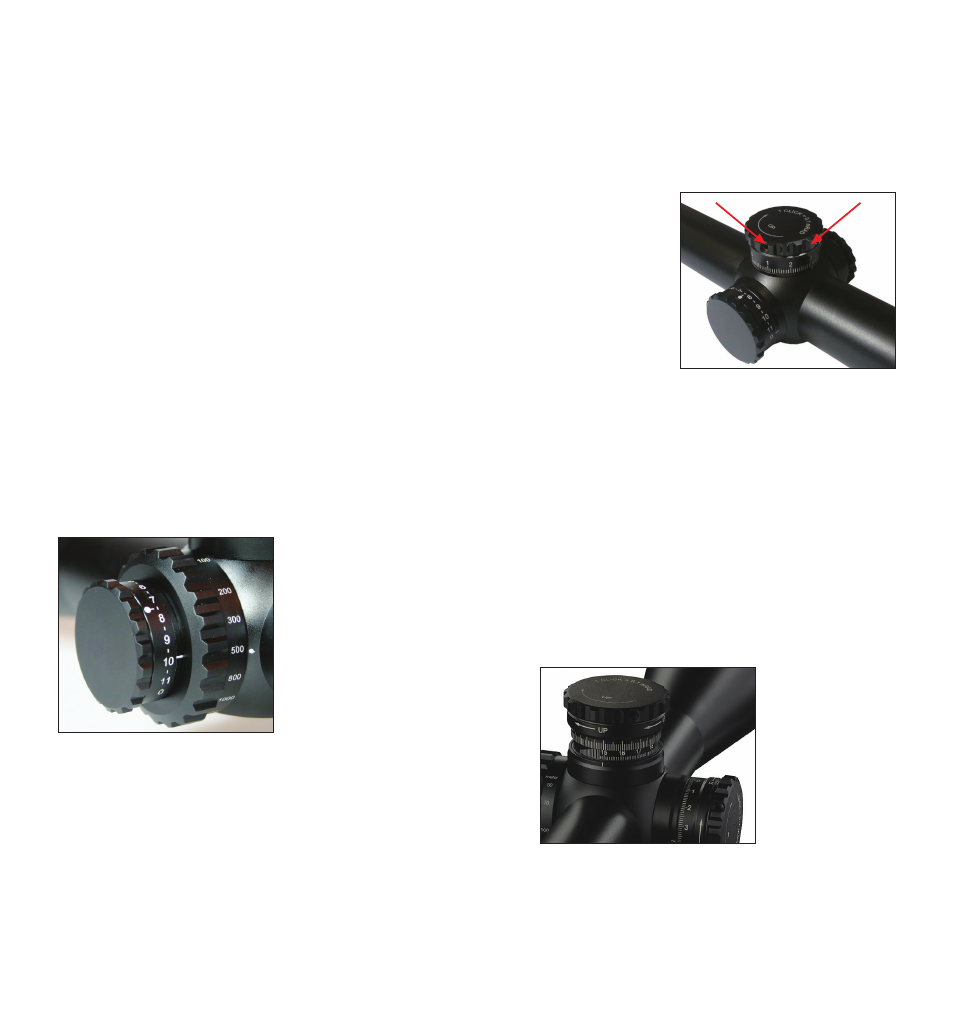

PARALLAX / FOCUS ADJUSTMENT
FOR M5Xi 1-5x24 mm:
The M5Xi 1-5x24 mm scope is adjusted parallax free at 100 m (fix).
FOR M5Xi 3-15x50 mm and 5-25x56 mm:
Parallax is the apparent movement of the reticle in rela-
tion to the target when the eye is not directly in line behind
the center of the
scope. Images from
different
distances
focus in front of or
behind the scope’s
reticle. Parallax is
more noticeable with
higher magnification
scopes and scopes
with a larger object-
ive lens.
To use the parallax/ focus adjustment, rotate the knob on the left
side of the adjustment turret until the numeral corresponding to
the known target distance lines up with the reference mark. If
the distance is unknown, rotate the adjustment knob until the
target image is sharply focused.
When the scope is set parallax free for the distance you are
viewing, you should be able to move your eye side-to-side or up
and down without seeing the reticle move appreciably in relation
to the target.
WINDAGE / ELEVATION ADJUSTMENT
FOR M5Xi 1-5x24 mm:
The windage and elevation knobs are designed for precise adjust-
ment. The dials are calibrated so that 1 click = 0.1 mRAD The eleva-
tion knob at the top of the tube provides 9.0 mRAD of adjustment
in one full turn and features a “0” stop. The windage knob, loc-
ated on the right side
of the tube, provides
up to +/- 16 mRAD of
adjustment in both
directions. The wind-
age knob is protected
by cap.
Both knobs can be
reset to “0” once the
scope is sighted-in. To reset the knobs to “0”, use the hex wrench
supplied with the scope to loosen the set screws located at the top
of the adjustment knobs.
The dial should spin freely. Rotate the knob until the “0” lines up
with the hash mark indicator, and then retighten the set screws.
The knob is not intended to come up or off, but if the set screws
are loosened too far, the knob can be removed. The scope is still
fully sealed if this does accidentally occur.
FOR M5Xi 3-15x50 mm ANd 5-25x56 mm:
The windage and elevation knobs are designed for precise adjust-
ment. The dials are calibrated so that 1 click = 0.1 mRAD.
The windage knob,
located on the right
side of the tube, is
calibrated for up to
6 mRAD of adjustment
left and right.
Adjustments are in-
dicated by detents
and audible clicks.
Hard stops at both ends of the adjustment range prevent shooters
from getting lost on the dial.
For shooting at extreme distances, the elevation knob offers up to
26 mRAD and two revolutions of adjustment.
