MOUNTING THE DATALINK MODULE
Mount the DataLink module in the cab ensuring easy access to the data card slot.
The module must be mounted, allowing the connecting cables to both the LH 5000 and
the LH DGPS module to be reached.

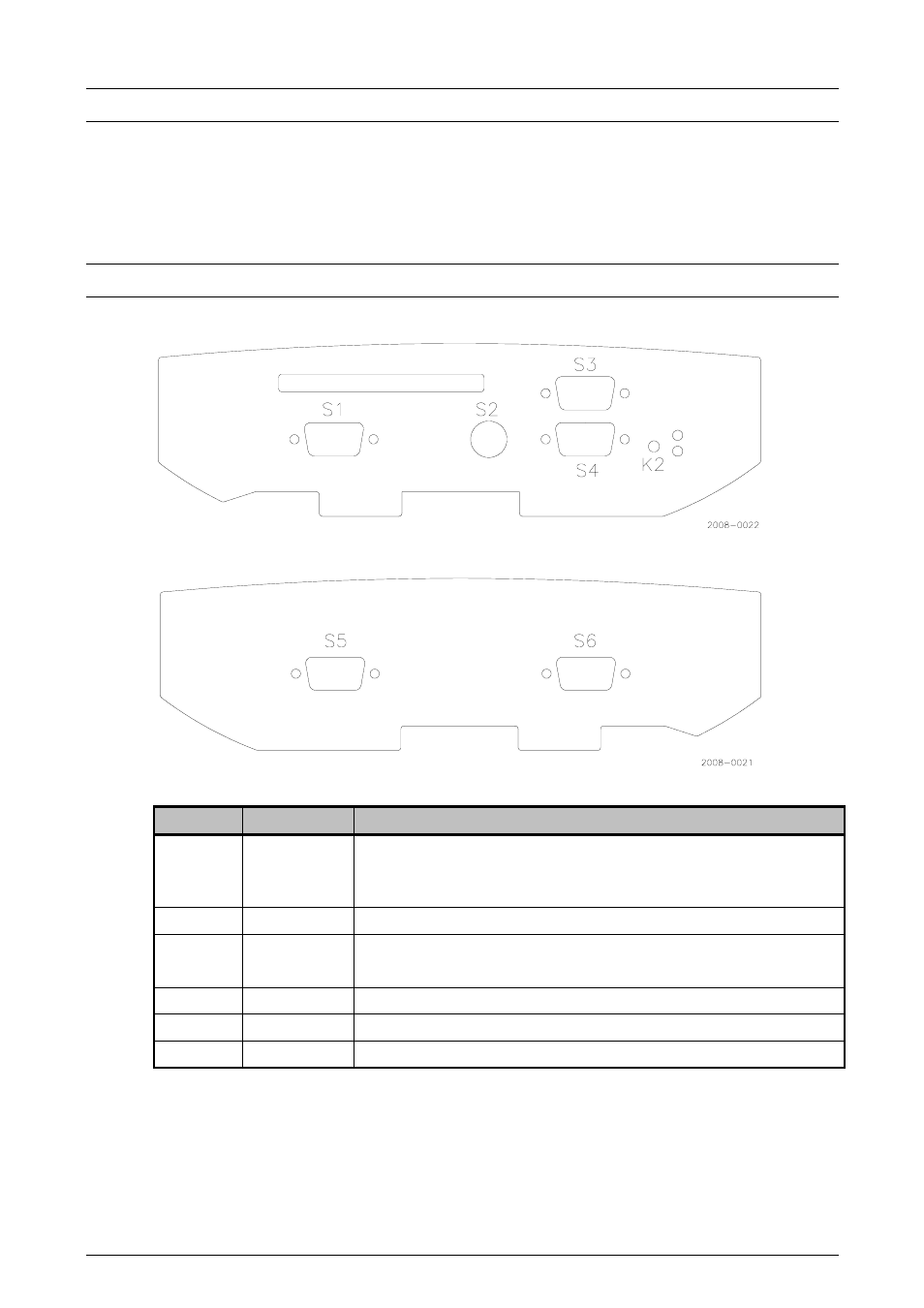

CONNECTIONS
Con. No. Description Connection
S1
LH 5000
LH 5000 system A plug
If the system A plug is used by other equipment, i.e. LH Printer
then use connecting cable (LH no. 197-130)
S2
Keyboard
Keyboard connector (used only for service)
Brown = +12V Blue
=
0V
S3 Power
Note! Non standard LH Agro colours!
S4
VGA
VGA screen connector (used only for service)
S5
GPS-Power Power connector for ”plug on” LH DGPS Module
S6
GPS in
DGPS-Module connector
Ensure that all connections are tightened.
