SNAXO Connection Sockets
Hi-Cap or Flatcap
power supply
Hi-Cap or Flatcap
power supply
Hi-Cap or Flatcap
power supply
low frequency 2
output
low frequency
output
low frequency 1
output
mid frequency
output
low/mid frequency
output
BMR output
high frequency
output
high frequency
output
4 SNAXO Connection Sockets

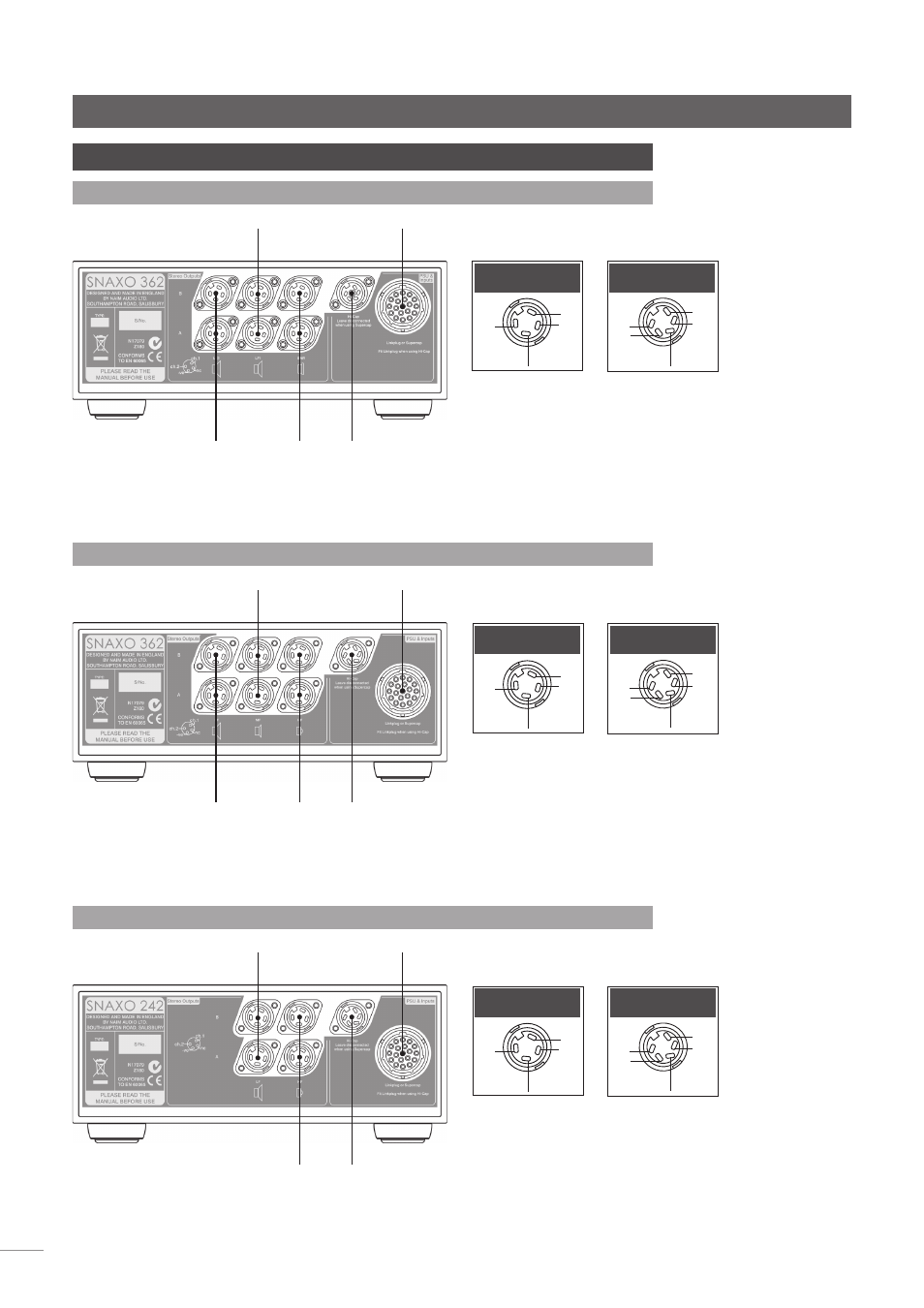

4.1 SNAXO 362BMR Rear (Ovator S-800, S-600 and S-400)
Supercap power
supply
Supercap power
supply
Supercap power
supply
4.2 SNAXO 362 Rear
4.3 SNAXO 242 Rear
4.1.1 Loudspeaker Connections
SNAXO Output Ovator S-800/S-600/S-400 Drive-unit
LF1 Upper bass drive-unit
LF2 Lower bass drive-unit
BMR Balanced Mode Radiator
4.2.1 Loudspeaker Connections
SNAXO Output Loudspeaker Drive-unit
LF Bass drive-unit
MF Mid-range drive-unit
HF High-frequency drive-unit
4.3.1 Loudspeaker Connections
SNAXO Output Loudspeaker Drive-unit
LF Bass/Mid-range drive-unit
HF High-frequency drive-unit
ch2
-ve
ch1
nc
Outputs
+ve
-ve
+ve
ch1
ch2
PSU/Input
ch2
-ve
ch1
nc
Outputs
+ve
-ve
+ve
ch1
ch2
PSU/Input
ch2
-ve
ch1
nc
Outputs
+ve
-ve
+ve
ch1
ch2
PSU/Input
