SNAXO Amplifier Connections
6 SNAXO Amplifier Connections

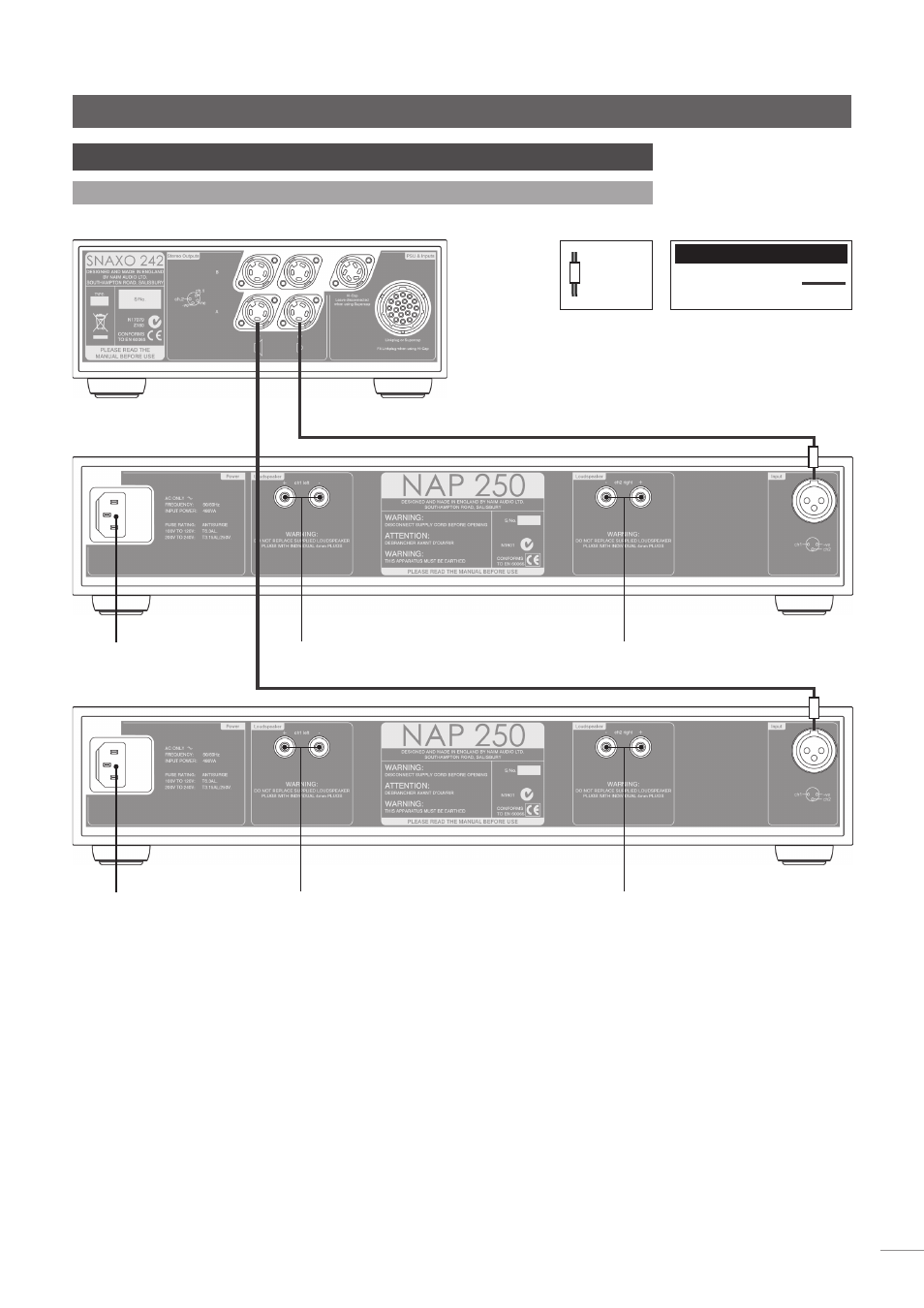

6.1 SNAXO 242 connected to 2 x NAP250
mains input
and fuse
mains input
and fuse
left
speaker HF
left
speaker LF
right
speaker HF
right
speaker LF
cable
direction
marker
(white)
4 pin DIN to XLR
Interconnect Cables
Connection to two NAP 150 XS or NAP 200s follows the same
principle as shown below but with 4 pin DIN
to 4 pin DIN cables.
