Status displays
G&D UCON-IP-NEO · 10
Back panel
Both the Network and the Transmission port provide additional status LEDs, which
indicate the following operating conditions:

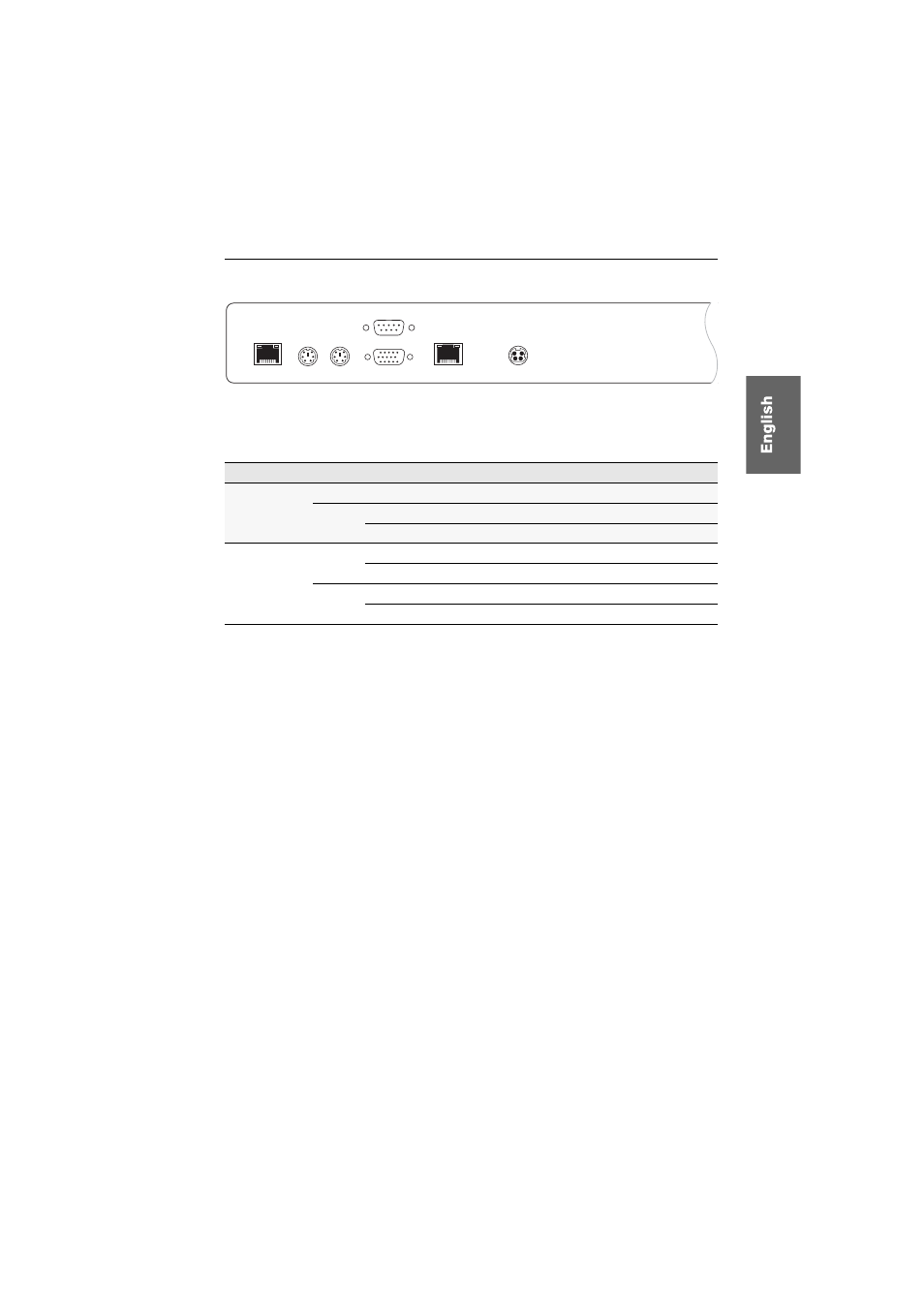

Figure 4: Left section of the back panel of the user module
Section LED Status Meaning
Network yellow blinking Indicates activity.
green on Established link.
blinking Link could not be established.
Transmission yellow on Port is used by another user.
off Free port.
green on Established connection to matrix system.
off No connection to matrix switch.
COM1
Network Red. Power Transmission Keyb. Mouse Monitor
