28

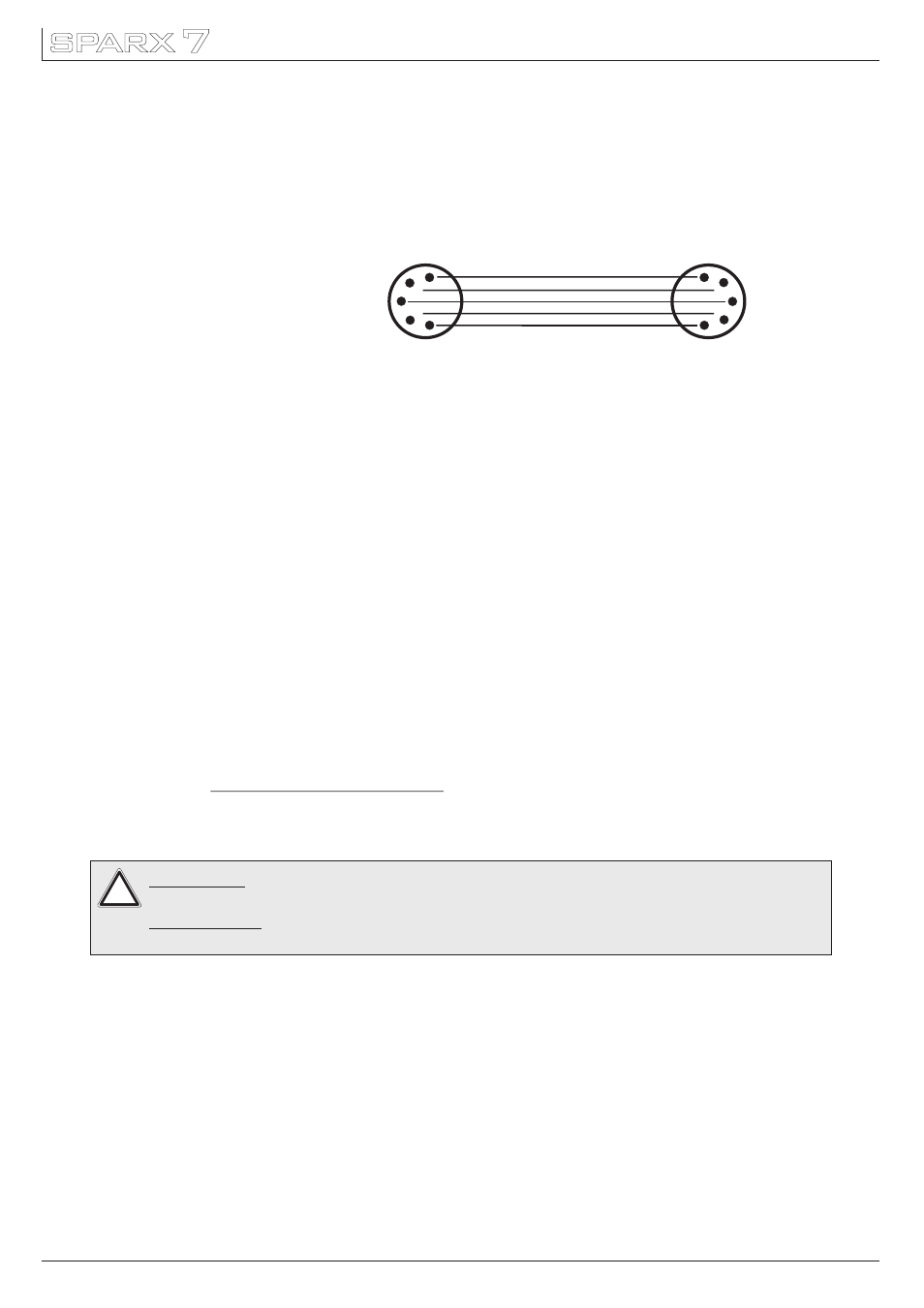

3.3 DMX wiring
The Sparx7 has 3pin and 5pin XLR connectors for DMX-in and DMX-out.
Do not connect more than one data input and one data output on a fixture.
4
2
3
4
2
3
5
1
5
1
Use a shielded twisted-pair cable with two pairs to connect the serial link. Connect all pins
if you want to upgrade the software in crossload. If a microphone cable (or any other cable
with only one pair) is used the software can not be updated via DMX line because pin 4
and 5 are not connected.
Pin assignment
Pin 1 = shield
Pin 2 = data -
Pin 3 = data +
Pin 4 = data out -
Pin 5 = data out +
shielded signal cable
Connect the DMX-out of the control desk to the first Sparx7 in line. (lighting control desk
DMX-Out / Sparx7 DMX-In). Connect the second Sparx7 to the first in line, and so on
(Sparx7 2 DMX-In / Sparx7 1 DMX-Out). All 3-pin and 5-pin connectors are wired parallel.
Do not use this fixture as a DMX splitter!
The DMX-Out of the last unit in line is not occupied unless problems occur. Then use a
termination plug with the last Sparx7 in line.(XLR-connector with a 120 Ohm resistor
soldered between pin 2 and pin 3). Problems might occur when the line is overloaded, e.g.
3.4 Installing a plug on the power cord
Install a plug like described in chapter 3.1.
Connected load: Voltage 100-240 Volts, frequence 50 - 60 Hz, power max. 350 VA
Connect the fixture to a proper installed grounded system only. If any doubts on the
electrical installations occur, consult a qualified electrician. In case of damages occuring
due to a not proper installed electrical system, warranty claims will be invalidated. Don´t
use fixtures when top cover is not fixed properly. Contact with electronic parts can result
in risk for life. (Electrical shock 100-240 V)
Connect fixture only after assuring that the electrical installation fits your demands. If any
doubts occur consult a qualified technician!
WARNING: Sparx7 might light up immediately if standalone mode is active
or DMX signal is connected!
ATTENTION: Le projecteur Sparx7 peut s'illuminé directement, lorsque le
mode standalone et activé ou si un signal DMX est programmé!
!
