4. Control panel

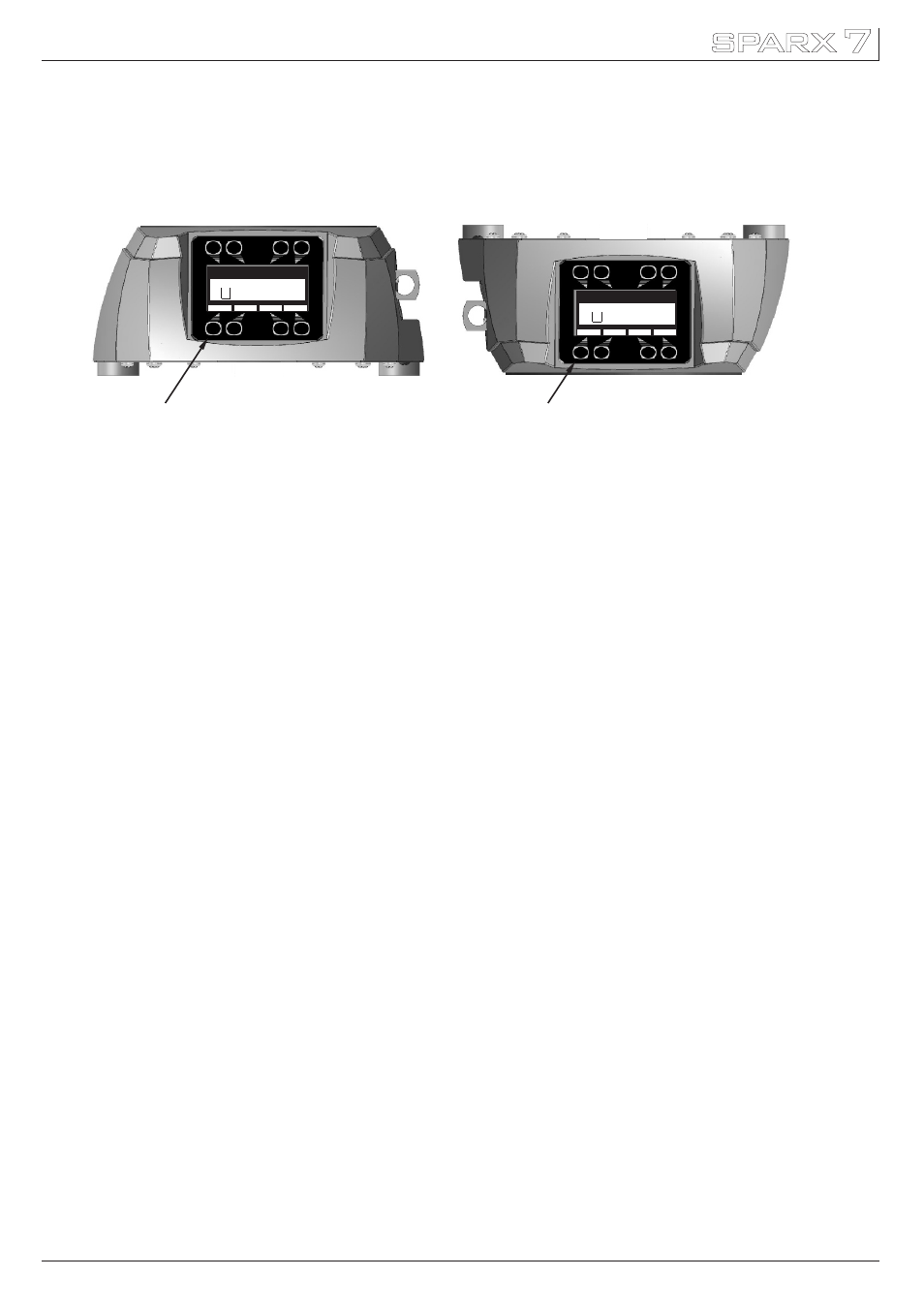

Rotating the display
The Sparx7 is equiped with a backlit graphic display, which can be rotated through 180
deg if the unit is installed upside down.
The orientation of the display relys to the keys which are being pressed. There are two
sets of keys located above and below the display and it orientates itself to the direction of
keys of which one key has been pressed. To adjust the personal setting of the Sparx7
zoom use keys located on the control panel. Functions see menu on the following page.
The Sparx7 can be addressed in the main menu. For addressing in a case, the reset can
be aborted by pressing the right base button during powering the fixture. The main menu
also informs about the DMX-mode. If wireless DMX is used, the field intensity from the
sender will be displayed.
Press "ENTER" to enter a menu, select a function or apply a selection.
Press keys "DOWN" and "UP" to scroll within a menu or set values.
To escape a function press key "ESC".
A few functions can be entered or recalled by means of a combination of two keys. For
example FINE ADJUST in the SERVICE area and
, and in the
STANDALONE. To enter these functions press “ENTER”, keep it down and press “ESC” in
addtion. To leave the menu press the combination in the revers order. Press "ESC" (keep
it down) and press "ENTER" in addition.
The main menu can be locked to avoid an accidental change of the configuration. To lock
press “ENTER” and keep it down and press “ESC” in addition. To unlock press "ESC"
(keep it down) and press "ENTER" in addition.
Special functions are assigned to the display lighting:
The display is not illuminated during reset. Slow flashing of the display illumination means
no DMX signal is connected. Fast flashing of the display illumination showing JB-Lighting
means a failure was reported and stored in the ERROR LIST (To clear - see menu navi-
gation on page 30). Fast flashing of the display illumination showing an error message
means an current failure is reported, e. g. *PAN TIMEOUT - please contact your dealer or
our service department. If the Sparx7 receives a DMX-signal the display illumination dims
out after 30 seconds in order not to irritated during standard operation.
