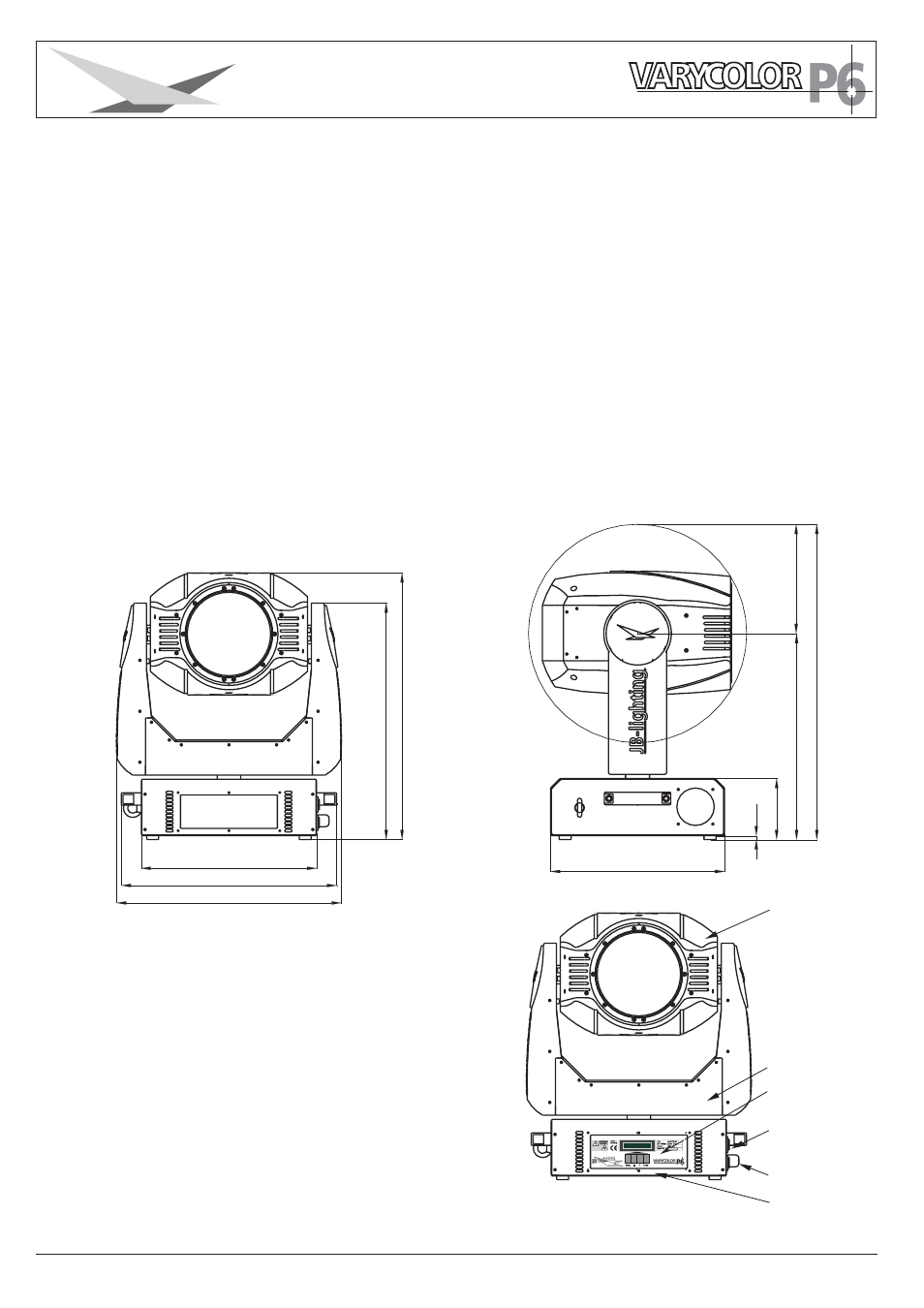

1.3 Technical data
weight: 32Kg
Power connection: 230V 50Hz
Power consumtion: 3,9A
light source: OSRAM HMI 575 GS
max.
ambient temperature: 40°C
DMX connectors
base
arm
head
control panel
mains connection
1. Indroduction
1.1 General Remarks
The Varycolor P6 575HMI is equipped with 7 colours plus white, CMY-colour mixing system,
dimmer, shutter, beamshape and a progressive frost filter plus zoom.
The pan and tilt movement can opperate in 8bit or 16bit mode, depening on the lighting
control desk in use.
1.2 Unpacking
Open the top of the box and remove the inlays from the head and base.
Remove the unit from the box.
For any damage occuring during transport, report to the transport company
immediately.
368
452
471
496 559
226
426
652
360
126.5
8
