5. Service

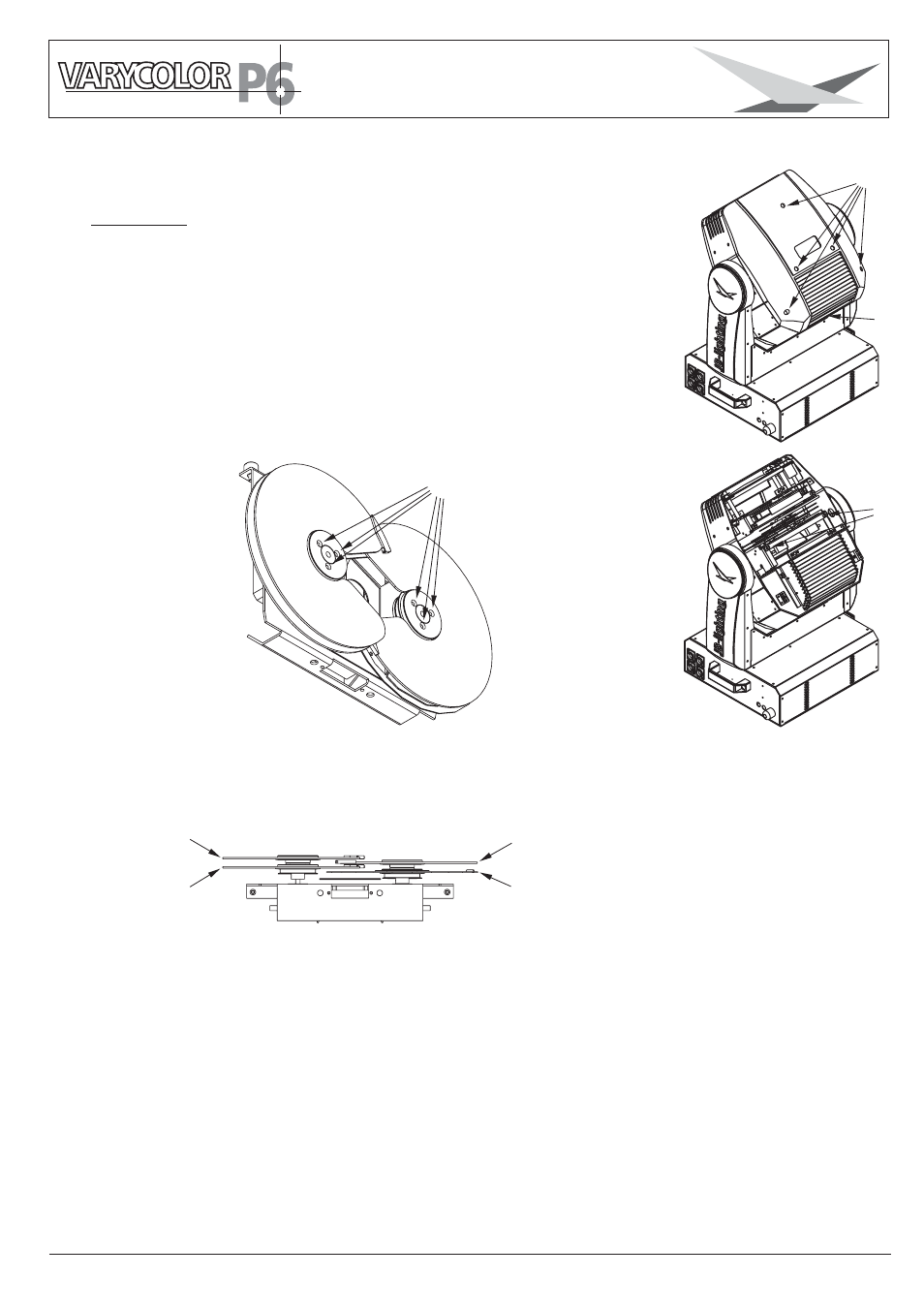

5.1 Colour wheel replacement
WARNING: Disconnect fixture from mains, and allow
hot lamp to cool down for at least 30 minutes!
Position head in horizontal position. Hinge no. 1 must be on the
upper side of the head. Turn screws no. 5 1/2 turn left and remove
plastic lid.
Loosen knurled head screw no. 3 and remove the slide-in module
with the CMY-colour wheels.
Open screws no. 4 to replace the colour wheels.
4
Order of the colour wheels
colour wheel 7 colours
cyan
magenta
yellow
1
2
3
