lamp

nipple

knurl nut

21

JB-lighting Lichtanlagentechnik GmbH Sallersteigweg 15 D-89134 Blaustein Telefon +49 (0)7304-9617-0

With the nipple of the lamp facing the back insert the
lamp into the socket. Push the lamp forward to the maximum.
Tighten the knurl nut to fix the lamp.

.

When changing the lamp, remove old lamp from
lamp socket. Hold the new lamp only by its
metal base. Never touch the glass bulb.
Insert the new lamp in the lamp socket.

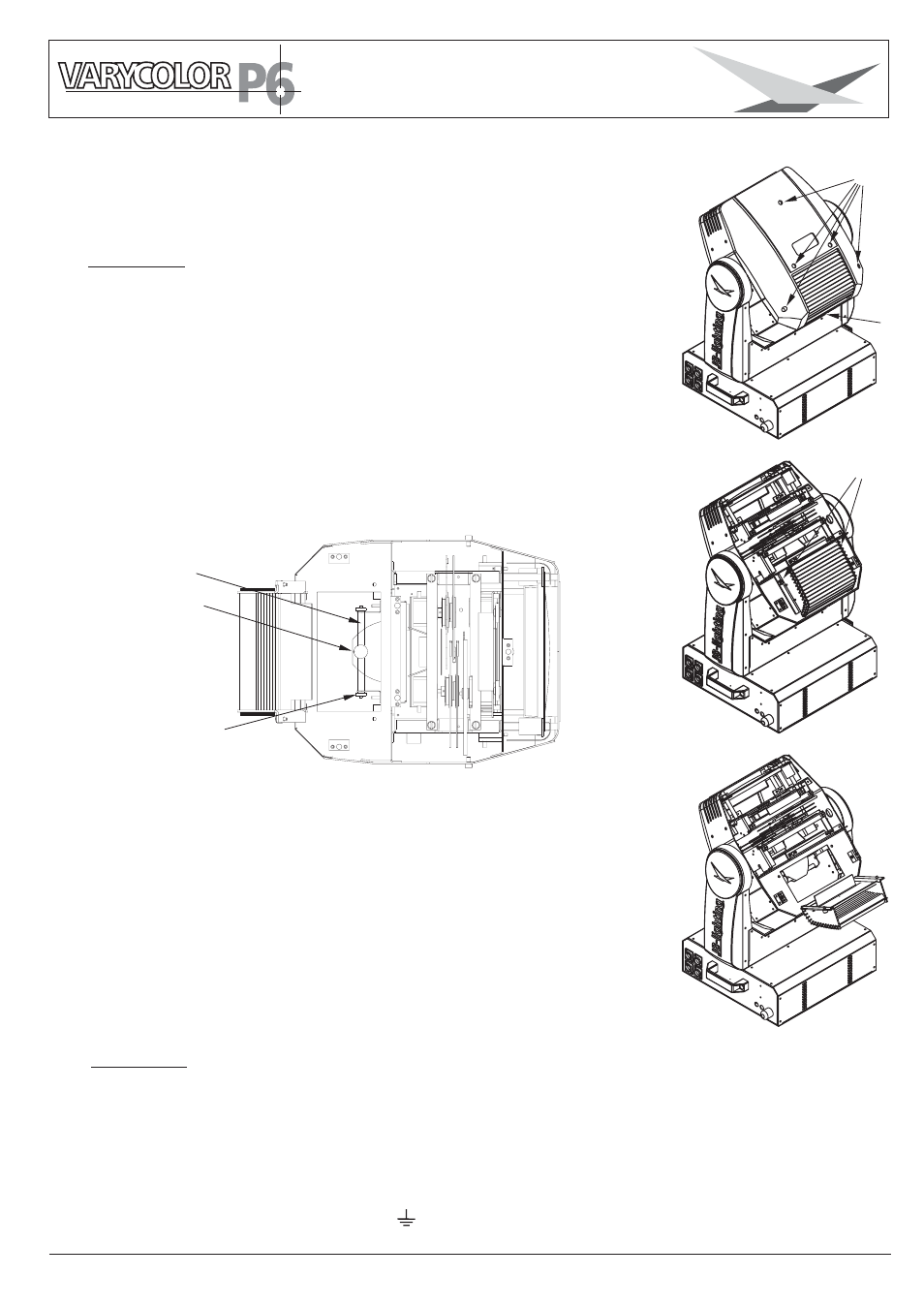

2.1 Installing or changing the lamp

WARNING: Disconnect fixture from mains, and allow

hot lamp to cool down for at least 30 minutes!

2. Installation

Position head in horizontal position. Hinge no. 1 must be on the
upper side of the head. Turn screws no. 5 1/2 turn left and remove
plastic lid.

.

Loosen knurled head screw no. 3 and open the lampcover

Light source: OSRAM HMI 575 GS

Install a 3-prong gounding type plug that fits your supply
Connected load: voltage 230V, frequency 50Hz

WARNING: To ensure propper installation of the plug consult a qualified

technician!

2.2 Powering the fixture

brown

live

“L”

blue

neutral

“N”

yellow/green gound

1

2

3
