Teilebezeichnungen und Funktionen
HINWEIS
• Berühren Sie nicht die inneren Anschlusskontakte
auf der Rückseite. Elektrostatische Entladung
könnte das Gerät beschädigen.
• Stecken Sie nicht Ihren Finger oder Fremdkörper
in die Lüfteröffnung. Dies kann zu Verletzungen
oder Geräteschäden führen.
• Während der Lüfter läuft, kann es zu einem leisen
Lüftergeräusch kommen.

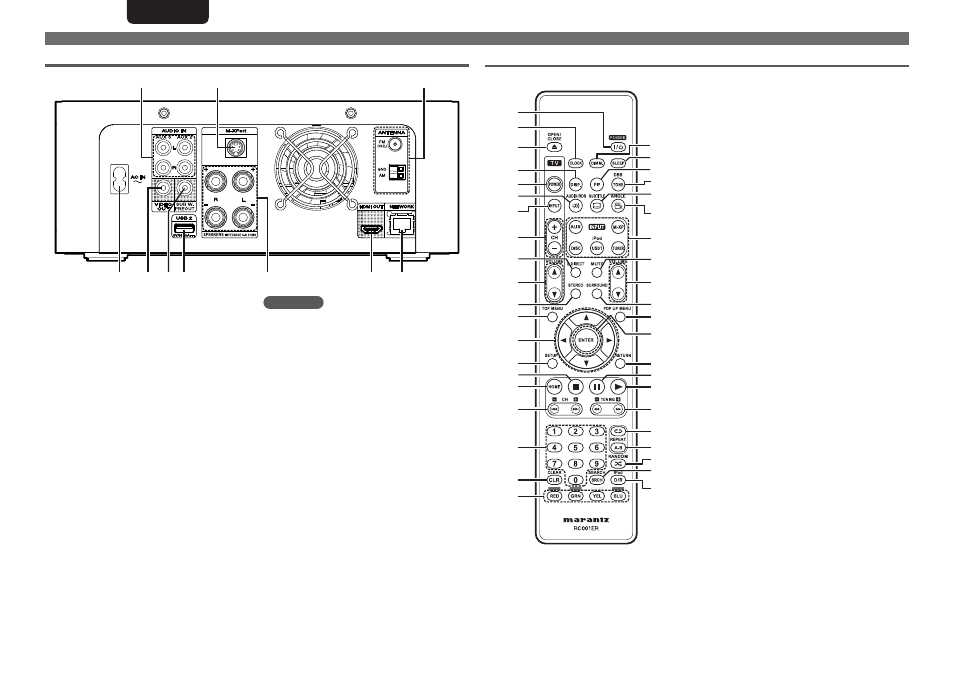

Rückseite
i
o
Q0
q
w
t
e r
y
u
q
AC-Eingang (AC IN) ···································· (11)
w
VIDEO OUT-Anschluss ································· (9)
e
PREOUT-Anschluss (SUB.W) ······················· (8)
r
USB2-Anschluss ········································· (26)
t
Lautsprecheranschlüsse ······························ (8)
y
HDMI OUT-Anschluss ·································· (9)
u
NETWORK-Anschluss ································ (27)
i
UKW/MW-Antennenanschlüsse ··············· (10)
o
M-XPort-Anschluss ···································· (11)
Q0
Analog-Audioanschlüsse
(AUX2, AUX3 IN) ···································· (9, 10)
Fernbedienung
Q0
Q2
Q3
Q4
Q7
Q8
Q9
W0
Q6
Q5
i
o
Q1
u
t
y
r
e
w
q
E8
W1
W2
W3
W5
W4
W6
W7
W9
E1
E3
E4
E5
E6
E7
E2
E0
W8
R0
R1
E9
q
Ein-/Aus-Schalter (POWER) ··········· (12, 14, 39)
w
CLOCK-Taste ··············································· (14)
e
Taste Disc-Tablett öffnen/schließen
(OPEN/CLOSE
5) ········································ (16)
r
Display-Taste (DISP.) ·································· (15)
t
TV POWER-Taste ········································ (40)
y
AUDIO/RDS-Taste ································ (21, 23)
u
TV INPUT-Taste ·········································· (40)
i
Fernsehkanaltasten (TV CH +/–) ··············· (23)
o
Klangregler aus-Taste (S.DIRECT) ············ (13)
Q0
Tasten für die Fernseh-Lautstärkeregelung
(TV VOLUME
df) ······································· (40)
Q1
STEREO-Taste ············································· (21)
Q2
TOP MENU-Taste ······································· (16)
Q3
Pfeiltasten (
uio p) ························· (34 – 37)
Q4
SETUP-Taste ····················· (14, 22, 24, 38 – 40)
Q5
Stopptaste (
2) ············································ (18)
Q6
HOME-Taste ·········································· (31, 34)
Q7
Rückwärts-/Vorwärts-Tasten
(
8/9) ············································· (13, 19)
Kanaltasten (CH +/–) ·································· (23)
Q8
Zahlentasten ··································· (23, 35, 37)
Q9
CLEAR-Taste ··································· (19, 22, 23)
W0
RED/GRN/YEL/BLU-Taste
W1
iPod Direct/Remote-Taste (iPod D/R) ······ (28)
W2
SEARCH-Taste ············································ (19)
W3
RANDOM-Taste ·········································· (20)
W4
REPEAT A-B-Taste ······································ (20)
W5
REPEAT-Taste ············································· (20)
