How to make settings through a terminal
1. Make sure the power is off (’PWR’ LED off).

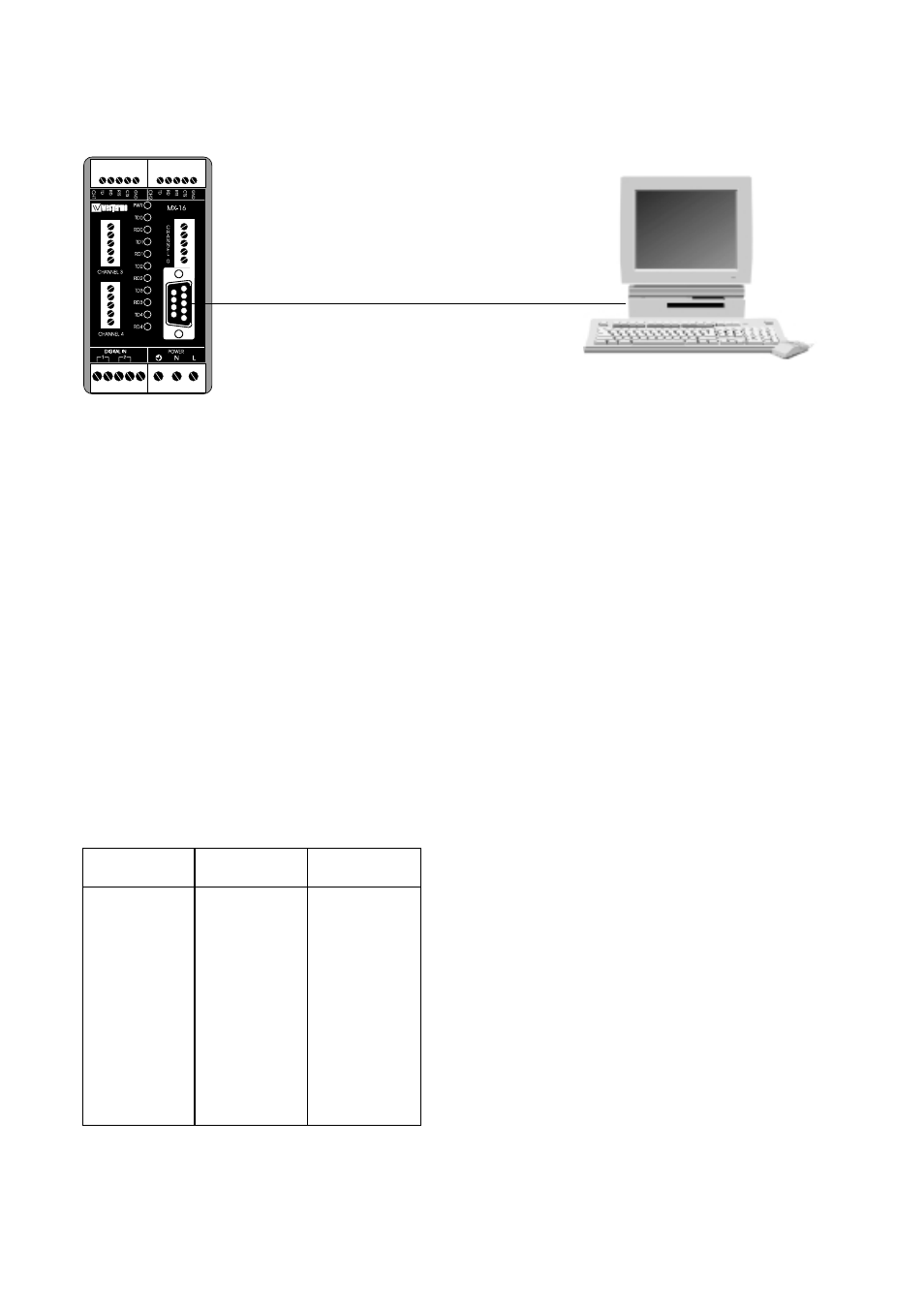

2. Connect communication-cable between CH0 (D-sub) and terminal (9 600 bit/s [8N1]).
3. Set switch 1:2 ON
4. Connect power cable
A menu should appear on the screen. It is now possible to make settings.
After settings have been made:
Note! Remember to save settings before disconnecting power cable.
5. Disconnect power
6. Set switch 1:2 OFF
MX-16
PC 9-pos
PC 25-pos
1
1
8
2
2
3
3
3
2
4
4
20
5
5
7
6
6
6
7
7
4
8
8
5
9
9
22
You will need a modem cable to program the MX-16
