3. Fixing

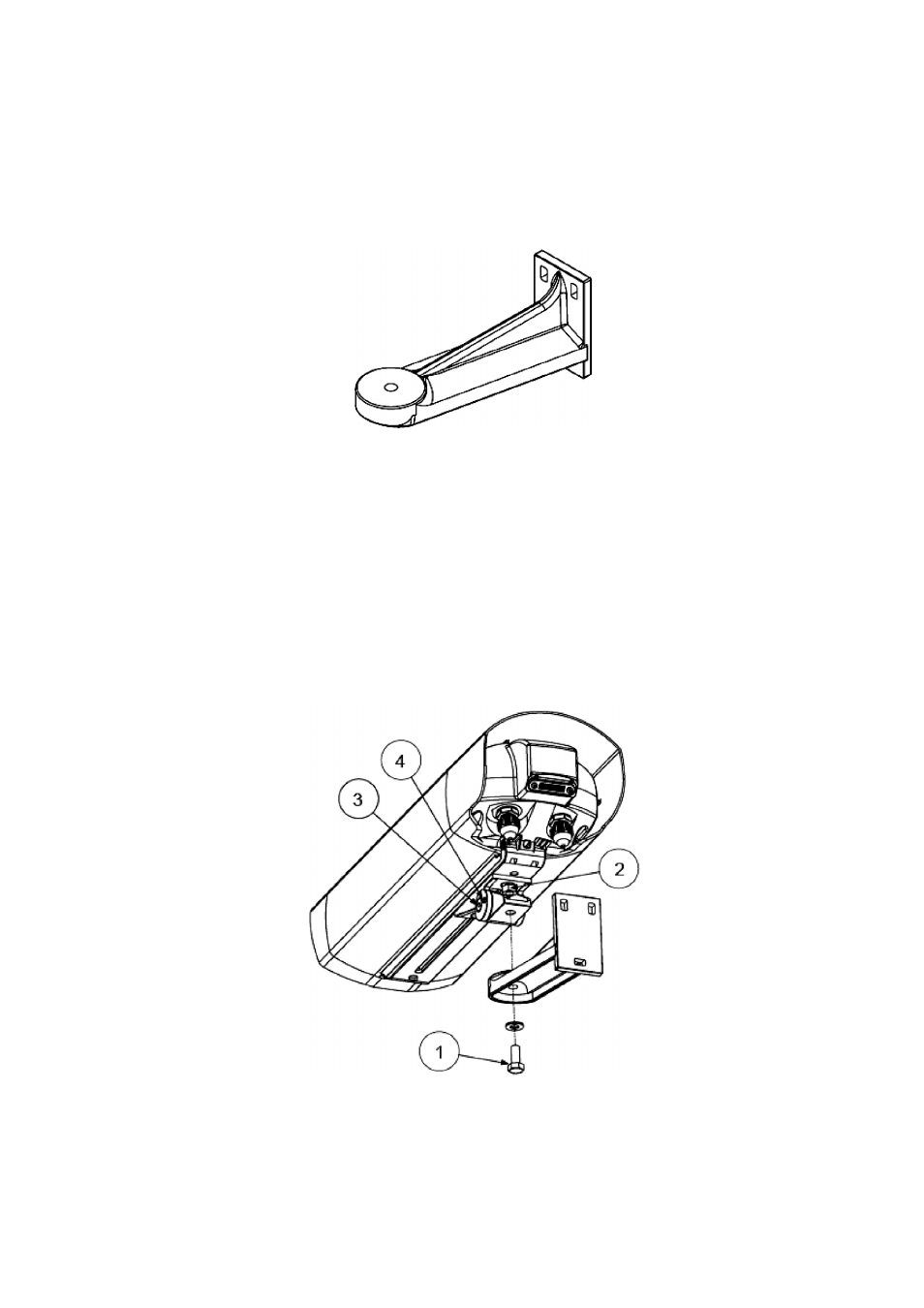

3.1 Fixing the Bracket to the Wall
• Place the bracket in its intended position against the wall.
• Mark the points for the fixing holes.
• Drill the fixing holes accounting for the building material of the wall and type of expansion bolt required.
• Fix the bracket on the wall.
3.2 Fixing of the Housing to the Bracket
• Using the screw () and the nut () supplied with the housing, fasten the swivel head to the bracket which was previously fixed to the wall.
• To make this operation easier it might be necessary to loosen the screw (3) and turn the internal part of the swivel head by 90°.
• At this stage the housing can be set in countless positions.
• When the desired position has been obtained, tighten the screw () to lock horizontal movements, the screw (3) to lock the vertical ones and the screw (4) to ensure
perfect vertical locking.
