4

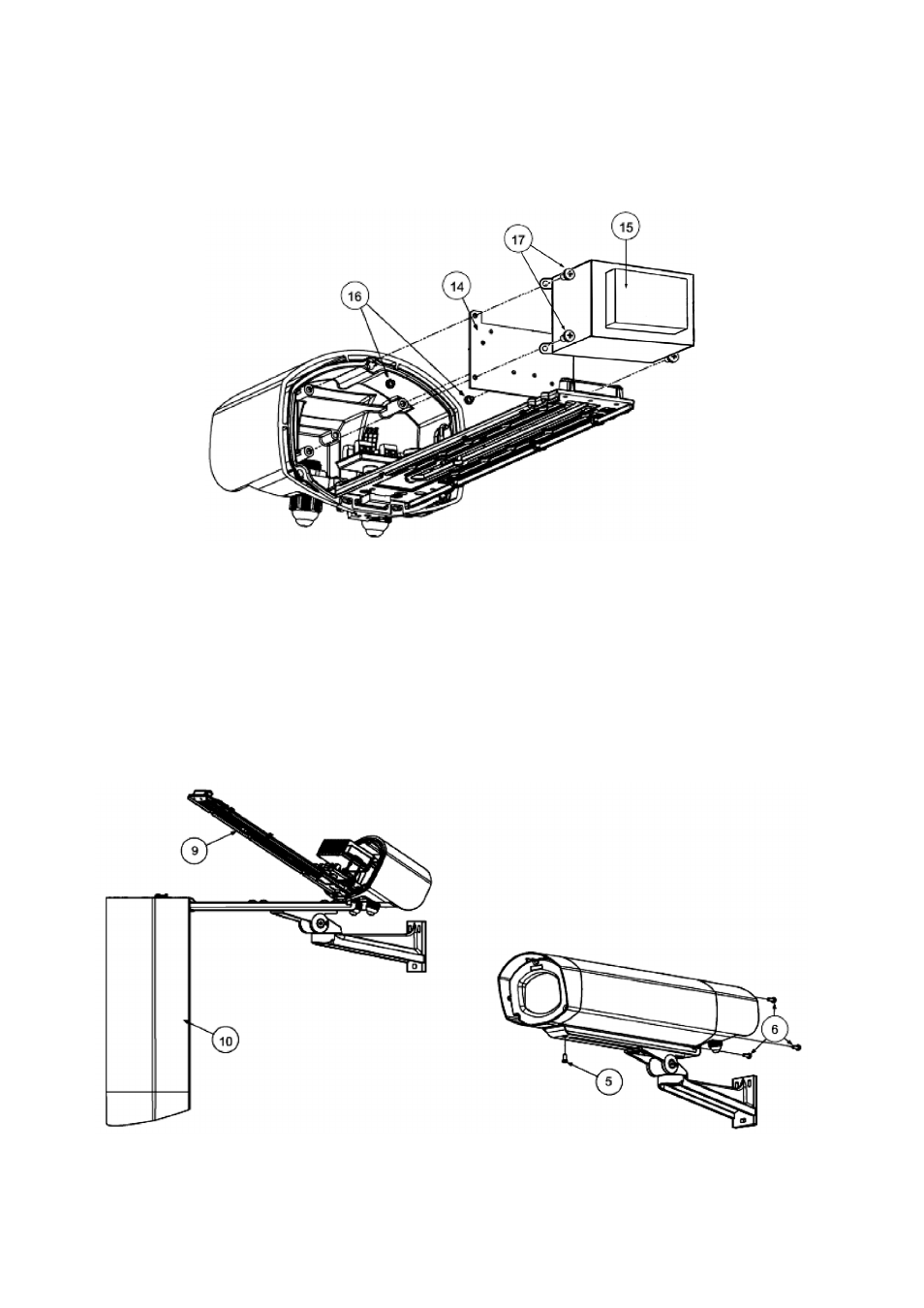

4.5 Fastening the Power Supply Unit
• Fasten the power supply unit (5) to the plate (4) using the screws (6) provided.
• Fasten the assembly plate/power supply unit to the back cover of the housing using the screws (7) provided.
• Wire up the electrical connections following the diagram on page 5
4.6 Housing Closing
• Close the housing by carrying out the opening operations in reverse.
• Slide the body (0) backwards until it fits the back cover and make sure that the inner slide (9) is in the correct position.
• Re-connect the earthing cable.
• Fasten the body (0) to the back cover by tightening the 3 screws (6), then tighten the outer slide fixing screw (5).
