Eneo EHL-W/ECLKA - Handbuch (Seite 13)

3
4.3 Camera Installation

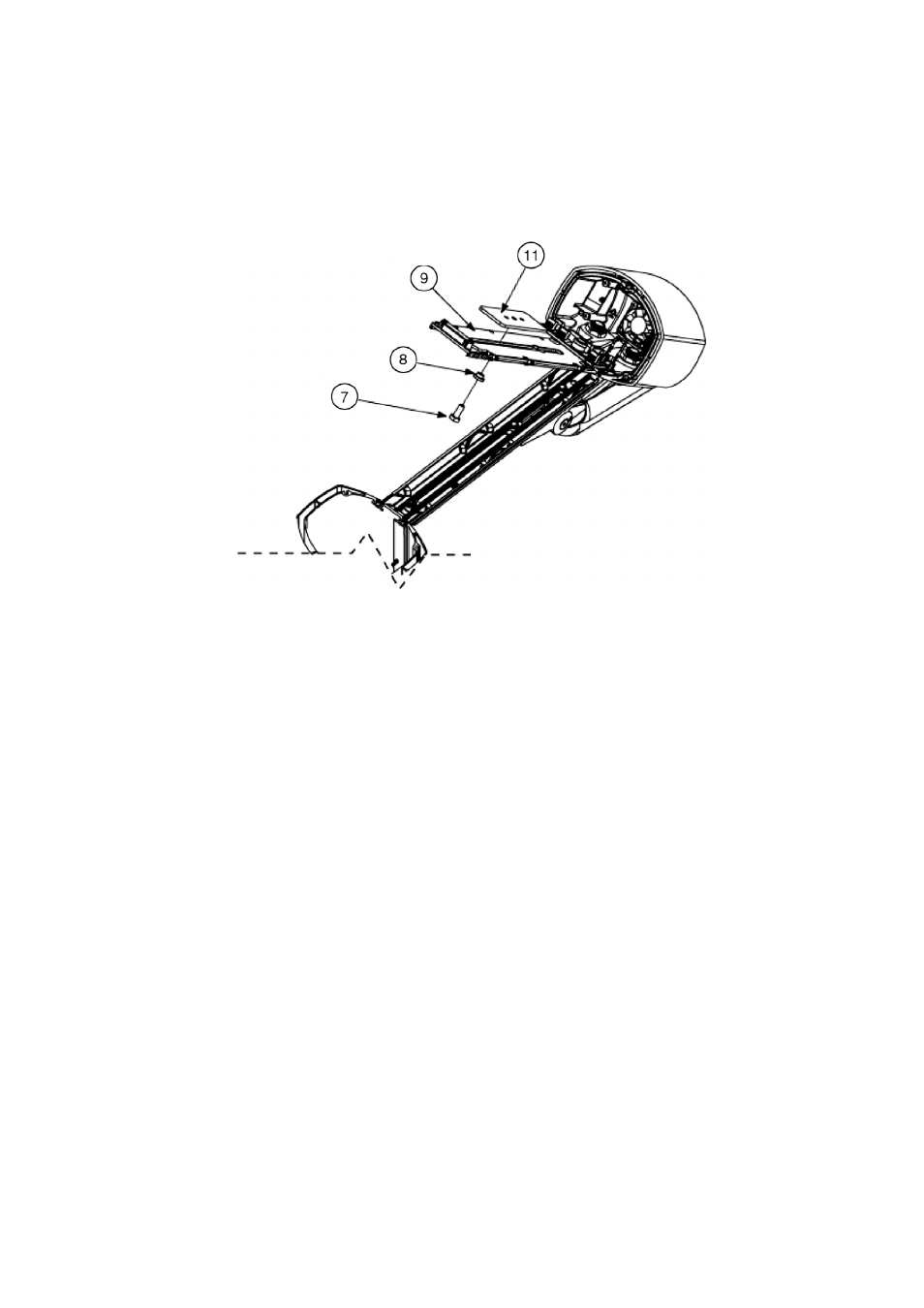

• Fix the camera to the internal slide (9), using the /4” screw (7) and the insulating washer (8) that are supplied with the housing.
• To provide optimum insulation and grip between the camera and the slide, use the foam pad () supplied with the housing. Thanks to its adhesive surface, the pad
can be stuck either to the slide or to the camera; in the second case the position of the camera can be changed.
NOTE: Should additional adjustment of the camera height be required, the base panels from the SU-6 kit (#79604, Accessories) should be used..
4.4 Electrical Wiring
• Wire up the electrical connections following the diagram on page 5
• Any surplus cable should be coiled up outside the housing, then tighten the hexagonal nuts on the cable glands that were previously loosened.
CAUTION: Recommended tightening torque for the cable gland locknut is 5Nm.
