8 LSHB 150 A1
GB
CY
Electrical connection
WARNING
This appliance falls under Protection Class I.
► The earth wire (green/yellow wire) must be connected to the point
marked
.
♦ Switch the electrical circuit off and secure it against unintentional reactivation.
♦ Unscrew the four screws at the rear of the connection box and remove the
cover.
♦ First, pull a cable through the cable entry 9 into the connection box and
secure it to the available cable strain relief.
♦ Connect the cable to the terminals, as shown in the connection diagram.
♦ Replace the cover of the connection box and screw it down fi rmly.
♦ Now switch the power supply back on.
N L
X
Brown or black wire (L)
Blue wire (N)
Green/yellow wire ( )

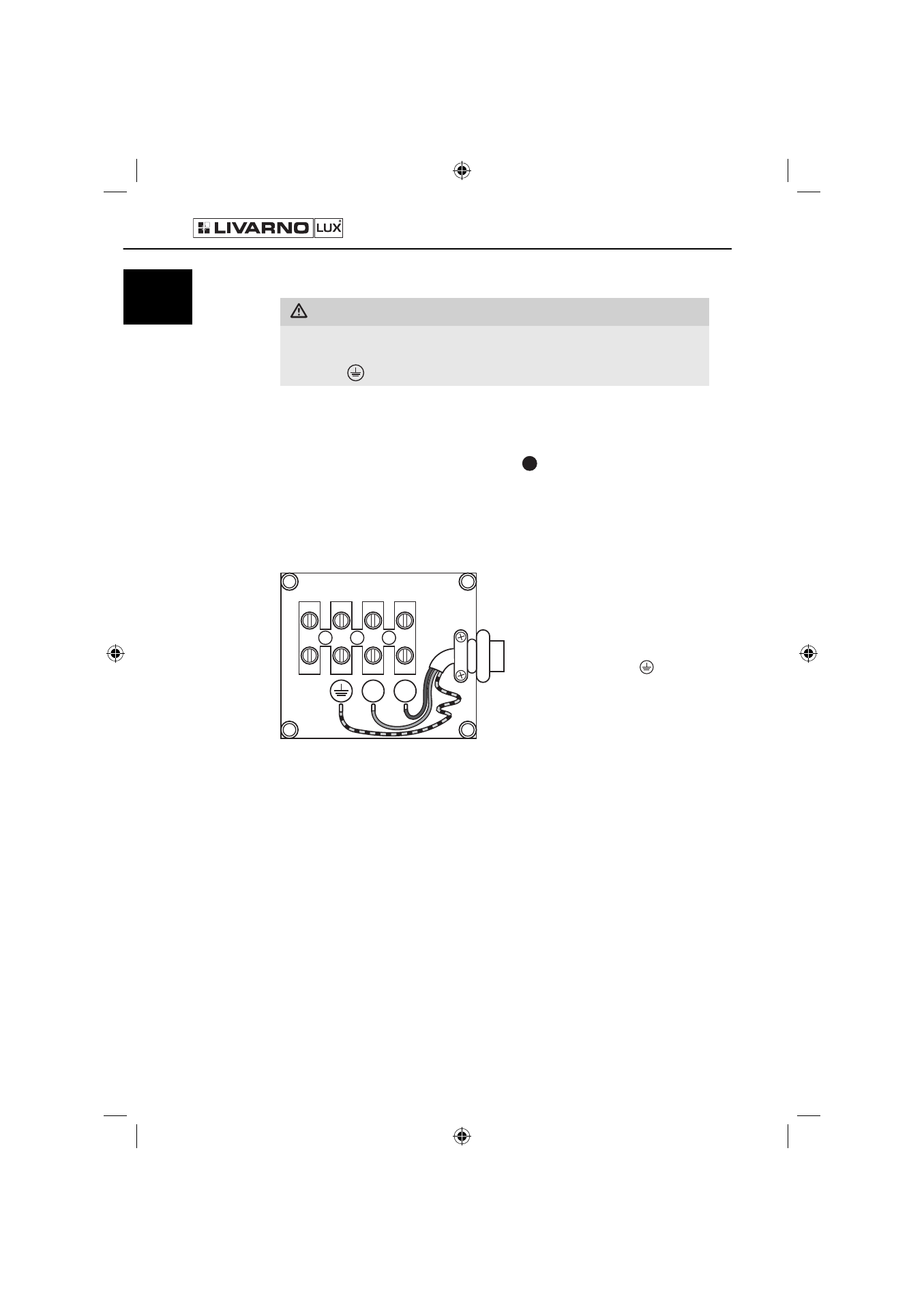

Fig. Terminal diagram
