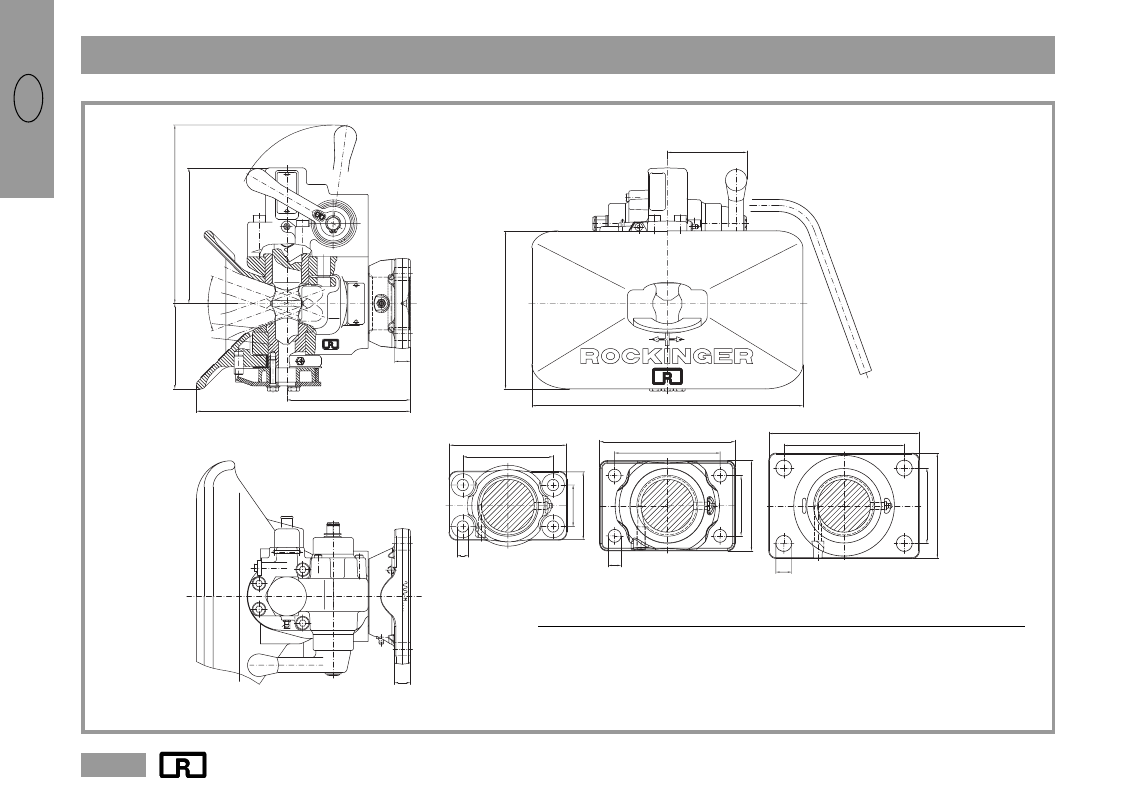

4 4.. T Te ec ch hn niis sc ch he e D Da atte en n R RO O i i 8 84 41 1 B B
RO i 841 B
Bestell a b c d e f
Nr. (mm) (mm) (mm) (mm) (mm) (mm)
841B 30 120 55 15 155 90 16
841B 40 140 80 17 180 120 21
841B 50 160 100 21 200 140 20
