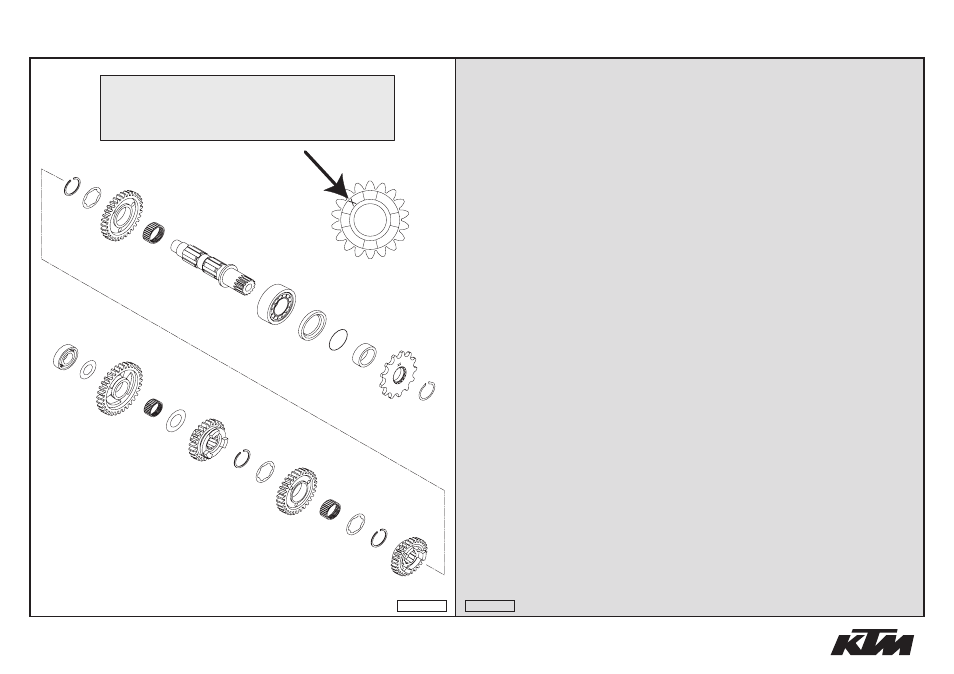

GETRIEBE II - ABTRIEBSWELLE
»
TRANSMISSION II - COUNTERSHAFT 250 SX, 300 MXC / 2005
* NEUTEIL / NEW PART X NACH BEDARF / AS REQUIRED
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
7 548.33.007.000 ABTRIEBSWELLE 2003 COUNTERSHAFT 2003 1
11 548.33.011.000 LOSRAD 1.G 28-Z "1S28" IDLER GEAR 1ST G. 28-T "1S28" 1
12 548.33.012.100 LOSRAD 2.G 26-Z "2S26" IDLER GEAR 2ND G. 26-T "2S26" 1
13 548.33.013.000 LOSRAD 3.G 24-Z "3S24" IDLER GEAR 3RD G. 24-T "3S24" 1
14 548.33.014.000 SCHIEBERAD 4.G 24-Z "4S24" SLIDING GEAR 4TH G.24-T "4S24" 1
15 548.33.015.000 SCHIEBERAD 5.G 21-Z "5S21" SLIDING GEAR 5TH G.21-T "5S21" 1
16 546.33.096.000 AXIALSICHERUNG 25X1,64 AXIAL-CIRCLIP 25X1,64 3
21 0405 202413 NADELKRANZ K20X24X13 NEEDLE BEAR. K20X24X13 1
22 0405 242812 NADELKRANZ K24X28X11,9 GETEILT NEDDLE BEAR. K24X28X11,9 DIV. 1
23* 0405 222613 NADELKRANZ K 22X26X13 TN NEEDLE BEAR. K 22X26X13 TN 1
25 548.33.025.000 RILLENKUGELL.TM-SC05C20C4 NTN BALL BEARING TM-SC05C20C4 NTN 1
26 0625 062035 RILLENKUGELL. 6203 JR2 C3 BALL BEARING 6203 JR2 C3 1
28 520.33.096.000 SICH.RING DIN0471-25X1,64SD LOCK RING DIN0471-25X1,64SD 1
29 500.33.029.013 KETTENRAD 13-Z SPROCKET 13-T 1
29 500.33.029.014 KETTENRAD 14-Z SPROCKET 14-T 1
29 500.33.029.015 KETTENRAD 15-Z SPROCKET 15-T X
30 590.33.030.000 ANLAUFSCHEIBE 25,2X32X1,5 STOP DISC 25,2X32X1,5 2
31 560.33.030.000 ANLAUFSCHEIBE 17,2X30X1 STOP DISC 17,2X30X1 1
32 548.33.032.011 DISTANZHÜLSE ABTRIEB 2003 SPACER SLEEVE DRIVE END 2003 1
33 0760 324565 WELLENDICHTRING 32X45X6,5 BTSL SHAFT SEAL RING 32X45X6,5 BTSL 1
35* 0770 248022 O-RING 28,80X2,20 P431 NBR 70 O-RING 28,80X2,20 P431 NBR 70 1
41 590.33.080.000 SCHEIBE 20X32X1 SHIM 20X32X1 1
43 503.33.043.000 ANLAUFSCHEIBE 25,2X32X1 STOP DISC 25,2X32X1 1
05-548.33.3
18
7
bl
bm
bn
bo
bp
bq
bq
bq
cl
cm
cn
cp
cq
cs
ct
dk
dk
dl
dm
dn
dp
el
en
ACHTUNG !!!
Bei Bestellung von Getrieberädern, Markierung beachten.
CAUTION !!!
When ordering transmission gears, check marking.
