5
EN
1. 4 Unscrew the cover screws on the DC
junction box 15 - 30
2. Remove the cover
3. Remove the breather plug (1)
4. Insert PG 16 screw joint into the
opening
The PG 16 screw joint is not included
in the ‘Grounding Kit Fronius IG’
installation set.
1. Undo screws (1) and (3)
2. Slide terminal holder (2) to the right
WARNING! Work performed incorrectly can cause serious injury and damage.
The following activities must only be carried out by qualified electricians!
Adhere to the safety rules in the operating instructions of the inverter and the
operating instructions of the DC junction box.
Always install the ‘Grounding Kit Fronius IG’ in the DC junction box before
connecting the DC junction box and the inverter.

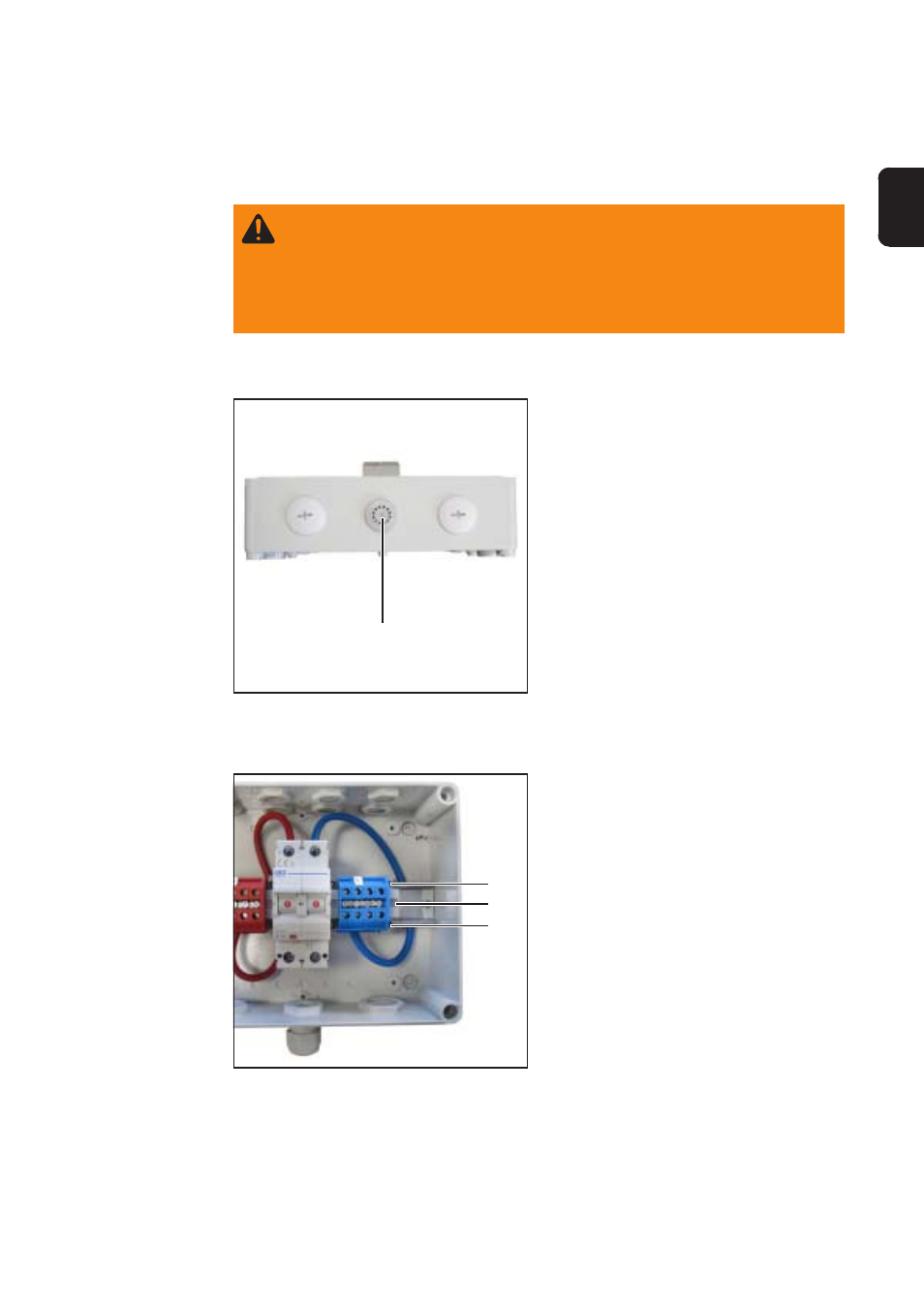

Removing the breather plug
Undoing the terminal holder
Installing the ‘Grounding Kit Fronius IG’ in the DC
junction box 15 - 30
Safety
Preparations
Installing the
‘Grounding Kit
Fronius IG’ in the
DC junction box
15 - 30
(1)
(1)
(3)
(2)
