7
EN

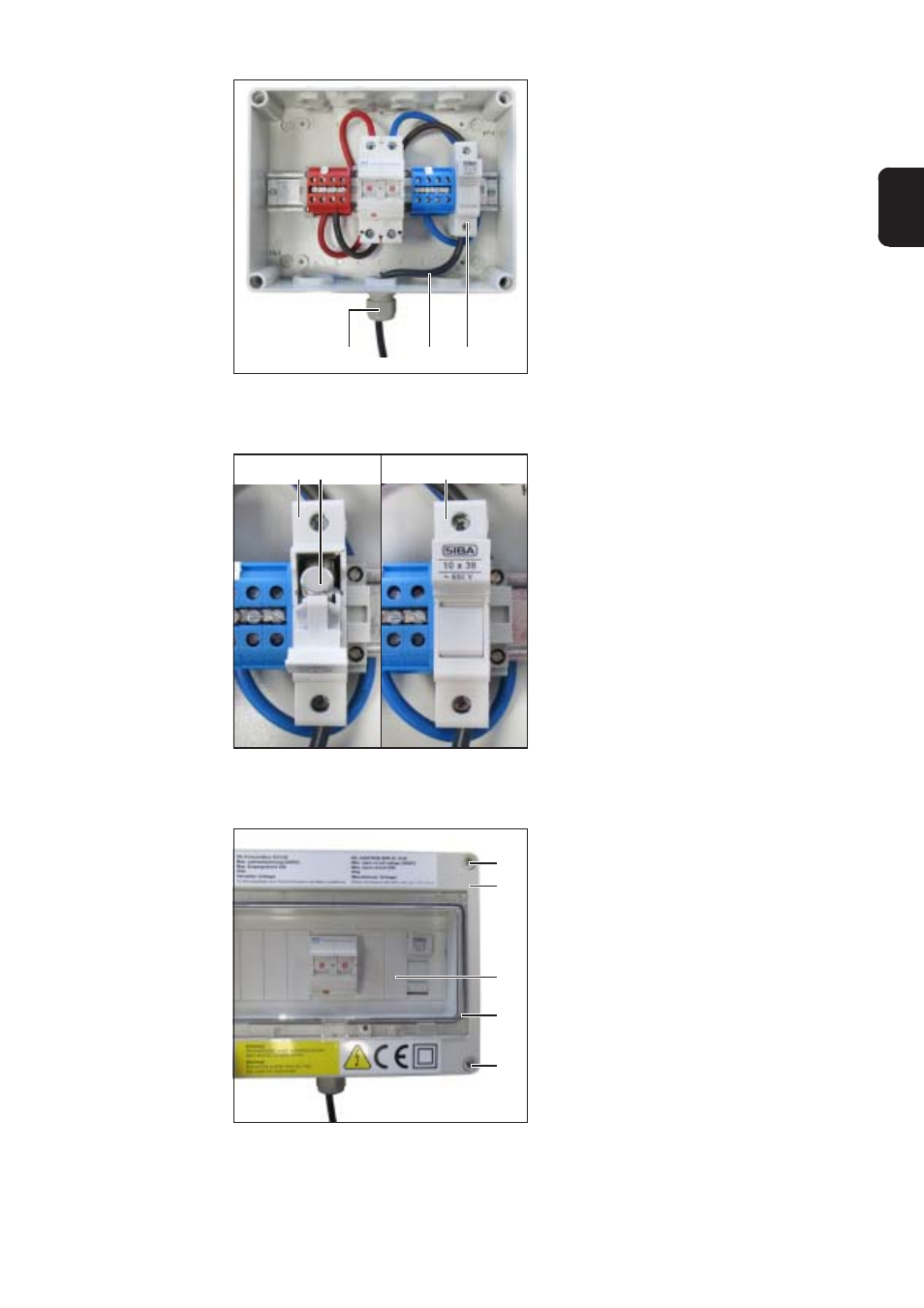

8. Pass grounding cable (9) with a
maximum cross section of 10 mm²
through the PG 16 screw joint (10)
The grounding cable is not included in
the ‘Grounding Kit Fronius IG’ installa-
tion set.
9. Connect the grounding cable (9) to the
fuse holder (4)
Tightening torque = 2 - 2.5 Nm
10. Fix the PG 16 screw joint (10)
(4) (9) (10)
Installing the
‘Grounding Kit
Fronius IG’ in the
DC junction box
15 - 30
(continued)
Connecting the grounding cable
Inserting a fuse
Inserting a fuse
1. Open fuse holder (1)
2. Insert fuse 1 A / 600 V DC (2)
Important! Fuses with a low nominal
current can also be used. However, the
fuse must be suitable for a voltage of
600 V DC.
3. Close fuse holder (1)
Finally... 1. Fit cover (2)
2. Adjust insulation cover (3) and put it
back in place
3. Fasten cover with the four cover
screws (1)
4. Close the transparent hinged cover (4)
Fitting the cover
(1) (2) (1)
(1)
(4)
(3)
(2)
(1)
