Guntermann & Drunck GmbH
Operation Instructions Video-Splitter 2
plus
1
Description
The
Video-Splitter 2
plus
is an activ interface – multiplier for analog video
signals. The
Video-Splitter 2
plus
allows the transmission of video signals over
larger distances as well as the distribution of video signals on two monitor.Via
cascading, the
Video-Splitter 2
plus
(VS-2
plus
) can operate a larger amount of
monitors.

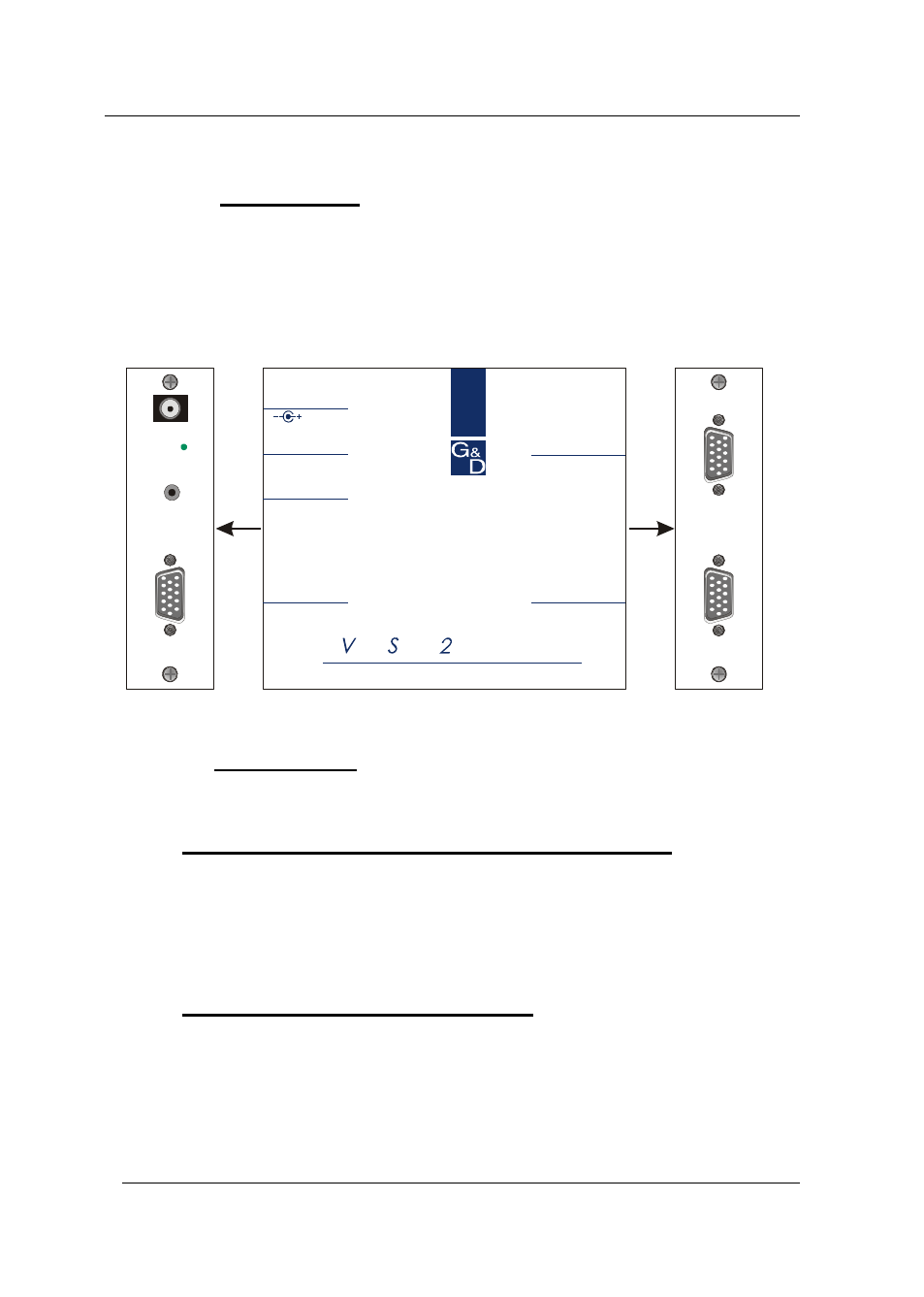

Monitor local
Monitor remote
VGA in
Active
Remote
tuning
Power +9V DC
250mA
ideo plitter
plus
2
Installation:
2.1 Connecting the VS-2
plus
with a computer
Disconnect the VGA-cable from the VGA port of your computer
Plug the VGA-2 Kabel on the VGA port of your computer
Plug the VGA-2 Kabel in the port
VGAin
e
of the VS-2
plus
2.2 Connecting the local monitor
Connect the cable of your monitor with the port
Monitor local
f
of the VS-
2
plus
. Here the DDC information of the connected monitor will be asked.
page 4
