Guntermann & Drunck GmbH Operation Instructions Video-Splitter 2 plus
4 Getting started
After you have set up all connections between the VS-2
plus
and the monitors
(local and remote) and the VGA-port of your computer, please proceed as
follows:
ƒ Connect the Power Supply 15D3-09MP (1,7 / +9V DC) with the VS-
2
plus
(A green LED on the CPU-side indicates, if a correct power supply
has been established)
ƒ Switch on monitor
ƒ Switch on CPU
5 Tuning the amplifiying of the remote monitor

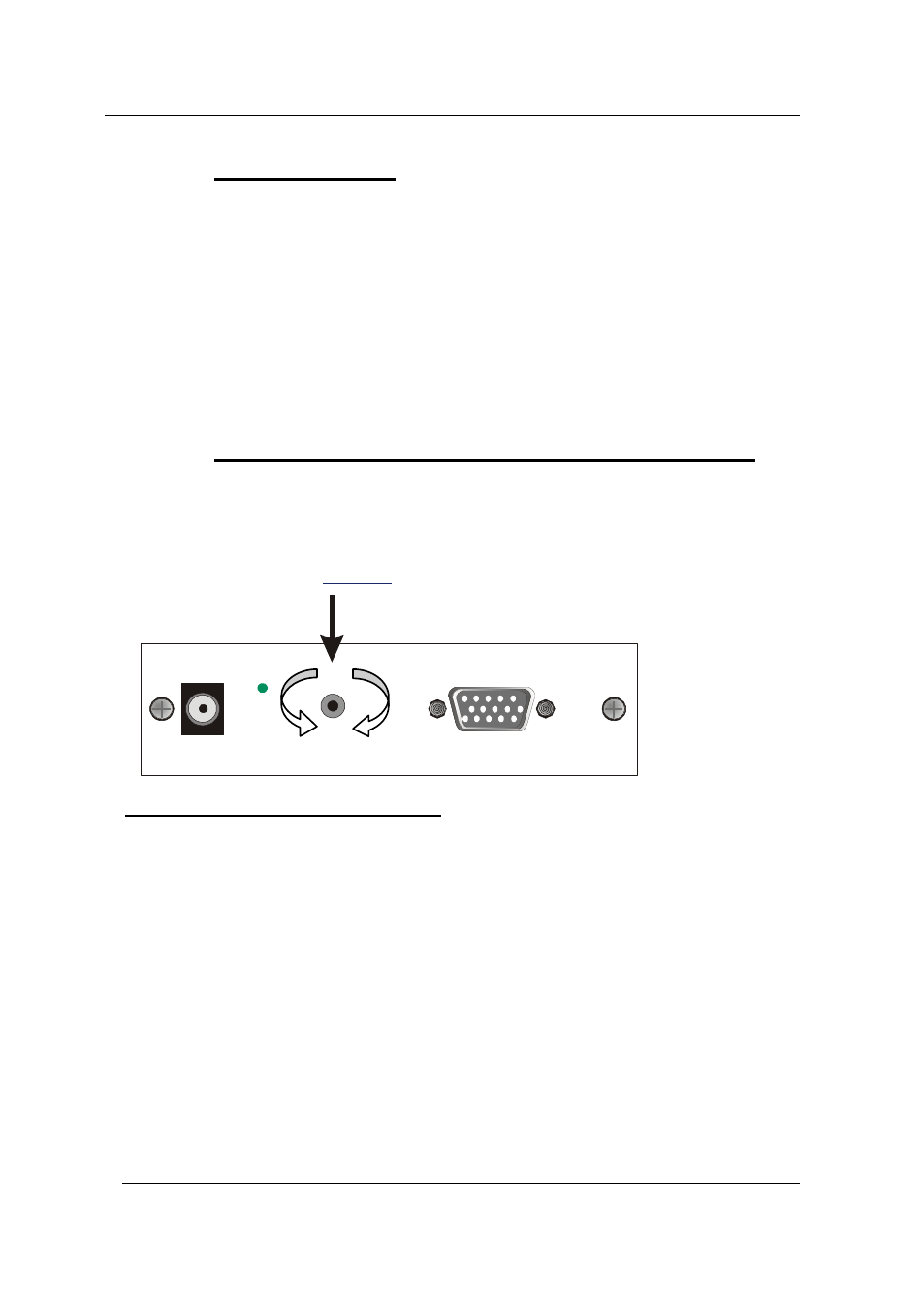

Over a regulator
d
the video amplifiying of the remote monitor can be
adjusted (remote tuning).
Remote
tuning
Mode of operation of the regulator:
Turn left (anti-clockwise)
Ö Lower amplifying (short cable)
Turn right (clockwise)
Ö higher amplifying (long cable)
Since the needed amplifying depends on various parameter, no guideline can
exactly be given. The best picture can be tuned by appropriate turning of the
regulator.
If you do the installation by yourself, optimize the picture before installing the
cable, since you cannot tune a view the remote monitor at the same time.
page 6
