24

(ill. 25)

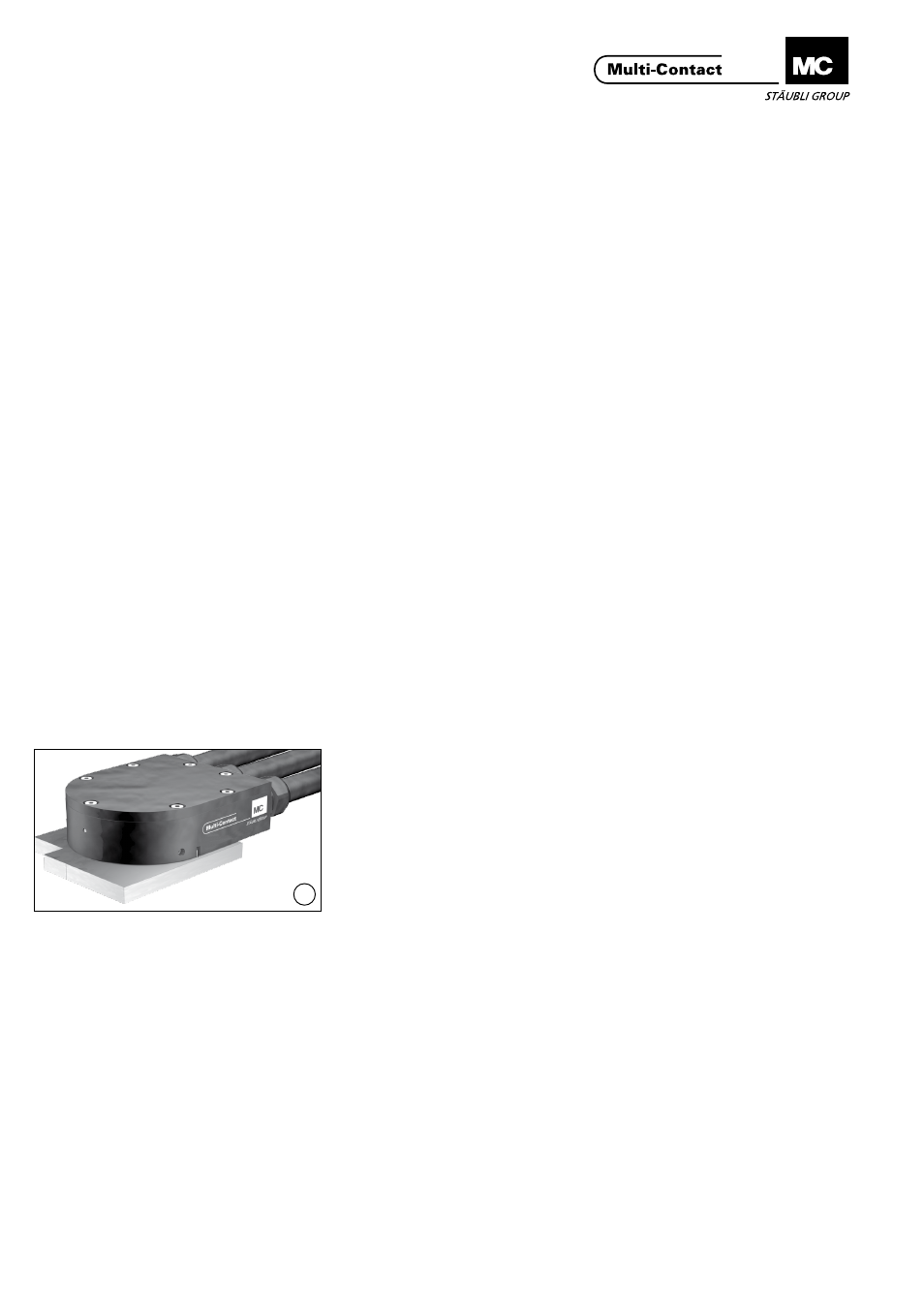

Steckverbinder FL3 von der Seite in

die Platte einschieben und hierbei die

Zentrierstifte beachten (ill. 24).

Vorderteil der Montageplatte wieder

einsetzen, danach Zylinderschrauben

M4 wieder anziehen (2 Nm).

(ill. 25)

Push the FL3 connector into the plate

from the side, observing the position

of the centering pins (ill. 24). Replace

front part of the mounting plate and

tighten cylindrical-headed bolts M4

(2 Nm).

Kontrolle „Schwimmender
Einbau“

Control „floating mounting“

(ill. 26)

Nach der Montage muss sich das

Steckverbindergehäuse im Plattenaus-

schnitt leicht bewegen lassen, es darf

keinesfalls festsitzen.

(ill. 26)

After installation the plug connector

housing must be slightly movable in

the plate opening. It should not be

fixed tight.

Bohrplan

Drilling plan

(ill. 24)

Montageplatte nach Bohrplan fertigen.

Es müssen 2 Zentrierstifte (Z) eingesetzt werden. Diese müs-

sen mindestend 4 mm, maximal 6 mm aus der Platte stehen.

(ill. 24)

Make mounting plate in accordance with drilling plan.

2 centering pins (Z) must be inserted. These must protrude at

least 4 mm, maximum 6 mm from the tool plate.
