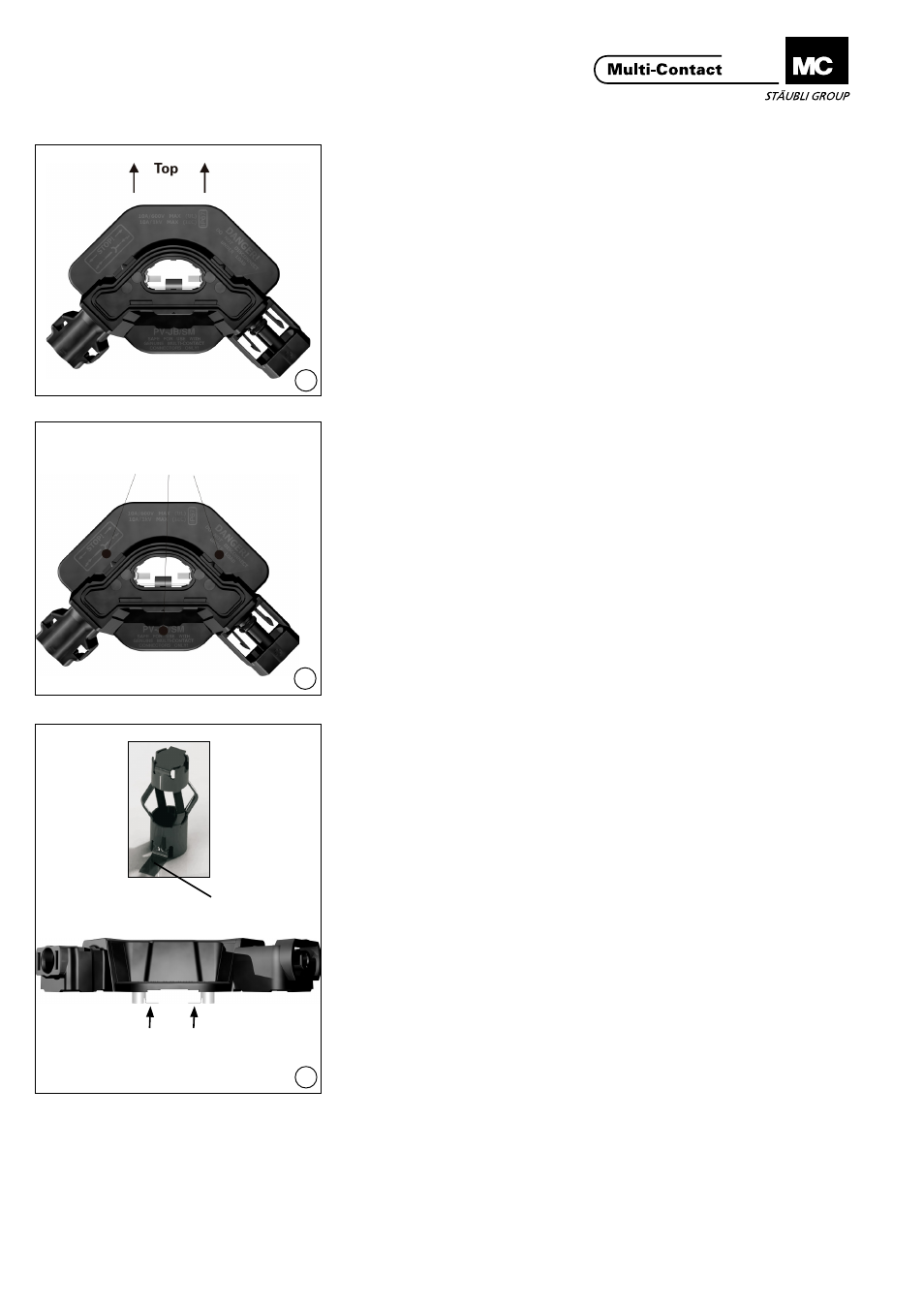

Positionierung der Anschluss-
dose

Position of the junction box

(ill. 9)

Die Anschlussdose muss so auf dem

PV-Modul angebracht werden dass,

wenn sie im Einsatz ist, die Anschluss-

steckeverbinderder Anschlussdose

nach unten zeigen, weg von der Ober-

seite des PV-Moduls, und die Appertur

der Solarzelle (max. Ø 50 mm, min.

Ø 40 mm) sich vollständig im inneren

Rand der Klebstelle befindet.

(ill. 9)

The junction box must be positioned

on the PV module so that when in

use, the connector outlets of the junc-

tion box point downward away from

the top of the PV module, and the

aperture hole of the solar panel (max�

Ø 50 mm / min. Ø 40 mm) is com-

pletely contained within the inner

edge of the adhesion area�

(ill. 10)

Nachdem die Anschlussdose korrekt

ausgerichtet ist, pressen Sie auf die

Flanschen (flanges) der Anschluss-

dose mit ca. 110 N senkrecht zu der

Zelle um sicherzustellen, dass die

Anschlussdose sicher und korrekt

befestigt ist�

Wenn sie richtig sitzen, werden die

Sicherheitsklammern um den Rand

der Klebestelle in direktem Kontakt mit

der Rückseite des PV-Moduls sein�

(ill. 10)

After the junction box is properly

oriented, press down on the flanges

of the junction box with approximately

110 N perpendicular to the panel to

ensure that the junction box is se-

curely and properly attached�

When properly seated, the stand-off

cleats arranged around the perimeter

of adhesion pad will be in direct con-

tact with the back of the PV module�

(ill. 11)

Wenn korrekt ausgerichtet, werden

alle Oberfläche der Unterseite der

Lötstellen in Kontakt sein mit dem PV

Flachbandleiter und die Lötlasche wird

sich parallel zu den Flachbandleiter

befinden, und kein Teil der Öffnung

der Solarzelle darf ausserhalb der

Klebestelle liegen�

(ill. 11)

When aligned properly all surfaces of

the bottom of the solder tabs will be

in contact with the PV output bus rib-

bon and the solder flap will be parallel

with the bus ribbons, and no part of

the solar panel’s aperture hole will lie

outside of the adhesive path�

Hier drucken

Press here

Lötlasche

Solder tab

Lötlaschen parallel zu Flachbandleiter

Solder tabs parallel to bus
