KTM FAHRGESTELL 400/620 - Handbuch (Seite 17)

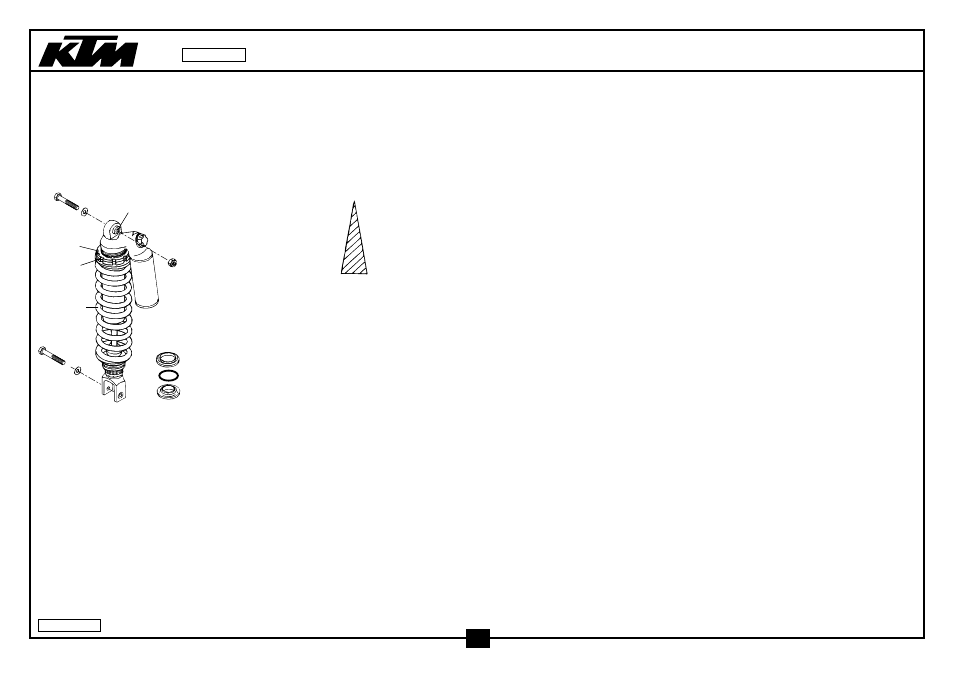

FEDERBEIN WP SHOCK ABSORBER WP 400/620 ‘99
1
3
10
11
12
14
15
16
16
17
20
7
8
FEDER / SPRING / RESSORT
Weich / soft / douce
Hart / hard / dure
54-260
57-260
60-260
63-260
66-260
70-260
99-583.04.2
15
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1* 0118.T705 MONOSHOCK WP „0118T705“ SC ‘99 MONOSHOCK WP „0118T705“ SC ‘99 1
3 583.04.011.054 FEDER WP 54-260 SPRING WP 54-260 X
3 583.04.011.057 FEDER WP 57-260 SPRING WP 57-260 X
3 583.04.011.060 FEDER WP 60-260 SPRING WP 60-260 X
3 583.04.011.063 FEDER WP 63-260 SPRING WP 63-260 1
3 583.04.011.066 FEDER WP 66-260 SPRING WP 66-260 X
3 583.04.011.070 FEDER WP 70-260 SPRING WP 70-260 X
7 542.04.109.000 KONTERMUTTER COUNTER NUT 1
8 542.04.009.000 EINSTELLMUTTER ADJUSTING NUT 1
10 583.04.017.000 RING FÜR MONOSHOCK RING FOR SHOCK ABSORBER 1
11 583.04.090.000 O-RING 32 X 8 O-RING 32 X 8 1
12 583.04.018.000 O-RING TRÄGER 14MM HOCH O-RING CARRIER 14MM HIGH 1
14 565.03.086.000 SONDERSCHRAUBE M10X47 10.9 SPECIAL SCREW M10X47 10.9 1
15 565.03.093.000 SONDERSCHRAUBE M10X55 10.9 SPECIAL SCREW M10X55 10.9 1
16 0125 100003 UNTERLEGSCHEIBE DIN0125-A10,5 WASHER DIN0125-A10,5 2
17 543.10.086.100 SS.MUTTER M10 CU SW=14 SELF LOCKING NUT M10 CU WS=14 1
20 542.04.020.100 BUCHSE KPL. D=24MM B=24MM BUSHING CPL. D=24MM B=24MM 1
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
99-583.04.6
