Operation Instructions | HoE 1-00 | HDMI over Ethernet
6 2015-03-14 | © AXING AG | Swizzerland | Technical data are subject to change, errors and omissions excepted
2. Installation
 Switch off all devices before installation.
1. Use a HDMI cable to connect the output of the HDMI source (Blu-ray player, Media Player etc.) to the HDMI
input (4) of the transmitter HoE 1-02.
2. Connect the IR connection cable with the black plug to the IR connection (3) of the transmitter.
3. Attach the IR transmitter before the IR receiver of the HDMI source. Use the double-sided adhesive tape of
the IR transmitted.
4. Use a HDMI cable to connect the HDMI output (4) of the receiver to the HDMI input of the HDTV television
sets.
5. Connect the IR connection cable with the red plug to the IR connection (3) of the receiver (optional).
6. Connect the Ethernet connections of the HoE 1-01 receiver and HoE 1-02 transmitter to the Ethernet switch.
7. Connect the plug-in power supply unit to the transmitter and receiver and switch on all devices.
 Configure your Ethernet management switch in such a way that functionally connected transmitters and
receivers work in a separate closed VLAN respectively.

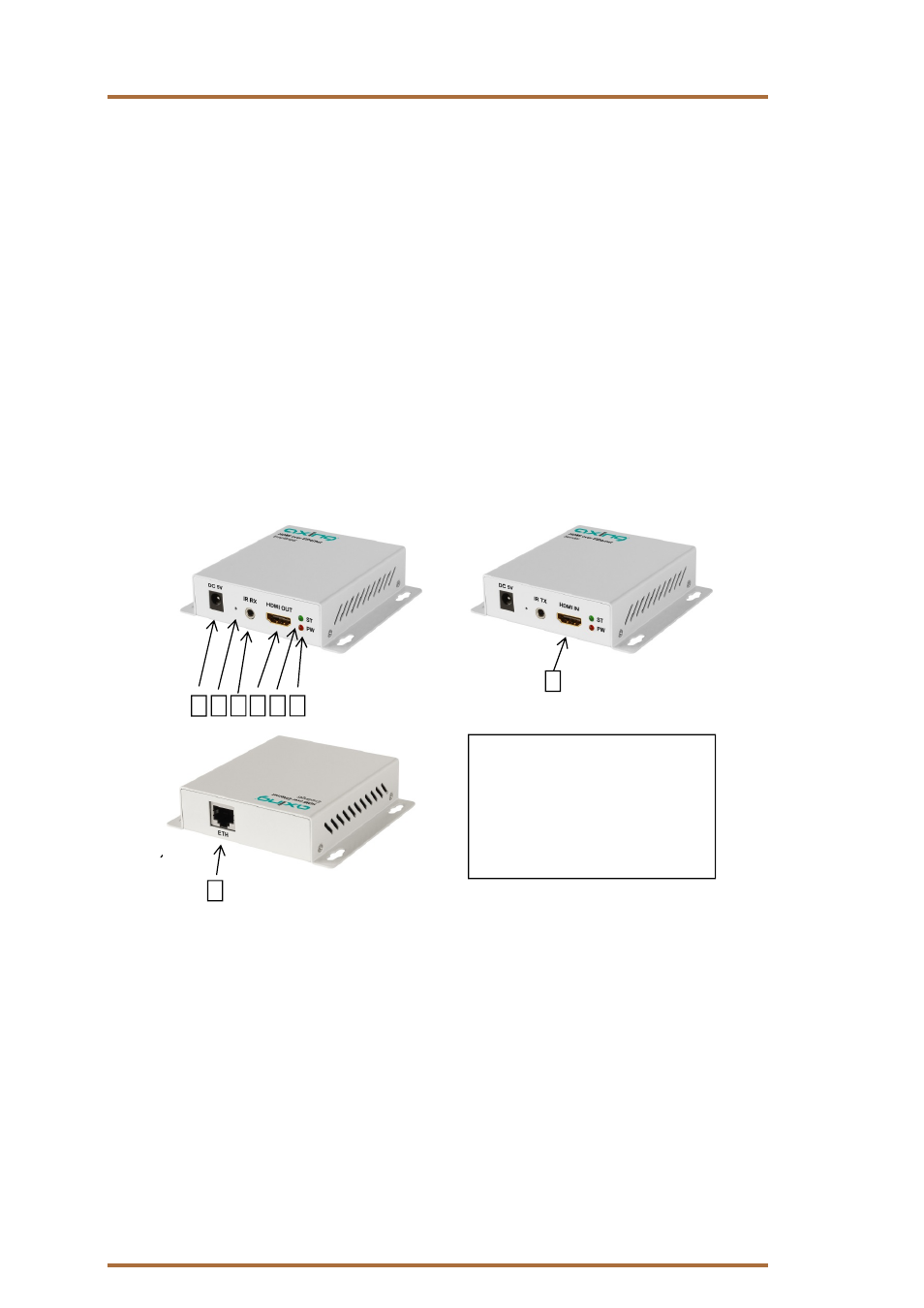

1. DC connection
2. Reset
3. IR TX/IR RX
4. HDMI port
5. Data traffic status
6. Power LED
7. Ethernet RJ 45 port
7
1 2 3 5 6 4
4
