Min 60 mm Min 60 mm
Min 20 mm
Min 20 mm
136 mm
196 mm
min 320 mm
min 155 mm
115 mm
8,5 mm
76 mm
14
GB

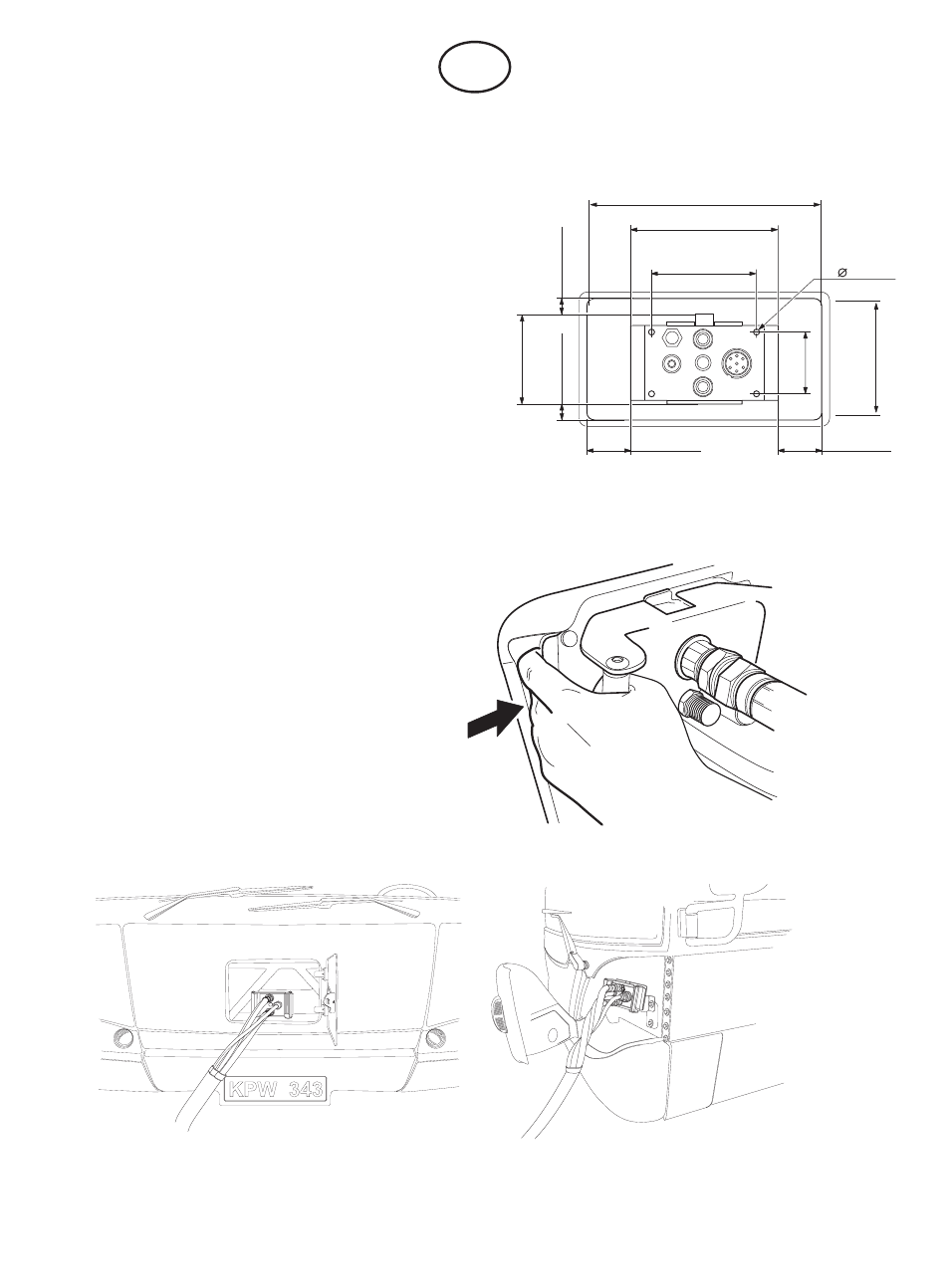

Bus plate installation dimensions
Good positioning; ensure good ergonomics while
working
There must be
enough room
for your fingers
Fit the plate to the vehicle
using the four attachment points (Ø 8.5 mm)
as shown in the diagram, while ensuring there
is enough room around the nipple plate to
allow easy connection.
► 60 mm on both sides
► 20 mm above and below the plate
Important: the hole in the bus
must be at least 320x155 mm
2.3 Ramp plate, 16 933 0098
Install the ramp plate on a firm base which
allows good access. The attachment points
are the same as those on the bus plate,
16 933 0097.
Remember that you need a comfortable
working height and that you should be able
to stand right in front of the ramp plate when
“parking” the recirculation hose plate.
Remember that there must be no sharp
edges near the handles on either side.
The distance from the nipple plate to the
front edge of the bus must be kept to
the very minimum.
For further QUESTIONS & ANSWERS, please go to www.cejn.com/P8
