6. SPARE PARTS LIST
Hose plate 16 933 0096
16 567 1240 Coupling, water, G 1/2” inside, for 3 mm plate
16 935 1149 Coupling, air, CEJN 320, hose 3/8”, for 3 mm plate
16 933 4900 Electrics connector, 7-pin, female
06 933 5100 Plastic housing, electrics connector
06 933 4100 Rear assembly, electrics connector, bus and hose plate
06 933 7035 Guide pin, plastic
06 933 0804 Nut, M20, for guide pin
Bus plate 16 933 0097
16 567 6240 Nipple, water, G 1/2” inside, for 3 mm plate
16 935 1148 Nipple, air, G 1/4” (3/8” hose), for 3 mm plate
16 933 4950 Electrics connector, 7-pin, male
16 933 4960 Inductive sensor
06 933 2100 Plastic housing, electrics connector
06 933 4100 Rear assembly, electrics connector, bus and hose plate
06 933 0700 Guide bushing, bus and ramp plate
06 933 0806 Nut, M22, for guide bushing
Ramp plate 16 933 0098
06 933 2101 Electrics connector, ramp plate
Spare parts common to hose, bus and ramp plate
09 324 2606 Locking ring SGA 16 – stainless steel
09 933 2603 Locking ring SGA 23 – stainless steel
06 933 2611 Locking ring SGA 28 – stainless steel
06 933 2610 Locking ring SGA 32 – stainless steel
06 933 2612 Locking ring SGA 42 – stainless steel
Miscellaneous
16 933 0099 Grease gun c/w grease nipples and grease
06 000 8562 Grease for 16 933 0099, 400 g cartridge

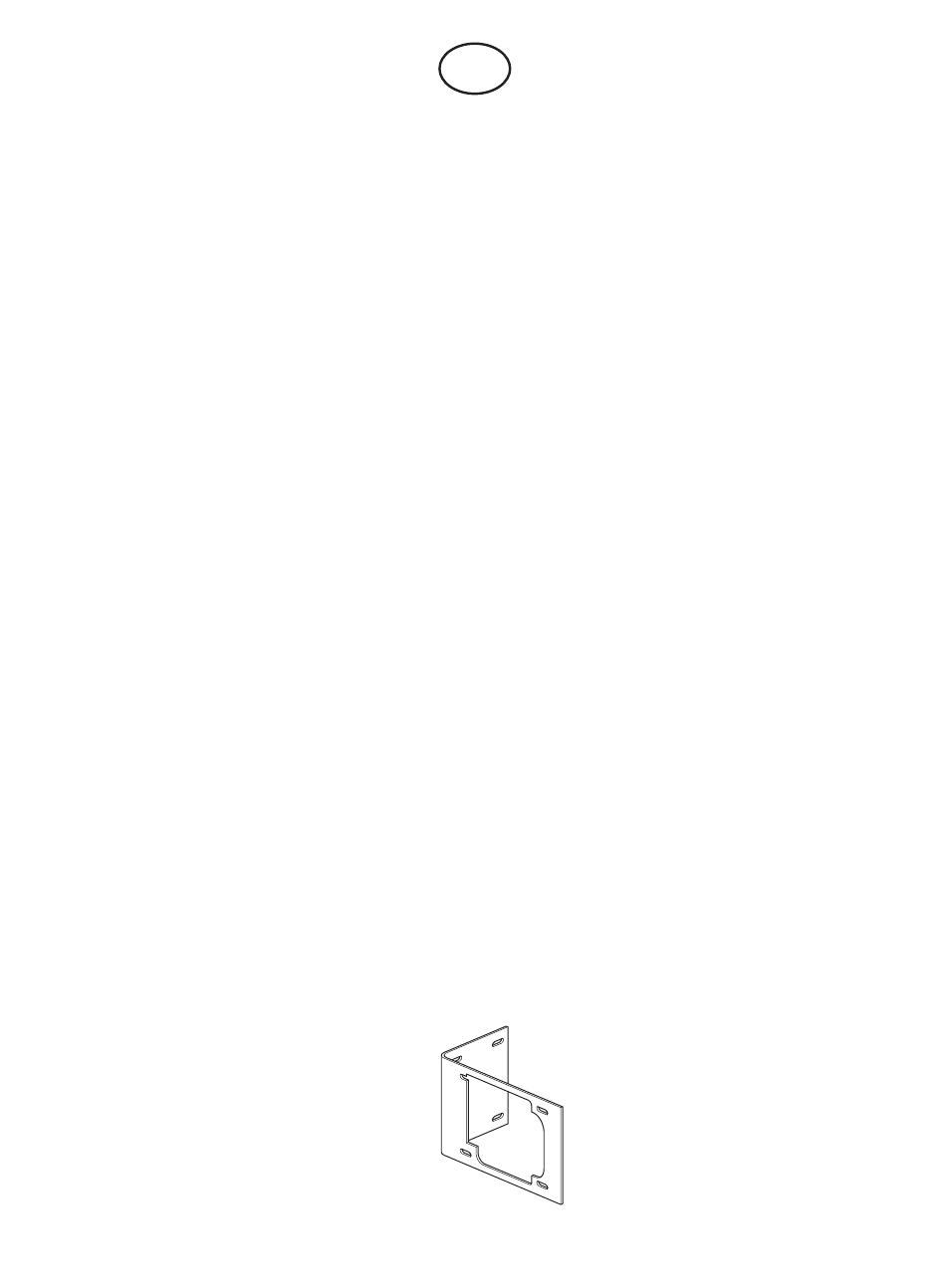

06 933 6601 Base plate, bus plate, L plate 230x140x120 mm
16 933 4910 Hose holder/torque limiter, hose plate
Base plate, for bus plate
16 933 0097 CEJN No. 06 933 6601
