KLING & FREITAG K&F SWi 118E - Handbuch (Seite 43)

Benutzerhandbuch K&F Subwoofer Systeme der ‚SW’ Serie
KLING & FREITAG GMBH ©1998 - 2015 Version 5.1, 29.05.2015 Seite 43 von 43

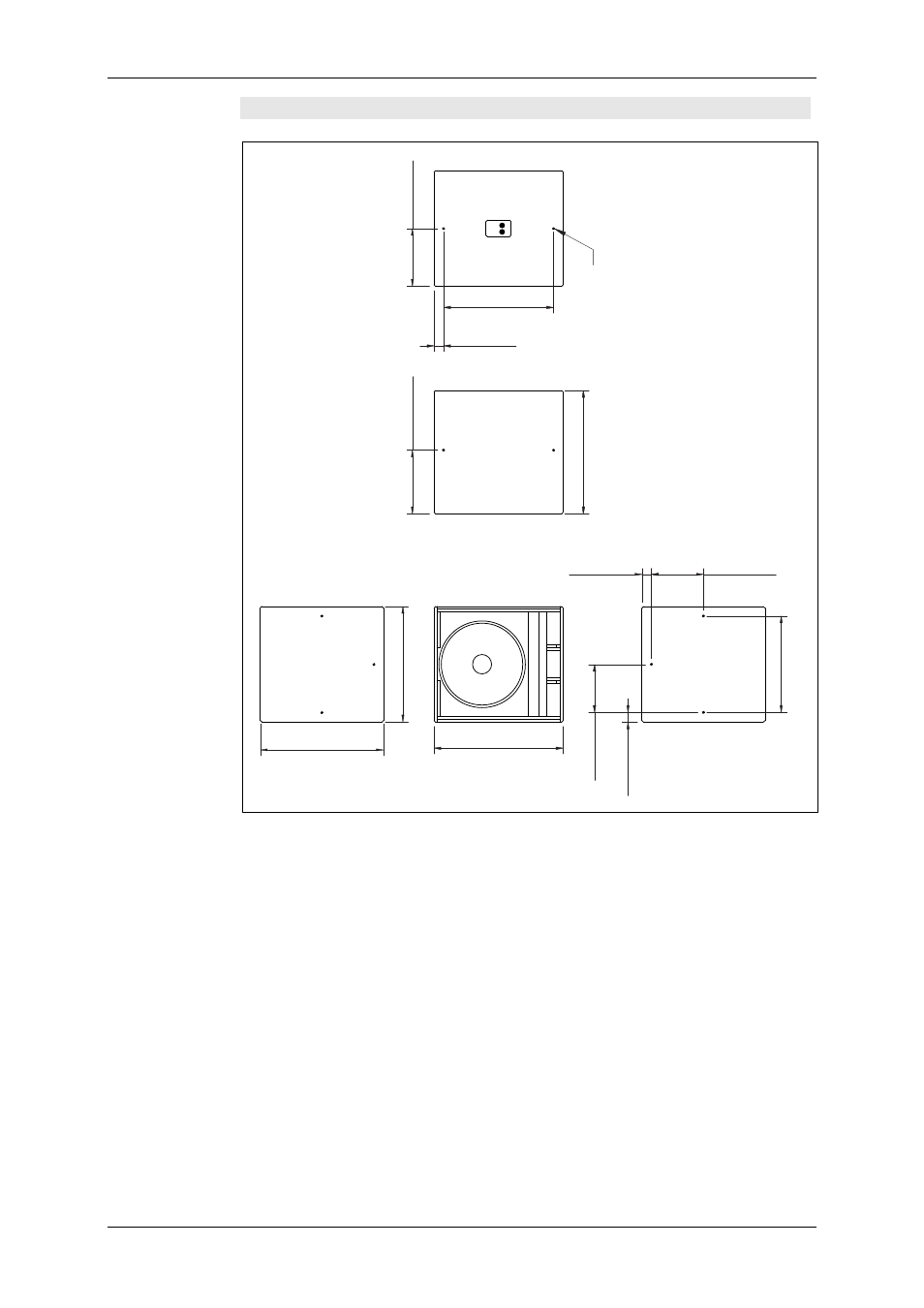

15.6 SWi 118E
64 0 mm
[2 5.1 96 "]
640 mm
[25.196"]
57 2.4 mm
[2 2.5 34 "]
600 mm
[23.621"]
67 2 mm
[2 6.4 56 "]
49 .8 mm
[1 .9 61 "]
330 mm
[12.992"]
500.4 mm [19.701"]
250.2 mm [9.851"]
49.8 mm [1.960"]
49 .8 mm
[1 .9 61 "]
27 0.2 mm
[1 0.6 37 "]
300 mm
[11.811"]
Flugpunkte,
Innengewinde M12
