Connecting the Fronius String Control 100/12 to the
Inverter
Safety
Preparation
DC cable 'OUT'
Connecting the
Fronius String
Control 100/12 to

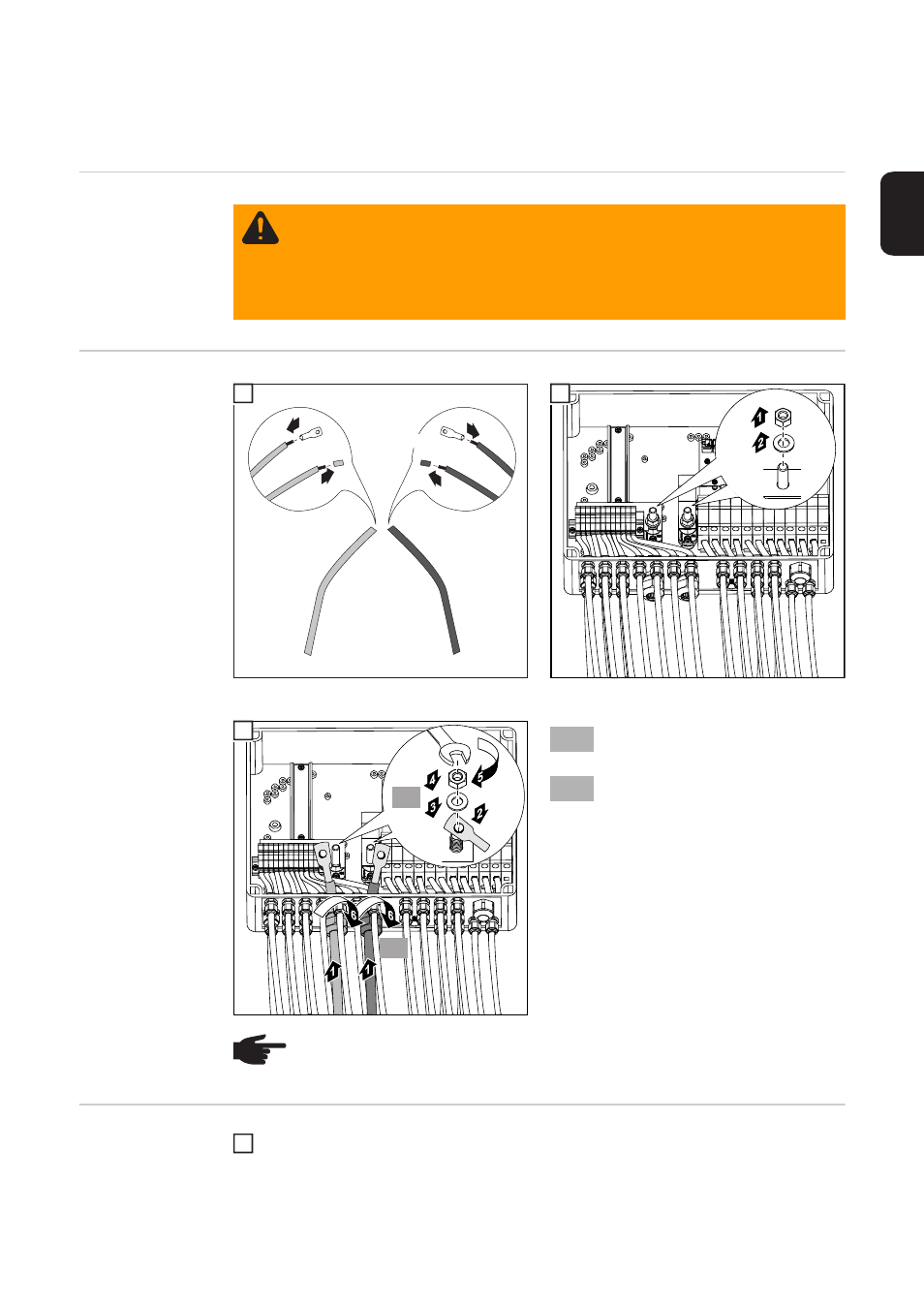

the Inverter Connect the DC cable 'OUT' to the inverter as per the inverter operating instructions
WARNING! An electric shock can be fatal. Danger from DC voltage from solar
modules.
-
Make sure that the input and output sides in front of the device are not
charged before connecting anything.
- Any and all connections should only be carried out by qualified electricians.
- Follow the safety rules in these operating instructions.
1
2
M12
3
4
M12 M12
1 2
(A)
(B)
3
(A) Tightening torque 28 Nm
(B) Tightening torque 6 Nm
NOTE! Label the DC cable 'OUT' according to its designated polarity.
