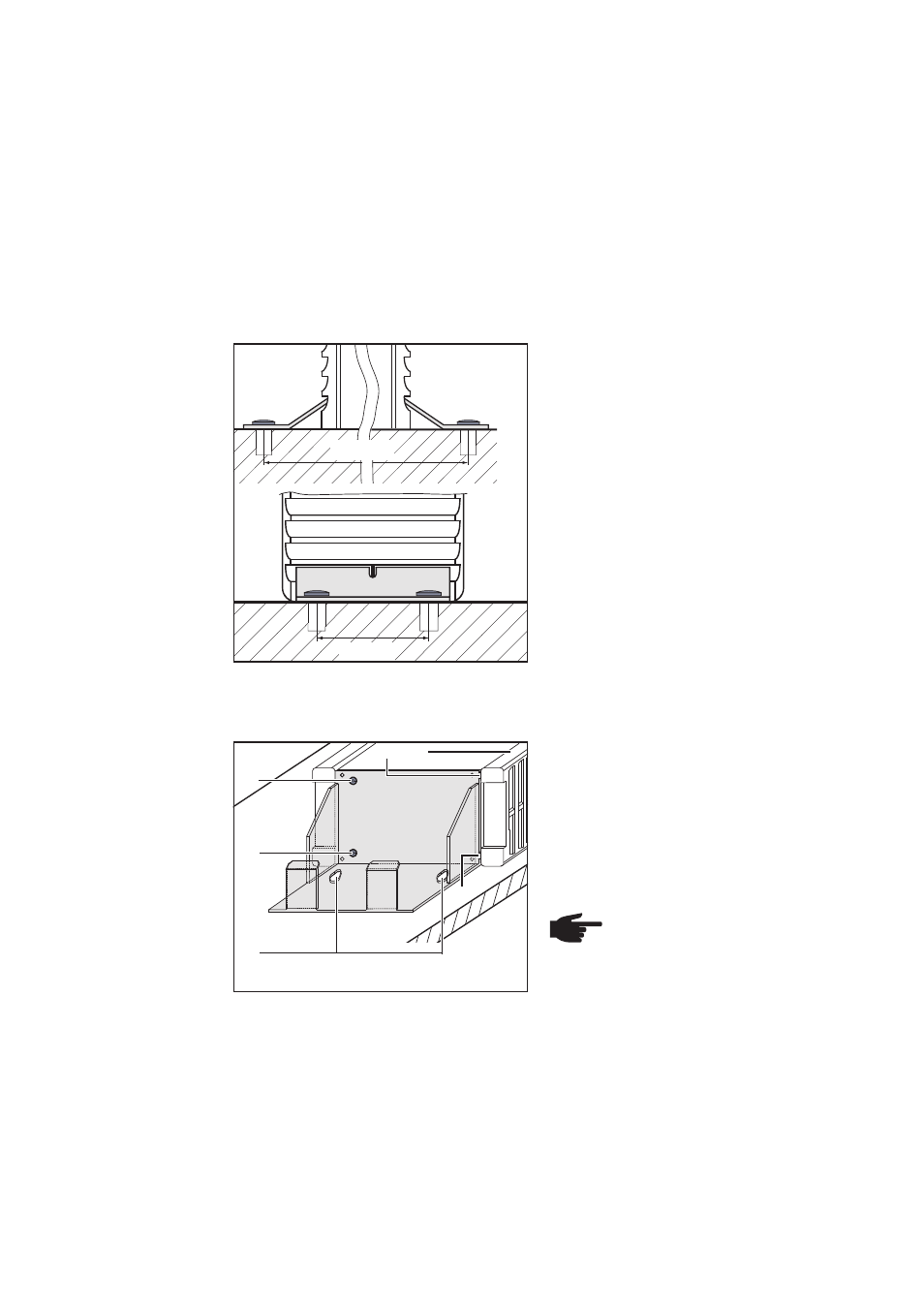

Fig. 2 Fitting to the floor
370 mm
42 mm
Fit the power device to the wall using the
optional wall bracket:
1.
Place the power device onto the
bracket (insert wall bracket lug (1) into
slot on the plastic front panel (2))
2. Fasten the power device to the
bracket using the two screws supplied
(3) (diameter 3.5 x 9.5 mm)
NOTE! If fixing to the wall, please
note the weight of the charger.
Only fix to a wall that is suitable
to this purpose.
3. The bracket is fitted using suitable
dowels and screws at the cut-outs (4)
(3)
(3)
(4)
(2) (1)
(1)
Fitting options
Fitting to the
floor Fit the power device to the floor using the
optional fitting brackets:
1.
Insert the fitting bracket into the left
and right-hand sides of the ventilation
grille on the power device’s front
panel, and do the same on the rear
panel
2. Mark the location of the holes on the
mounting surface (see diagram for
measurements)
3. Drill holes
4. Select the most suitable screws for
fastening the power device according
to the nature of the mounting surface
(diameter 5 mm)
5. Fasten power device to the mounting
surface using fitting brackets, each
with two screws
Fig. 3 Mounting on the wall
Mounting on the
wall
Important! Observe minimum clearances for ventilation purposes. Ensure an adequate
supply of fresh air. To ensure an adequate supply of fresh air, leave a minimum gap of
50 mm to the left and right of the cooling vents. Minimum clea-
rances if the
charger is fitted
to the floor or
mounted on the
wall
